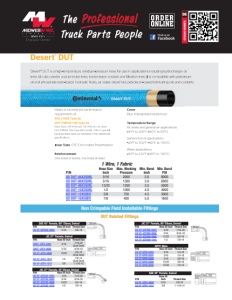

CATALOG NUMBER 06 DUT Related Fittings Non Crimpable Field Installable Fittings 1 Wire, 1 Fabric P/N Hose Size Inch Max. Working Pressure Min. Bend Inch Min. Burst PSI GX DUT-04X250RL 3/16 2000 2.0 8000 GX DUT-06X250RL 5/16 1500 3.0 6000 GX DUT-08X250RL 13/32 1250 3.5 5000 GX DUT-10X250RL 1/2 1000 4.0 4000 GX DUT-12X50BX 5/8 750 4.5 3000 GX DUT-16X50BX 7/8 400 5.0 1600 SAE 45° Female, 90° Elbow, Swivel P/N Hose ID Inch Thread Size GX UT-SFFX90-0606 5/16 5/8-18 JIC 37° Female, 90° Elbow, Swivel P/N Hose ID Inch Thread Size GX UT-JCFX90-0404 3/16 7/16-20 GX UT-JCFX90-0606 5/16 9/16-18 GX UT-JCFX90-0808 13/32 3/4-16 GX UT-JCFX90-1010 1/2 7/8-14 JIC 37° Female, Swivel P/N Hose ID Inch Thread Size GXUT-JCFX-0404 3/16 7/16-20 (Dual Seat) GXUT-JCFX-0606 5/16 9/16-18 GX UT-JCFX-0808 13/32 3/4-16 (Dual Seat) GX UT-JCFX-1010 1/2 7/8-14 (Dual Seat) GX UT-JCFX-1212 5/8 1 1/16-12 NPTF, Male P/N Hose ID Inch Thread Size GX UT-NPM-0404 3/16 1/4-18 GX UT-NPM-0604 5/16 1/4-18 GX UT-NPM-0606 5/16 3/8-18 GX UT-NPM-0806 13/32 3/8-18 GX UT-NPM-0808 13/32 1/2-14 JIC 37° Female, 45° Elbow, Swivel P/N Hose ID Inch Thread Size GX UT-JCFX45-0404 3/16 7/16-20 GX UT-JCFX45-0606 5/16 9/16-18 GX UT-JCFX45-0808 13/32 3/4-16 GX UT-JCFX45-1010 1/2 7/8-14 SAE 45° Female, Swivel P/N Hose ID Inch Thread Size GX UT-SFFX-0606 5/16 5/8-18 GX UT-SFFX-1212 5/8 1 1/16-14
MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI June 3, 2026 (06Dut Hose and fitting flyer) P/N Hose Size Inch Max. Working Pressure Min. Bend Inch Min. Burst PSI GXDR5-04X250RL 3/16 3000 3.0 12000 GX DR5-05X50BX 1/4 3000 3.4 12000 GXDR5-06X250RL 5/16 2250 4.0 9000 GXDR5-08X250RL 13/32 2000 4.5 8000 GXDR5-10X250RL 1/2 1750 5.5 7000 GXDR5-12X250RL 5/8 1500 6.5 6000 GX DR5-16X50BX 7/8 800 7.4 3200 Desert™ DR5 Related Fittings Non Crimpable Field Installable Fittings Crimpable Fittings Available - Contact Salesman JIC 37° Female, Swivel P/N Hose ID Inch Thread Size GX FG-JCFX-0404 3/16 7/16-20 GX FG-JCFX-0505 1/4 1/2-20 GX FG-JCFX-0606 5/16 9/16-18 GX FG-JCFX-0808 13/32 3/4-16 GX FG-JCFX-1010 1/2 7/8-14 GX FG-JCFX-1212 5/8 1 1/16-12 GX FG-JCFX-1616 7/8 1 5/16-12 JIC 37°, Male P/N Hose ID Inch Thread Size GX FG-JCM-0404 3/16 7/16-20 GX FG-JCM-0606 5/16 9/16-18 GX FG-JCM-0808 13/32 3/4-16 GX FG-JCM-1010 1/2 7/8-14 GX FG-JCM-1212 5/8 1 1/16-12 JIC 37° Female 45° Elbow, Swivel P/N Hose ID Inch Thread Size GX FG-JCFX45-0404 3/16 7/16-20 GXFG-JCFX45-0606 5/16 9/16-18 GX FG-JCFX45-0808 13/32 3/4-16 SAE 45°, Male P/N Hose ID Inch Thread Size GX FG-SFM-0404 3/16 7/16-20 GX FG-SFM-0606 5/16 5/8-18 GX FG-SFM-0808 13/32 3/4-16 GX FG-SFM-1010 1/2 7/8-14 GX FG-SFM-1212 5/8 1 1/16-14 JIC 37° Female, 90° Elbow, Swivel P/N Hose ID Inch Thread Size GX FG-JCFX90-0404 3/16 7/16-20 GX FG-JCFX90-0505 1/4 1/2-20 GX FG-JCFX90-0606 5/16 9/16-18 GX FG-JCFX90-0808 13/32 3/4-16 GX FG-JCFX90-1010 1/2 7/8-14 GX FG-JCFX90-1212 5/8 1 1/16-12 NPTF, Male P/N Hose ID Inch Thread Size GX FG-NPM-0402 3/16 1/8-27 GX FG-NPM-0404 3/16 1/4-18 GX FG-NPM-0504 1/4 1/4-18 GX FG-NPM-0604 5/16 1/4-18 GX FG-NPM-0606 5/16 3/8-18 GX FG-NPM-0806 13/32 3/8-18 GX FG-NPM-0808 13/32 1/2-14 GX FG-NPM-1008 1/2 1/4-14 GX FG-NPM-1012 1/2 3/4-14 GX FG-NPM-1212 5/8 3/4-14 GX-FG-NPM-1616 7/8 1-11 1/2 SAE 45°, Female, Swivel P/N Hose ID Inch Thread Size GX FG-SFFX-0404 3/16 7/16-20 GX FG-SFFX-0606 5/16 5/8-18 GX FG-SFFX-0808 13/32 3/4-16 GX FG-SFFX-1010 1/2 7/8-14 GX FG-SFFX-1212 5/5 1 1/16-14
