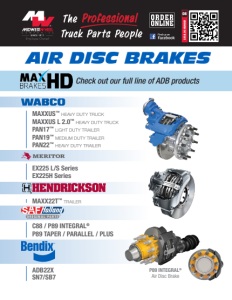

CATALOG NUMBER 08 P89 INTEGRAL® Air Disc Brake Check out our full line of ADB products AIR DISC BRAKES ADB22X SN7/SB7 MAXXUS™ HEAVY DUTY TRUCK MAXXUS L 2.0™ HEAVY DUTY TRUCK PAN17™ LIGHT DUTY TRAILER PAN19™ MEDIUM DUTY TRAILER PAN22™ HEAVY DUTY TRAILER C88 / P89 INTEGRAL® P89 TAPER / PARALLEL / PLUS EX225 L/S Series EX225H Series MAXX22T™ TRAILER
2 ADB HUB/ROTOR ASSEMBLIES. ........................................................................................................................ 27-29 AIR DISC BRAKE TOOLS..................................................................................................................................... 30-32 IDENTIFY YOUR BRAKE PLATFORM BY THE PAD RETAINER BAR. ............................................................................ 3 LOCATING PART NUMBER AND SERIAL NUMBER.................................................................................................. 3-4 AIR DISC ROTOR TYPE IDENTIFICATION....................................................................................................................4 CALIPER INFORMATION.............................................................................................................................................5 IDENTIFY YOUR AIR DISC BRAKE PLATFORM AND FIND RELATED PARTS............................................6 6 15/16" WIDTH PAD KITS Wabco PAN17 ..........................................................................................................FMSI# 1518...........................6 8 1/4" WIDTH PAD KITS Bendix ADB22X, ADB22X-V, ADB22X-LT | SK7 | SAF-Holland C88/P89 Integral .........FMSI# 1369...........................6 Wabco MAXX22T .....................................................................................................FMSI# 1777...........................7 Wabco PAN22 ..........................................................................................................FMSI# 1777...........................7 Wabco PAN19 ..........................................................................................................FMSI# 1438...........................7 Wabco MAXXUS .......................................................................................................FMSI# 2061...........................8 Wabco MAXXUS L 2.0 ..............................................................................................FMSI# 2588...........................8 8 7/16” WIDTH PAD KITS Bendix ST7 | SAF-Holland P89 TAPER / PARALLEL / PLUS ........................................FMSI# N/A..............................8 8 1/2" WIDTH PAD KITS Meritor EX225 L/S Series .........................................................................................FMSI# 1370...........................9 9 3/4" WIDTH PAD KITS Bendix SN7/SB7 ......................................................................................................FMSI# 1203...........................9 9 13/16" WIDTH PAD KITS Meritor EX225H Series (EX+, H2, H3, H4, H6) ...........................................................FMSI# 1311 / 1708................9 PAD KITS Bendix SN7/SB7 Transit/Coach ...............................................................................................................................11 Bendix ADB22X Truck/Trailer ............................................................................................................................12-13 Wabco MAXX22T™ Hendrickson Trailer - 22.5 Wheel Size........................................................................................14 Wabco MAXXUS™ Truck...........................................................................................................................................15 Wabco MAXXUS™ L 2.0 Heavy Duty Truck - Freightliner / Western Star....................................................................16 Wabco PAN17™ Light Duty Trailer - 17.5 Wheel Size.................................................................................................17 Wabco PAN19™ Medium Duty Trailer - 19.5, 22.5 Wheel Size...................................................................................18 Wabco PAN22™ Heavy Duty Truck/Trailer - 22.5 Wheel Size...............................................................................19-20 Meritor EX225H Series (EX+, H2, H3, H4, H6)....................................................................................................21-22 Meritor EX225 L/S Series Truck/Trailer.............................................................................................................. 23-24 SAF-Holland C88 / P89 INTEGRAL® Trailer Axle.......................................................................................................25 SAF-Holland P89 TAPER / PARALLEL / PLUS Trailer Axle........................................................................................26 PLATFORMS BRAKE CHAMBERS SERVICE CHAMBERS AND SPRING BRAKES. ..........................................................................................................10 TABLE OF CONTENTS
3 IDENTIFY YOUR BRAKE PLATFORM BY THE PAD RETAINER BAR LOCATING PART NUMBER AND SERIAL NUMBER Meritor™ Bendix™ Hendrickson™ & Wabco™ Flat Bolt-On Retainer Bar Cotter Pin Tubular Retainer Bar MERITOR ® EX+ SERIES Tag is located under adjuster boot Manufacturing Information Manufacturing Information Part Number Part Number Serial # Serial # Remove adjuster boot Exact placement varies Remove Protective Cap to left of bolt is Part Number engraved in metal plate. To right of bolt is Serial Number engraved in metal plate Protective Cap must be replaced.
4 LOCATING PART NUMBER AND SERIAL NUMBER, continued Part Number (If not this format, call with number) Model Metal Tag Metal Tag Metal Tag Part Number (If not this format, call with number.) Model 175 – PAN17 195 – PAN19 225 – PAN22 Model Casting AIR DISC ROTOR TYPE IDENTIFICATION UL-Type Bolt Lobes F Type Flat H Type Hat U-Type Round Bolt Flange
5 Short Pin Long Pin AIR DISC BRAKE CALIPER INFORMATION Axial vs Radial Axial – a mounting surface that is parallel to the rotor Radial – a mounting surface that is perpendicular (90º) to the rotor Some calipers have a radially mounted air chamber. If your caliper has a radial chamber (sits on top of the caliper) and is not on a transit bus, please refer to PB-1461. Calipers identified as Left or Right based on the location of their short or floating pin. In most cases, a left caliper will be used on the driver’s side of the vehicle. There are some exceptions where interference in the wheel well prevents this. Make sure you replace a left with a left and a right with a right. Short Pin Short Pin Long Pin Left Caliper - Driver Side - Type B Right Caliper - Passenger Side - Type A Axial Mount Radial Mount
6 8 1/4" WIDTH PAD KITS 6 15/16" WIDTH PAD KITS IDENTIFY YOUR AIR DISC BRAKE PLATFORM AND FIND RELATED PARTS Bendix ADB22X, ADB22X-V, ADB22X-LT SEE PAGE 12-13 FMSI# 1369 SK7 | SAF-Holland C88/P89 Integral SEE PAGE 25 Heavy Duty Truck/Trailer PAD KIT Description Application BW K297277 OEM Truck/Trailer - On Highway & Severe Service MAXP1369 Premium Aftermarket Truck/Trailer - On Highway BW K182237 Bendix Aftermarket Truck/Trailer - On Highway WABCO PAN17 FMSI# 1518 Light Duty Trailer - 17.5 Wheel Size PAD KIT Description Application WB 6401759522 OEM Trailer - On Highway MAXP1518 Premium Aftermarket Trailer - On Highway Use this method to identify your air disc brake platform and find related parts: 1. Measure the width of the brake pad. If you do not have a pad, measure the distance between the pad abutments. Turn to the page in this section that corresponds to the pad length. Now compare by height and shape. 2. Once you have identified the pad, turn to the page indicated for calipers, repair kits, and rotors for each platform. 4 3/8" 8 1/2" SEE PAGE 17
7 8 1/4" WIDTH PAD KITS, continued WABCO MAXX22T FMSI# 1777 Hendrickson Trailer - 22.5 Wheel Size PAD KIT Description Application WB 6402229352 OEM Trailer - On Highway MAXP1777HT Premium Aftermarket Trailer - On Highway WABCO PAN22 FMSI# 1777 Heavy Duty Truck/Trailer - 22.5 Wheel Size PAD KIT Description Application WB 6402259452 OEM Truck/Trailer - On Highway MAXP1777 Premium Aftermarket Truck/Trailer - On Highway SEE PAGE 14 SEE PAGE 19-20 PAD KIT Description Application WB 6401959542 OEM Trailer - On Highway WABCO PAN19 FMSI# 1438 Medium Duty Trailer - 19.5, 22.5 Wheel Size SEE PAGE 18
8 8 1/4" WIDTH PAD KITS, continued 8 7/16" WIDTH PAD KITS Bendix ST7 | SAF-Holland P89 TAPER/PARALLEL/PLUS FMSI# N/A ST7 Caliper Only SAF-Holland Trailer Axles PAD KIT Description Application BW K206710 OEM Trailer - On Highway MAXPST7P89 Premium Aftermarket Trailer - On Highway SEE PAGE 26 8 7/16” 4 1/4” 1 3/8” PAD KIT Description Application WB 6404219292 OEM Truck - On Highway MAXP2588 Premium Aftermarket Truck - On Highway MAXXUS L 2.0 FMSI# 2258 Truck WABCO MAXXUS FMSI# 2061 Truck PAD KIT Description Application WB 6403229632 OEM Truck - On Highway MAXP2061 Premium Aftermarket Truck - On Highway SEE PAGE 15 SEE PAGE 16 Note: Backplate - Patent Free Design Full Accessory Kit Available ACK057 Please contact your sales representative for more information WVA 29499 - MAXXUS GEN 2 Note: Drawings not to scale and are for illustatative purposes only ACP862 ACP863 ACP864 x4 x2 x2 Note: Backplate - Patent Free Design Full Accessory Kit Available ACK057 Please contact your sales representative for more information WVA 29499 - MAXXUS GEN 2 Note: Drawings not to scale and are for illustatative purposes only ACP862 ACP863 ACP864 x4 x2 x2 8 1/4” 1 5/8” 4 1/4” 4 1/4” 1 3/16” 8 1/4” Inner Outer
9 8 1/2" WIDTH PAD KITS Meritor EX225 L/S Series FMSI# 1370(K)/LB Heavy Duty Truck/Trailer PAD KIT Description Application FMSI RI KIT2252LCM7400 OEM - Mack/Volvo for 434mm rotor Truck - On Highway 1370 MAXP1370 Premium Aftermarket - Mack/Volvo for 434mm rotor Truck - On Highway RI KIT2252L2CG OEM - Unique L/R handed keyway notch Truck/Trailer - On Highway 1370K MAXP1370K Premium Aftermarket - Universal keyway notch Truck/Trailer - On Highway RI KIT2252L2DE Severe Service OEM - Mack/Volvo for 410mm rotor Truck - Off Highway / Military LB RI KIT2252LBM7400 OEM - Mack/Volvo for 410mm rotor Truck - On Highway SEE PAGE 23-24 9 13/16" WIDTH PAD KITS 9 3/4" WIDTH PAD KITS PAD KIT Description Application FMSI RI KIT2252H2CG OEM Transit/Bus 1311 RI KIT2252H2DD Severe Service OEM Refuse RI KIT2252HBMA9500 Severe Service OEM - ELSA225-3 Mack/Volvo Refuse 1708 MAXP1708VM Premium Aftermarket - ELSA225-3 Mack/Volvo Refuse Meritor EX225H Series (EX+, H2, H3, H4, H6)/ELSA225-3 FMSI# 1311 / 1708 Transit/Bus/Refuse Bendix SN7/SB7 FMSI# 1203 Transit/Refuse PAD KIT Description Application BW K243517 OEM Transit/Refuse SEE PAGE 11 SEE PAGE 21-22 1311 1708 4 3/16” KIT2252L2CG has a unique keyway (notch) in the bottom. MAXP1370K has universal keyway 4 3/8" 8 1/2" 4 3/8” MaxHD 3 13/16” LB 1370 1370K
10 SERVICE CHAMBERS BW K028039 Bendix - Type 14 ADB Service Chamber - 2.25" Stroke BW K028226 Bendix - Type 16 ADB Service Chamber - 2.25" Stroke PRLPLSC16.D Aftermarket - Type 16 ADB Service Chamber - 2.5" Stroke BW K028022 Bendix - Type 18 ADB Service Chamber - 2.5" Stroke PRLPLSC18.D Aftermarket - Type 18 ADB Service Chamber - 2.5" Stroke BW K028225 Bendix - Type 20 ADB Service Chamber - 2.5" Stroke PRLPLSC20.D Aftermarket - Type 20 ADB Service Chamber - 2.5" Stroke BW K028252 Bendix - Type 24 ADB Service Chamber - 2.5" Stroke PRLPLSC24.D Aftermarket - Type 24 ADB Service Chamber - 2.5" Stroke SPRING BRAKES - UNHANDED - ROUND PORTS, STANDARD STROKE BW K042457 Bendix 16/24 Chamber - 2.25" Stroke MAX1624D MaxHD 16/24 Chamber - 2.5" Stroke BW K132352 Bendix 18/24 Chamber - 2.25" Stroke MAX1824D MaxHD18/24 Chamber - 2.5" Stroke BW K041960 Bendix 20/24 Chamber - 2.5" Stroke MAX2024D MaxHD 20/24 Chamber - 2.5" Stroke PRLP2424.D Aftermartket 24/24 Chamber - 2.5” Stroke SPRING BRAKES - CLOCKED - SQUARE PORTS, STANDARD STROKE WB 9253470070 Wabco 18/24 Chamber Left Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253470080 Wabco 18/24 Chamber Right Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253800210 Wabco 20/24 Chamber Left Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253800220 Wabco 20/24 Chamber Right Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253840270 Wabco 16/24 Chamber Left Handed - Clocked 45 Degrees - 2.25" Stroke WB 9253840280 Wabco 16/24 Chamber Right Handed - Clocked 45 Degrees - 2.25" Stroke DIAPHRAGM PRLPL-AD-16 Type 16 - Service Chamber Only PRLPL-AD-18 Type 18 - Spring Brake Only PRLPL-AD-20 Type 20 - Spring Brake Only BRAKE CHAMBERS - Universal Across All ADB Platforms Right Handed - Clocked 45° ON RIGHT SIDE OF PORTS = RIGHT HANDED Left Handed - Clocked 45° ON LEFT SIDE OF PORTS = LEFT HANDED Unhanded PARALLEL WITH PORTS = UNHANDED
11 Bendix SN7/SB7 Transit/Refuse CALIPERS BW K003811 Left - Driver Side - Type B BW K003812 Right - Passenger Side - Type A FMSI# 1203 PAD KITS Description Application BW K243517 OEM Transit/Refuse ROTORS REPAIR KITS BW K109244 Guide Pin Kit BW K171274 Tappet Boot Kit BW K171275 Tappet Boot Kit HUB/ROTOR ASSEMBLIES - See Page 27-29 Application Nova Bus, MCI Drive Axle Prevost Front and Tag Axles Prevost Drive Axle P/N BW K021958 BW II37415N BW K021959 Type U-Type U-Type UL-Type Weight 76 lbs. / 35 kg 81 lbs. / 37 kg 99 lbs. / 45 kg Hole Count 10 10 10 Bolt Hole Diameter M16-1.5 M16-1.5 5/8"-18 ABS Tone Ring No No Cast-In Dimensions In mm In mm In mm Diameter (A) 16 - 15/16 430 17 - 3/32 434 17 - 3/32 434 Depth (B) 5 - 5/32 131 5 - 11/32 136 7 - 3/32 180 Pilot (C) 8 203 7 - 5/8 194 7 - 5/8 194 Bolt Circle (D) 9 - 1/4 235 8 - 21/32 220 9 - 27/32 250 Disc Thickness (E) 1 - 25/32 45 1 - 25/32 45 1 - 25/32 45 Min. Thickness 1 - 17/32 39 1 - 15/32 37 1 - 15/32 37 Application Prevost Front and Tag Axles P/N BW 802669 Type Hat Type Weight 78 lbs. / 36 kg Hole Count 14 Bolt Hole Diameter 0.59" ABS Tone Ring No Dimensions In mm Diameter (A) 17 432 Depth (B) 4 - 17/32 115 Pilot (C) 5 - 5/16 135 Bolt Circle (D) 6 - 1/2 165 Disc Thickness (E) 1 - 25/32 45 Min. Thickness 1 - 15/32 37 BW K021958 BW 802669
12 Bendix ADB22X Truck/Trailer CALIPERS MAXC-1369-PS-A New (MaxHD) Axial - Right - Passenger Side - Type A Steer and Drive Freightliner Pete/KW, Volvo/Mack, Navistar BX K147430X Reman MAXC-1369-DS-A New (MaxHD) Axial - Left - Driver Side - Type B BX K147429X Reman MAXC-1369-PS-V New (MaxHD) Vertical - Right - Passenger Side - Type A Steer and Drive Freightliner BX K147136X Reman MAXC-1369-DS-V New (MaxHD) Vertical - Left - Driver Side - Type B BX K147135X Reman MAXC-1369-PS-T New (MaxHD) Axial - Right - Passenger Side - Type A Trailer BX K165794X Reman MAXC-1369-DS-T New (MaxHD) Axial - Left - Driver Side - Type B BX K165795X Reman REPAIR KITS BW K092079 Tappet and Boot Kit BW 803114 Guide Pin Kit BW 802455 Shear Adapter MAXHWD1369 Pad Hardware Kit Bendix ADB22X, ADB22X-V, ADB22X-LT FMSI# 1369 PAD KITS Description Application BW K297277 OEM Truck/Trailer - On Highway & Severe Service MAXP1369 Premium Aftermarket Truck/Trailer - On Highway BW K182237 Bendix Aftermarket Truck/Trailer - On Highway CALIPER BOLT KITS DA 704-110 Axial (6 bolts per kit) DA 704-120B Vertical (6 bolts per kit) TORQUE PLATES BW 802295 Axial BW K024031 Vertical
13 ROTORS Included hardware with BW 802569 OEM Design (40pcs) Included hardware with MAXRF14R (11pcs) Design modification to aid with installation and reduce the number of attaching components. Note: Precision fit - Hand install. If it doesn’t drop in, need to check Hub for corrosion and/or damage/alignment. Application Truck/Trailer Bendix P/N BW K038574 ConMet P/N C5 10082074 MaxHD P/N MAXRUL12 Type UL-Type Bolt Holes 10 Bolt Hole Size 5/8" - 11 ABS Tone Ring No Hardware Included Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 5 - 29/32 150 Pilot Diameter 8 - 21/32 220 Bolt Circle 9 - 13/16 249.5 Disc Thickness 1 - 25/32 45 Application Truck/Trailer Bendix P/N BW K038573 ConMet P/N C5 10082589 MaxHD P/N MAXRUL11 Type UL-Type Bolt Holes 10 Bolt Hole Size 5/8" - 11 ABS Tone Ring No Hardware Included Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 5 - 7/16 138.0 Pilot Diameter 8 - 21/32 220 Bolt Circle 9 - 13/16 249.5 Disc Thickness 1 - 25/32 45 P/N BW 802569 MAXRF14R Type Splined Disc Splined Disc ABS Tone Ring No No Hardware Included Included Bolt Hole Size N/A M12 - 1.75 Bolt Holes N/A 10 Dimensions In mm In mm Diameter 16 - 15/16 430 16 - 15/16 430 Height/Depth 1 - 25/32 45 1 - 25/32 45 Pilot Diameter 10 - 5/32 258 10 - 5/32 258 Bolt Circle N/A N/A N/A N/A Disc Thickness 1 - 25/32 45 1 - 25/32 45 Min. Thickness 1.46 37 1.46 37 MAXRUL12 MAXRUL11 MAXRF14R
14 REPAIR KITS AUT100.A1777HM.10 Seal and Bolt Kit TN S-40670/2 Pad Retainer Spring AUT100.A177.11 Tappet Boot and Seal Kit MAXHWD1777.2 Pad Hardware Kit WB 6402259262 Pressure Plate DA 704-130 Caliper Bolt Kit (6 Bolts/ washers) M18-2.5 x 55mm MAXX22T™ Hendrickson Trailer - 22.5 Wheel Size Application Trailer - Hendrickson P/N MAXRUL47 Type UL-Type Bolt Holes 10 Bolt Hole Size M16 - 2 ABS Tone Ring Cast-In Hardware Included Yes Hardware Included Dimensions In mm Diameter 16 - 11/32 415 Height/Depth 5 - 29/32 150 Pilot Diameter 8 - 21/32 220 Bolt Circle 9 - 27/32 250 Disc Thickness 1 - 11/16 43 ROTORS FMSI# 1777 PAD KIT Description Application WB 6402229352 OEM Trailer - On Highway MAXP1777HT Premium Aftermarket Trailer - On Highway CALIPERS WB 6402220270 Caliper w/o Pads - Left - Driver Side - Type B New - OEM MAXC-1777-DS-H New - Aftermarket WB 6402220280 Caliper w/o Pads - Right - Passenger Side - Type A New - OEM MAXC-1777-PS-H New - Aftermarket Application Hendrickson WEMC Dura-Light Hubs MaxHD P/N MAXRU631 AUT153.1700240.S1WE Type U-Type U-Type Bolt Holes 10 10 Bolt Hole Size M22 - 1.5 M22 x 1.5 ABS Tone Ring Cast-in Yes - sits on 8 posts Studs - Long (Sold Separately) AUT201.6304WE Included Dimensions In mm In mm Diameter 16 - 11/32 415 16 - 15/16 430 Height/Depth 6 - 7/8 175 6 - 7/8 175 Pilot Diameter 9 - 27/32 250 9 - 27/32 250 Bolt Circle 11 - 1/4 286 11 - 1/4 286 Disc Thickness 1 - 11/16 43 1 - 11/16 43 AUT201.6304WE Note: Studs Sold Separately MAXRU631 MAXRUL47
15 MAXXUS™ Truck Application Truck ConMet P/N C5 10020682 MaxHD P/N MAXRUL45 Type UL-Type Bolt Holes 10 Bolt Hole Size M16 - 1.5 ABS Tone Ring No Hardware Included Yes Hardware Included Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 6 - 5/16 160 Pilot Diameter 8 - 5/32 207 Bolt Circle 11 - 1/4 286 Disc Thickness 1 - 25/32 45 FMSI# 2061 PAD KIT Description Application WB 6403229632 OEM Truck - On Highway MAXP2061 Premium Aftermarket Truck - On Highway REPAIR KITS WB 6403229272 Axial Mount Resetting Unit WB 6403229322 Radial Mount Seals for Clamping Unit WB 6403229352 Radial Mount Pressure Plate WB 6403229382 Radial Mount Seal and Bolt Kit MAXHWD1777.2 Pad Hardware Kit ROTORS CALIPERS WB 6403220650 Caliper Radial Mount w/o Pads - Left - Driver Side - Type B New - OEM MAXC-2061-DS New - Aftermarket WB 6403220660 Caliper Radial Mount w/o Pads - Right - Passenger Side - Type A New - OEM MAXC-2061-PS New - Aftermarket MAXRUL45
16 MAXXUS™ L 2.0 Truck Application Truck ConMet P/N C5 10020682 MaxHD P/N MAXRUL45 Type UL-Type Bolt Holes 10 Bolt Hole Size M16 - 1.5 ABS Tone Ring No Hardware Included Yes Hardware Included Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 6 - 5/16 160 Pilot Diameter 8 - 5/32 207 Bolt Circle 11 - 1/4 286 Disc Thickness 1 - 25/32 45 FMSI# 2588 PAD KIT Description Application WB 6404219292 OEM Truck - On Highway MAXP2588 Premium Aftermarket Truck - On Highway REPAIR KITS WB 6404219222 Caliper Guides & Seals Repair Kit ROTORS CALIPERS WB 6404210030 Caliper w/o Pads - Left - Driver Side - Type B New - OEM WB 6404210040 Caliper w/o Pads - Right - Passenger Side - Type A New - OEM MAXRUL45 1 5/8” 4 1/4” 8 1/4” Inner 8 1/4” 4 1/4” 1 3/16” Outer
17 PAN17™ Light Duty Trailer - 17.5 Wheel Size REPAIR KITS WB 12999699VT Seal and Bolt Kit WB 6401759202 Tappet Boot and Seal Kit WB 6401759402 Pressure Plate Caliper Bolt Kit DA 704-132 M16-1.5 x 60mm (6 bolts/washers) (Ridewell 1660056) DA 704-110 M20-2.5 x 60mm (6 bolts/washers) ROTORS Application Trailer - Hendrickson & Ridewell P/N TN S-33391 Type UL-Type Bolt Holes 8 Bolt Hole Size M14 - 2 ABS Tone Ring Cast-In Hardware Included Dimensions In mm Diameter 12 - 25/32 325 Height/Depth 5 - 27/32 148.5 Pilot Diameter 6 - 13/16 173 Bolt Circle 7 - 23/32 196 Disc Thickness 1 - 11/32 34 FMSI# 1518 PAD KIT Description Application WB 6401759552 OEM Trailer - On Highway MAXP1518 Premium Aftermarket Trailer - On Highway CALIPERS WB 40175072 Caliper w/o Pads - Left - Driver Side - Type B New - OEM MAXC-1518-DS New - Aftermarket WB 40175073 Caliper w/o Pads - Right - Passenger Side - Type A New - OEM MAXC-1518-PS New - Aftermarket Application Ingersoll/IMT P/N AUT153.110705 Type U-Type Bolt Holes 8 Bolt Hole Size M14 - 2 ABS Tone Ring Cast-in Hardware Included Dimensions In mm Diameter 12 - 25/32 325 Height/Depth 5 - 27/32 148.5 Pilot Diameter 6 - 21/32 169 Bolt Circle 7 - 23/32 196 Disc Thickness 1 - 25/32 45 AUT153.110705 TN S-33391
18 Application Trailer - Hendrickson P/N TN S-33389-1 Type UL-Type Bolt Holes 10 Bolt Hole Size M16 - 2 ABS Tone Ring Cast-In Hardware Included Dimensions In mm Diameter 14 - 27/32 377 Height/Depth 5 - 29/32 150 Pilot Diameter 8 - 11/16 221 Bolt Circle 9 - 13/16 249.5 Disc Thickness 1 - 25/32 45 Application Ingersoll-IMT P/N AUT153.171601 Type UL-Type Bolt Holes 10 Bolt Hole Size M16 - 2 ABS Tone Ring Cast-In Hardware Yes Dimensions In mm Diameter 14 - 27/32 377 Height/Depth 5 - 29/32 150 Pilot Diameter 8 - 21/32 220 Bolt Circle 9 - 13/16 250 Disc Thickness 1 - 25/32 45 PAN19™ Medium Duty Trailer - 19.5, 22.5 Wheel Size PAD KIT Description Application WB 6401959542 OEM Trailer - On Highway FMSI# 1438 REPAIR KITS WB 6402259212 Seal and Bolt Kit WB 6401759202 Tappet Boot and Seal Kit WB 6401959362 Pressure Plate CALIPER BOLT KIT DA 704-133 M16-1.5 x 60mm (Ridewell) DA 704-110 M20-2.5 x 60mm ROTORS CALIPERS WB 40195037 Caliper w/o Pads - Left - Driver Side - Type B New - OEM AUT158.40195037 New - Aftermarket (w/o carrier) WB 40195038 Caliper w/o Pads - Right - Passenger Side - Type A New - OEM AUT158.40195038 New - Aftermarket (w/o carrier) TN S-33389-1 AUT153.171601
19 Application Ingersoll-IMT (Ref # 70007) MaxHD P/N MAXRUL37 Type UL-Type - Square Lug Bolt Holes 10 Bolt Hole Size M16 - 2 ABS Tone Ring Cast-In (Recessed) Hardware Included Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 5 - 29/32 150 Pilot Diameter 8 - 21/32 220 Bolt Circle 9 - 13/16 249.5 Disc Thickness 1 - 25/32 45 PAN22™ Heavy Duty Truck/Trailer - 22.5 Wheel Size FMSI# 1777 PAD KIT Description Application WB 6402259452 OEM Truck/Trailer - On Highway MAXP1777 Premium Aftermarket Truck/Trailer - On Highway REPAIR KITS WB 6402259212 Seal and Bolt Kit WB 6401759202 Tappet Boot and Seal Kit WB 6402259262 Pressure Plate TN S-40670/2 Pad Retaining Spring MAXHWD1777.1 Pad Hardware Kit CALIPER BOLT KIT DA 704-140 M16-1.5 x 55mm, 6 Bolt/washers (Ridewell) DA 704-110 M20-2.5 x 60mm, 6 Bolts/washers (Hendrickson) ROTORS CALIPERS WB 6402250800 New - OEM Caliper w/o Pads - Left - Driver Side - Type B Hendrickson MAXC-1777-DS-6B New - Aftermarket WB 6402250810 New - OEM Caliper w/o Pads - Right - Passenger Side - Type A MAXC-1777-PS-6B New - Aftermarket WB 40225015 New - OEM Caliper w/o Pads - Left - Driver Side - Type B IMT, Reyco Granning, SAF-Holland, FUWA Axle, Ridewell MAXC-1777-DS-4B New - Aftermarket WB 40225016 New - OEM Caliper w/o Pads - Right - Passenger Side - Type A MAXC-1777-PS-4B New - Aftermarket 360 mm / 14.17” Hole Size M20-2.5 400 mm / 15.75” Hole Size M16-1.5 MAXRUL37 1) 2) 1) 2)
20 Application Hendrickson (Ref # S-34172 & S-38764), Ridewell (Ref # 1660363) P/N MAXRUL37 Type UL-Type - Curved Lug Bolt Holes 10 Bolt Hole Size M16 - 2 ABS Tone Ring Cast-In (Flush) Hardware Included Notes Flush Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 5 - 29/32 150 Pilot Diameter 8 - 21/32 220 Bolt Circle 9 - 13/16 249.5 Disc Thickness 1 - 25/32 45 ROTORS, CONTINUED Application Truck/Trailer ConMet P/N - Snap in Tone Ring C5 10085621 MaxHD P/N - Snap on Tone Ring MAXRF49SR MaxHD P/N - Bolt on Tone Ring MAXRF49 Type Flat Bolt Holes 10 Bolt Hole Size 5/8" - 18 Hardware Included Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 2 - 3/32 53 Pilot Diameter 6 - 9/16 166.5 Bolt Circle 7 - 7/8 200 Disc Thickness 1 - 25/32 45 MAXRF49SR MAXRF49 MAXRUL37
21 Meritor EX225H Series (EX+, H2, H3, H4, H6) PAD KIT DESCRIPTION FMSI APPLICATION RI KIT2252H2CG OEM 1311 Transit/Bus RI KIT2252H2DD Severe Service OEM 1311 Refuse RI KIT2252HBMA9500 Severe Service OEM - ELSA225-3 Mack/Volvo 1708 Refuse MAXP1708VM Premium Aftermarket - ELSA225-3 Mack/Volvo 1708 Refuse FMSI# 1311/1708 REPAIR KITS RI KIT225281 Retainer Bar Kit RI KIT225280 Slide Pin Kit - For All EX+ H Calipers RI KIT225224 Wear Indicator - Metal RI KIT225201 Boot Kit CALIPER BOLT KITS DA 704-124 EX2225H Vertical Mount (M20-1.5 x 60mm) 4 bolts DA 704-125 EX225H2 Axial Mount (M20-1.5 x 60mm) 6 bolts/washers DA 704-126 EX225H2 Axial Mount (M20-1.5 x 55mm) 6 bolts/washers CALIPERS RI EX225H201XX000 AXIAL NEW RIGHT - PASSENGER SIDE REFUSE RI EX225H201R AXIAL REMAN RI EX225H202XX000 AXIAL NEW LEFT - DRIVER SIDE RI EX225H202R AXIAL REMAN RI EX225H301XX000 AXIAL NEW RIGHT - PASSENGER SIDE TRANSIT RI EX225H301R AXIAL REMAN RI EX225H302XX000 AXIAL NEW LEFT - DRIVER SIDE RI EX225H302R AXIAL REMAN RI EX225H228XX101 AXIAL NEW RIGHT - PASSENGER SIDE VOLVO GROUP STEER AXLES RI EX225H218R AXIAL REMAN RI EX225H227XX101 AXIAL NEW LEFT - DRIVER SIDE RI EX225H217R AXIAL REMAN RI EX225H226XX101 RADIAL NEW RIGHT - PASSENGER SIDE VOLVO GROUP DRIVE AXLES RI EX225H216R RADIAL REMAN MAXC-EX225H-216-PS RADIAL NEW - AFTERMARKET RI EX225H225XX101 RADIAL NEW LEFT - DRIVER SIDE RI EX225H215R RADIAL REMAN MAXC-EX225H-215-DS RADIAL NEW - AFTERMARKET 1311 1708 4 3/16”
22 Application Meritor Axles FF, FL, & R ConMet P/N C5 10020682 MaxHD P/N MAXRUL45 Type UL-Type - Square Lug Bolt Holes 10 Bolt Hole Size M16 - 1.5 ABS Tone Ring No Hardware Included Yes Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 6 - 5/16 160 Pilot Diameter 8 - 1/8 206.5 Bolt Circle 11 - 1/4 286 Disc Thickness 1 - 25/32 45 HUB/ROTOR ASSEMBLIES - See Page 26-28 ROTORS Application Meritor Drive Axle P/N C5 10082181 Type UL-Type - Curved Lug Hole Count 10 Bolt Hole Diameter 5/8"-18 ABS Tone Ring No Hardware Included Yes Dimensions In mm Diameter 17 - 3/32 434 Height/Depth 5 - 5/8 143 Pilot Diameter 8 - 1/2 216 Bolt Circle 10 - 1/2 267 Disc Thickness 1 - 25/32 45 MAXRUL45 C5 10082181
23 Meritor EX225 L/S Series Truck/Trailer FMSI# 1370(K) / LB PAD KIT DESCRIPTION FMSI APPLICATION RI KIT2252LCM7400 OEM - Mack/Volvo for 434mm rotor 1370 Truck - On Highway MAXP1370 Premium Aftermarket - Mack/Volvo for 434mm rotor 1370 Truck - On Highway RI KIT2252L2CG OEM - Unique L/R handed keyway notch 1370K Truck/Trailer - On Highway MAXP1370K Premium Aftermarket - Universal keyway notch 1370K Truck/Trailer - On Highway RI KIT2252L2DE Severe Service OEM - Mack/Volvo for 410mm rotor LB Truck - Off Highway / Military RI KIT2252LBM7400 OEM - Mack/Volvo for 410mm rotor LB Truck - On Highway CALIPERS RI EX225L262XX000 AXIAL NEW RIGHT - PASSENGER SIDE MERITOR AXLES & NEW CASCADIA RI EX225L262R AXIAL REMAN RI EX225L261XX000 AXIAL NEW LEFT - DRIVER SIDE RI EX225L261R AXIAL REMAN RI EX225L266XX000 AXIAL NEW RIGHT - PASSENGER SIDE VOLVO GROUP STEER AXLES MAXC-EX225L-266-PS AXIAL NEW - AFTERMARKET RI EX225L265XX000 AXIAL NEW LEFT - DRIVER SIDE MAXC-EX225L-265-DS AXIAL NEW - AFTERMARKET RI EX225L272XX000 AXIAL NEW RIGHT - PASSENGER SIDE TRAILER AXLES RI EX225L258R AXIAL REMAN MAXC-1370K-PS-T AXIAL NEW - AFTERMARKET RI EX225L271XX000 AXIAL NEW LEFT - DRIVER SIDE RI EX225L257R AXIAL REMAN MAXC-1370K-DS-T AXIAL NEW - AFTERMARKET RI EX225L270XX000 RADIAL NEW RIGHT - PASSENGER SIDE VOLVO GROUP DRIVE AXLES MAXC-EX225L-270-PS RADIAL NEW - AFTERMARKET RI EX225L269XX000 RADIAL NEW LEFT - DRIVER SIDE MAXC-EX225L-269-DS RADIAL NEW - AFTERMARKET KIT2252L2CG has a unique keyway (notch) in the bottom. MAXP1370K has universal keyway 3 13/16” LB 1370 4 3/8" 8 1/2" 4 3/8” MaxHD 1370K
24 REPAIR KITS RI KIT225281 Retainer Bar Kit Fits EX225L201-210, 223-224, 239-240, 249-250 RI KIT225270 Retainer Bar Kit Fits all other EX225L (without pad wear warning indicator) RI KIT225276 Slide Pin Kit Fits EX225L201-211, 245-246 RI KIT225277 Slide Pin Kit Fits all other EX225L RI KIT225224 Wear Indicator Metal RI KIT225282 Boot Kit Includes Grease DA 704-121 Caliper Bolt Kit Axial Mount (M20-2.0 x 60mm) DA 704-123 Caliper Bolt Kit Axial Mount (M20-2.0 x 55mm) ROTORS Application Truck - Volvo/Mack Steer (FF) Drive (R) P/N C5 10087663 C5 10087664 MAXRF629 MAXRF62 Type Flat Bolt Holes 10 Bolt Hole Size 5/8" - 18 ABS Tone Ring Pressed onto hub Snap Ring - Conmet / Bolt on - MaxHD Hardware Included Yes Dimensions In mm Diameter 17 - 3/32 434 Height/Depth 2 - 3/32 53 Pilot Diameter 6 - 9/16 166.5 Bolt Circle 7 - 7/8 200 Disc Thickness 1 - 25/32 45 Application Truck - Freightliner Cascadia Steer (FF) Drive (R) P/N C5 10083923 C5 10083924 MAXRF77 MAXRF78 Type Flat Bolt Holes 10 Bolt Hole Size 5/8" - 18 ABS Tone Ring Pressed onto hub Snap Ring Hardware Included Yes Dimensions In mm Diameter 16 - 15/16 430 Height/Depth 2 - 3/32 53 Pilot Diameter 6 - 9/16 166.5 Bolt Circle 7 - 7/8 200 Disc Thickness 1 - 25/32 45 MAXRF629 MAXRF62 MAXRF77 MAXRF778
25 C88 / P89 INTEGRAL® TRAILER AXLE C88 Air Disc Brake P89 INTEGRAL® Air Disc Brake Green Teal Serial Tag (SK7 DOES NOT Include SAF Embossed Stamp) 9 4 6 58 13 26 45 11 44 12 2 1 7 5 40 10 37 61 39 68 70 22 Green Teal Serial Tag ( SK7 DOES NOT Include SAF Embossed Stamp) 69 CALIPERS HH 51830039 SK7 Caliper - Left - Driver Side - Type B HH 51830040 SK7 Caliper - Right - Passenger Side - Type A ROTORS HH 51830037 C88 Rotor Replacement Kit - Hat HH 51830036 P89 Rotor Replacement Kit - Flat REPAIR KITS HH 03434381400 SK7 Diaphragm Rebuild Kit HH 03434381500 SK7 Pin Rebuild Kit HH 03434381600 SK7 Shear Adapter Kit PAD KIT DESCRIPTION APPLICATION BW K297277 OEM Truck/Trailer - On Highway & Severe Service MAXP1369 Premium Aftermarket Truck/Trailer - On Highway BW K182237 Bendix Aftermarket Truck/Trailer - On Highway HH 51830037 HH 51830036 FMSI# 1369
26 P89 TAPER / PARALLEL / PLUS TRAILER AXLE P89 PLUS P89 TAPER / PARALLEL Blue Serial Tag SAF Embossed Stamp 8 1/4” 4 1/4” 1 3/8” CALIPERS HH 51830052 ST7 Caliper - Left - Driver Side - Type B MAXC-2252-DS MaxHD ST7 Caliper - Left - Driver Side - Type B HH 51830053 ST7 Caliper - Right - Passenger Side - Type A MAXC-2252-PS MAXHD ST7 Caliper - Right - Passenger Side - Type A ROTORS MAXRUL12 Rotor Replacement Kit - U Type (Ref # 51830049) HH 51830036 P89 Rotor Replacement Kit - Flat REPAIR KITS HH 03434382300 ST7 Diaphragm Rebuild Kit HH 03434381500 ST7 Pin Rebuild Kit HH 03434381600 ST7 Shear Adapter Kit DA 704-150 M18-1.5 x 55mm (4 Bolts) PAD KIT DESCRIPTION APPLICATION BW K206710 OEM Trailer - On Highway MAXPST7P89 Premium Aftermarket Trailer - On Highway HH 51830036 MAXRUL12
27 Front Axle, Disc Brakes FF Front Axle - Freightliner / Western Star (5.44 Offset) - OD Pilot U-Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083191 6.18 6,600 13.2K Alum 2.47 Alum AUT201.6041 125.2 4.50 10020109 C5 10020682 C5 10083193 6.18 7,350 14.7K Iron 2.47 Alum C5 10020540 152.6 4.50 10020109 C5 10020682 FF Front Axle - Freightliner / Western Star (5.44 Offset) - Flat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10084788 5.94 6,600 13.2K Alum 2.48 Alum AUT201.6222 118.6 4.50 10083733 C5 10083923 FF Front Axle - Freightliner / Thomas Built Busses - Medium Duty Hat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083064 6.18 6,600 13.2K Iron 2.47 Alum C5 10001405 107.0 4.50 10003830 EU E-14552A FF Front Axle - Kenworth / Peterbilt / Navistar / Volvo / Mack - Bendix Splined Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083209 5.94 7,350 14.7K Alum 2.59 Alum AUT201.6040 112.2 4.50 10025445 BW 802569 C5 10083211 5.94 7,350 14.7K Iron 2.72 Alum AUT201.6151 130.0 4.50 10025445 BW 802569 FF Front Axle - Volvo - Flat Rotor 434mm Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083212 5.94 6,600 13.2K Alum 2.47 Alum AUT201.6222 118.9 4.50 10034621 C5 10041216 C5 10083214 5.94 7,350 14.7K Iron 2.63 Alum C5 10001405 143.0 4.50 10034621 C5 10041216 FF Front Axle - Volvo - Flat Rotor 410mm Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10084065 5.94 6,600 13.2K Alum 2.47 Alum AUT201.6222 111.3 4.50 10037760 C5 10041215 C5 10084063 5.94 7,350 14.7K Iron 2.63 Alum C5 10001405 135.4 4.50 10037760 C5 10041215 FL Front Axle - Kenworth / Peterbilt - Bendix Splined Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083147 5.09 11,500 23K Iron 2.56 Alum AUT201.6151 151.2 5.56 10025445 BW 802569 FL Front Axle - Navistar - U Rotor, Bendix Brake Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083222 5.09 11,500 23K Iron 2.56 Alum AUT201.6151 157.3 5.56 10041006 BW K038574/ C5 10082074 FL Front Axle - Kenworth / Peterbilt / Freightliner - U Rotor, Meritor Brake Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083224 5.09 11,500 23K Iron 2.67 Alum C5 10034480 172.7 5.56 10080753 C5 10082181 FL Front Axle - Freightliner / Western Star - OD Pilot U Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref# Replacement Rotor Kit C5 10083226 5.09 11,500 23K Iron 2.68 Alum C5 10020540 170.5 5.56 10020109 C5 10020682 ADB HUB/ROTOR ASSEMBLIES
28 Rear Axle, Disc Brakes R Drive Axle - Freightliner / Western Star - OD Pilot U Rotor Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10083228 2.00 11,500 23K Alum 3.45 Alum AUT201.6143 137.6 572 PS/580 PS 10020109 C5 10020682 C5 10083242 2.00 13,000 26K Iron 3.63 Alum C5 10030945 173.4 572 PS/580 PS 10020109 C5 10020682 R Drive Axle - Freightliner / Western Star - Flat Rotor - Snap-In ABS Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10084790 2.00 11,500 23K Alum 3.58 Alum AUT201.6223 133.4 572 PS/580 PS 10083733 C5 10083294 R Drive Axle - Kenworth / Peterbilt - Bendix Splined Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10084988 1.81 13,000 26K Iron 3.63 Alum AUT201.6157 158.2 572 PS/580 PS 10025445 BW 802569 R Drive Axle - Kenworth / Peterbilt - U Rotor, Meritor Brake Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10083240 1.81 13,000 26K Iron 3.63 Alum AUT201.6157 166.3 572 PS/580 PS 10080753 C5 10082181 R Drive Axle - Navistar - U Rotor Bendix Brake Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10083230 1.81 13,000 26K Iron 3.63 Alum AUT201.6157 155.4 572 PS/580 PS 10080820 C5 10082589 R Drive Axle - Volvo - Flat Rotor - 410mm Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10084061 2.00 11,500 23K Alum 3.75 Alum AUT201.6143 124.8 572 PS/580 PS 10037760 C5 10041217 R Drive Axle - Volvo - Flat Rotor - 434mm Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10083238 2.00 11,500 23K Alum 3.75 Alum AUT201.6143 133.2 572 PS/580 PS 10034621 C5 10041218 R Drive Axle - Volvo / Mack / Navistar - Bendix Splined Part Number Hub Flange Offset Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Outer Bearing Combination Rotor Ref# Replacement Rotor Kit C5 10084931 1.81 11,500 23K Alum 3.58 Alum AUT201.6223 121.3 572 PS/580 PS 10025445 BW 802569 ADB HUB/ROTOR ASSEMBLIES Trailer, Disc Brakes Trailer, Flat Rotor, PreSet Part Number TN / TP Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Rotor Ref # Replacement Rotor Kit C5 10083392 TN 11,500 23K Alum 3.44 Alum AUT201.6144 123.3 10084701 C5 10085621 C5 10084551 TN 11,500 23K Iron 3.41 Alum C5 10034480 146.5 10084701 C5 10085621 C5 10083394 TP 12,500 25K Alum 3.44 Alum AUT201.6144 129.8 10084701 C5 10085621 C5 10084557 TP 12,500 25K Iron 3.41 Alum C5 1034480 151.9 10084701 C5 10085621 Trailer, Splined, PreSet Part Number TN / TP Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Rotor Ref # Replacement Rotor Kit C5 10083396 TN 11,500 23K Alum 3.44 Alum AUT201.6144 119.2 10025445 BW 802569 C5 10083398 TP 12,500 25K Alum 3.44 Alum AUT201.6144 121.8 10025445 BW 802569 Trailer, U-rotor, PreSet Part Number TN / TP Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Rotor Ref # Replacement Rotor Kit C5 10083400 TN 12,500 25K Iron 3.63 Alum AUT201.6157 143.1 10041006 BW K038574 / C5 10082074 C5 10083402 TP 12,500 25K Iron 3.63 Alum AUT201.6157 147.9 10041006 BW K038574 / C5 10082074
29 Medium Duty Front Axle, Disc Brakes FF-Front - Freightliner/Thomas Built Buses (10-Stud) - Hat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10083065 6.18 6600 13.2k Iron 2.72 Alum AUT201.6151 107.7 4.5 10003830 EU E-14552A FF-Front - Ford/Navistar (10-Stud) - Flat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10083062 5.68 6000 12k Iron 2.6 Alum C5 10001405 98.1 4.5 10019996 C5 10020611 Rear Axle, Disc Brakes F-Drive - Freightliner/Thomas Built Buses (8-Stud) - Hat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082905 1.73 7500 15k Iron 3.61 Alum AUT201.6377 107.2 N/A 10003830 EU E-14552A L-Drive - Freightliner/Thomas Built Buses (8-Stud) - Hat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082907 1.74 9500 19k Iron 3.06 Alum AUT201.6151 111.6 N/A 10003830 EU E-14552A FC-Drive - Freightliner/Thomas Built Buses (8-Stud) - Hat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082919 5.84 4000 8k Iron 2.6 Alum C5 10001405 103.7 N/A 10003830 EU E-14552A L-Drive - Freightliner/Thomas Built Buses (10-Stud) - Hat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082909 1.74 9500 19k Iron 3.61 Alum AUT201.6377 113.7 N/A 10003830 EU E-14552A 190 Drive - Ford/Navistar (8-Stud) - Flat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082910 2.05 10500 21k Iron 3.06 Alum AUT201.6151 114.4 N/A 10019996 C5 10020611 FC-Drive - Ford/Navistar (8-Stud) - Flat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082921 6.545 4250 8.5k Iron 2.6 Alum C5 10001405 96.6 N/A 10019996 C5 10020611 FC-Drive - Ford/Navistar (10-Stud) - Flat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082923 5.84 4250 8.5k Iron 2.6 Alum C5 10001405 96.9 N/A 10019996 C5 10020611 190-Drive - Ford/Navistar (10-Stud) - Flat Rotor Part Number Hub Flange Offset (in) Hub Load Rating (lbs) GAWR (lbs) Hub Material Wheel Stud Standout (in) Steel / Alum Wheels Wheel Stud Weight (lbs) Hub Cap BC (in) Rotor Ref # Replacement Rotor Kit C5 10082912 2.05 10500 21k Iron 3.61 Alum AUT201.6377 116.9 N/A 10019996 C5 10020611 ADB HUB/ROTOR ASSEMBLIES
30 AIR DISC BRAKE PAD WEAR GAUGE (BENDIX #K109114) Bendix® Air Disc Brake Tool Kits for ADB22X® and ADB22X®-LT TAPPET & BOOT REPLACEMENT TOOL KIT (BENDIX #K028829) Cup Handle for Cup Swivel Assembly Long Strut Flange Fork Black Nylon Disc GUIDE PIN/BOOT SERVICE TOOL KIT (BENDIX #K029107) 13/8" Black Disc 11/2" Black Disc 2" Diameter Sleeve 21/8" Diameter Disc 8" Bolt 37/8" Long Sleeve 10" Bolt Brass Nut Dimpling tool made up of Main Body, Crimper Screw, Expansion Ring, Plunger, Dimpling Pins, and Set Screw 8" Bolt Half Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve Keep Your Bendix® Air Disc Brakes in Top Shape with These Tools For more information, talk to your Bendix Account Manager or call 1-800-AIR-BRAKE (1-800-247-2725). Order the complete Bendix ADB22X Kit (Bendix #K029164) Includes: 1) Tappet & Boot Replacement Tool Kit K028829 (see contents at right) 2) Guide Pin/Boot Service Kit K029107 (see contents at right) Or, you may order the kits separately: BW7605 Rev. 003 ©8/2025 Bendix Commercial Vehicle Systems LLC, a member of Knorr-Bremse • All Rights Reserved Printed on recycled paper BW7605 - English - 003 - PRINTED : 03/16/2026 - 08:03:43 -0500 TAPPET & BOOT REPLACEMENT TOOL KIT (BW K028829) Cup Handle for Cup Swivel Assembly Long Strut Flange Fork Black Nylon Disc AIR DISC BRAKE PAD WEAR GAUGE (BENDIX #K109114) Bendix® Air Disc Brake Tool Kits for ADB22X® and ADB22X TAPPET & BOOT REPLACEMENT TOOL KIT (BENDIX #K028829) Cup Handle for Cup Swivel Assembly Long Strut Flange Fork Black Nylon Disc GUIDE PIN/BOOT SERVICE TOOL KIT (BENDIX #K029107) 13/8" Black Disc 11/2" Black Disc 2" Diameter Sleeve 21/8" Diameter Disc 8" Bolt 37/8" Long Sleeve 10" Bolt Brass Nut Dimpling tool made up of Main Body, Crimper Screw, Expansion Ring, Plunger, Dimpling Pins, and Set Screw 8" Bolt Half Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve Keep Your Bendix® Air Disc Brakes in Top Shape with These Tools r more information, talk to your Bendix Account Manager or call 1-800-AIR-BRAKE (1-800-247-2725). Order the complete Bendix ADB22X Kit Bendix #K029164) ncludes: 1) Tappet & Boot Replacement Tool Kit K028829 (see contents at right) 2) Guide Pin/Boot Service Kit K029107 (see contents at right) Or, you may order the kits separately: 05 Rev. 003 ©8/2025 Bendix Commercial Vehicle Systems LLC, a member of Knorr-Bremse • All Rights Reserved AIR DISC BRAKE PAD WEAR GAUGE (BW K109114) AIR DISC BRAKE PAD WEAR GAUGE (BENDIX #K109114) Bendix® Air Disc Brake Tool Kits for ADB22X® and ADB22X®-LT TAPPET & BOOT REPLACEMENT TOOL KIT (BENDIX #K028829) Cup Handle for Cup Swivel Assembly Long Strut Flange Fork Black Nylon Disc GUIDE PIN/BOOT SERVICE TOOL KIT (BENDIX #K029107) 13/8" Black Disc 11/2" Black Disc 2" Diameter Sleeve 21/8" Diameter Disc 8" Bolt 37/8" Long Sleeve 10" Bolt Brass Nut Dimpling tool made up of Main Body, Crimper Screw, Expansion Ring, Plunger, Dimpling Pins, and Set Screw 8" Bolt Half Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve in Top Shape with These Tools more information, talk to your Bendix Account Manager or call 1-800-AIR-BRAKE (1-800-247-2725). Order the complete endix ADB22X Kit Bendix #K029164) ncludes: ) Tappet & Boot Replacement Tool Kit K028829 (see contents at right) ) Guide Pin/Boot Service Kit K029107 (see contents at right) Or, you may order the kits separately: TAPPET & BOOT REPLACEMENT TOOL KIT (BW K028829) 1 3/8” Black Disc 1 1/2” Black Disc 2” Diameter Sleeve 2 1/8” Diameter Disc 8” Bolt 3 7/8” Long Sleeve 10” Bolt Brass Nut Dimpling tool made up of Main Body, Crimper Screw, Expansion Ring, Plunger, Dimpling Pins, and Set Screw 8” Bolt Half Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve Cap Tool made up of Retaining Ring, Mandrel, and Sleeve TOOLS Order the complete Bendix ADB22X Kit Bendix BW K029164 Includes: 1) BW K028829 Tappet & Boot Replacement Tool Kit (see contents at right) 2) BW K029107 Guide Pin/Boot Service Kit (see contents at right) Bendix® Air Disc Brake Tool Kits for ADB22X® and ADB22X®-LT Keep Your Bendix® Air Disc Brakes in Top Shape with These Tools
31 Tool Sets for Air Disc Brakes Tool Set for MAXX™, MAXXUS™ & PAN™ Calipers WB 4006083750 WABCO caliper tool set • Modular tool set for repairing WABCO calipers and adjusting the return units PRODUCT NUMBER CONTENT WB 3001000102* Tool set ‘Basic’ WB 3001000112* Adjuster change WB 3001000122* Ratchet for return unit WB 3001000132* Tool set ‘Extension’ s es XUS™ & PAN™ calipers set for repairing WABCO calipers and adjusting the 0 WABCO caliper tool set Content sicʼ nge eturn unit ensionʼ Product sicʼ Product ensionʼ ing the WB 3001000102 Tool set ‘Basic’ 167 Air disc brakes Tool sets for disc brakes Tool set for MAXX™, MAXXUS™ & PAN™ calipers ■ Description Modular tool set for repairing WABCO calipers and adjusting the return units ■ Product number 400 608 375 0 WABCO caliper tool set Product number Content 300 100 010 2 Tool set ʻBasicʼ 300 100 011 2 Adjuster change 300 100 012 2 Ratchet for return unit 300 100 013 2 Tool set ʻExtensionʼ Tool set ʻBasicʼ Product number Product 300 100 010 2 Tool set ʻBasicʼ Tool set ʻExtensionʼ Product number Product 300 100 013 2 Tool set ʻExtensionʼ Adjuster change Product number Product 300 100 011 2 Adjuster change Ratchet for return unit Product number Product 300 100 012 2 Ratchet for return unit WB 3001000132 Tool set ‘Extension’ 167 Description Modular tool set for repairing WABCO calipers and adjusting the return units Product number 400 608 375 0 WABCO caliper tool set Product number Content 300 100 010 2 Tool set ʻBasicʼ 300 100 011 2 Adjuster change 300 100 012 2 Ratchet for return unit 300 100 013 2 Tool set ʻExtensionʼ ool set ʻBasicʼ Product number Product 300 100 010 2 Tool set ʻBasicʼ ool set ʻExtensionʼ Product number Product 300 100 013 2 Tool set ʻExtensionʼ djuster change Product number Product 300 100 011 2 Adjuster change atchet for return unit Product number Product 300 100 012 2 Ratchet for return unit WB 3001000112 Adjustor Change 167 ol set ʻExtensionʼ Product number Product 300 100 013 2 Tool set ʻExtensionʼ juster change Product number Product 300 100 011 2 Adjuster change tchet for return unit Product number Product 300 100 012 2 Ratchet for return unit WB 3001000122 Ratchet for Return Unit Applications of Tool Sets BRAKE TYPE WB 3001000102 TOOL SET ‘BASIC’ WB 3001000112 ADJUSTER CHANGE WB 3001000122 RATCHET FOR RETURN UNIT WB 3001000132 TOOL SET ‘EXTENSION’ PAN™17 X - X X PAN™17 CWS* X X X X PAN™19 X - X X PAN™22 X - X X PAN™25 X - X X MAXX™17 X - X X MAXX™19 X - X X MAXX™22 X X X - MAXX™22T X X X - MAXXUS™ X X X - * CWS - Continuous Wear Sensor * All Parts Available Individually TOOLS continued
32 MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI March 31, 2026 (08Air Disc Brakes Catalog) TOOLS continued HENDRICKSON TN S-37430 Adb Rotor And Brake Pad Wear Indicator Tool MERITOR RI 3256B1354 Ex225 Caliper/Carrier Bolt Wrench DISC BRAKE HUB HANDLER KD K-1380 Designed for wheel hubs with an 11-1/4” stud pattern diameter. FEATURES • Prevents back injuries and improves safety • Replace rotor, seals and bearings with no heavy lifting • Works on disc brake hubs for semis, school buses and other transit vehicles • Removable drip pan KD K-1345 Supports calipers clocked in any position on drive, steer and trailer axles FEATURES • Support and remove heavy awkward and unbalanced calipers for hub and brake maintenance. • Works with Bendix, Meritor, SAF, Knorr-Bremse and Wabco. AIR DISC BRAKE CALIPER HOIST
