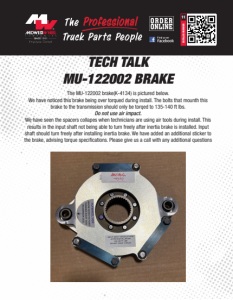

CATALOG NUMBER 11 The MU-122002 brake(K-4134) is pictured below. We have noticed this brake being over torqued during install. The bolts that mounth this brake to the transmission should only be torqed to 135-140 ft lbs. Do not use air impact. We have seen the spacers collapes when technicians are using air tools during install. This results in the input shaft not being able to turn freely after inertia brake is installed. Input shaft should turn freely after installing inertia brake. We have added an additional sticker to the brake, advising torque specifications. Please give us a call with any additional questions TECH TALK MU-122002 BRAKE
MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI August 18, 2026 (11Clutch Tech Talk) Description Size Spline Torque Alignment Tool Actuator Transmission Models Flywheel Opening Solenoid Value I-SHIFT/M-DRIVE MC MAX104461-1 Clutch 430 mm 2” 24 Spline 1850 MC AT-200-24 MC A-1001 A,B,C,D,E 260mm PA1845056 MC MAX104461-1-KIT Clutch, Actuator and Alignment Tool Package _ _ _ _ _ _ _ _ MC MAX104461-1-F Clutch 430 mm 2” 24 Spline 2360 MC AT-200-24 MC A-1001 F Series and Newer 290mm PA1845056 MC MAX104461-1-F-KIT Clutch, Actuator and Alignment Tool Package _ _ _ _ _ _ _ _ DT12 MC MAX4489CL Clutch 430 mm 2” 18 Spline 1850 MC AT-200-18 MC A-1002 Gen 1,2,3,4 260mm _ MC MAX4489CL-KIT Clutch, Actuator and Alignment Tool Package _ _ _ _ _ _ _ _ MC MAX4489CL-5 Clutch 430 mm 2” 18 Spline 2050 MC AT-200-18 MC A-1002 Gen 5 and Newer 290mm _ MC MAX4489CL-5-KIT Clutch, Actuator and Alignment Tool Package _ _ _ _ _ _ _ _ ENDURANT MC MAX4488CL Clutch (125969 Actuator Included) 430 mm 2” 18 Spline 1850 MC AT-200-18HD Included HD 260mm _ MC MAX4494CL Clutch (125968 Actuator Included) 430 mm 2” 18 Spline 1850 MC AT-200-18HD Included HD 260mm _ *New flywheel required for every install *Eaton software required to remove and install unit UltraShift™ DM Clutch Eliminates the need for a clutch pedal and helps to maximize clutch life. UltraShift PLUS ECA (Electronic Controlled Actuator) MC MAX121000X 2”-10 Spine ∙ 1750ft/lb MC MAX122002X 2”-14 Spine ∙ 1850ft/lb AUTOMATED MANUAL TRANSMISSION CLUTCHES *New inertia brake may be required P/N GP K3637 *Eaton software required to remove and install unit
