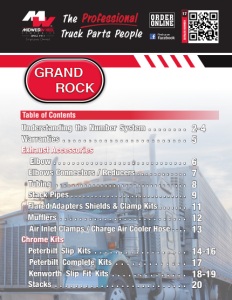

CATALOG NUMBER 17 Table of Contents Understanding the Number System . . . . . . . . 2-4 Warranties . . . . . . . . . . . . . . . . . . . . . . . . 5 Exhaust Accessories Elbow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Elbows Connectors / Reducers . . . . . . . . . . . . 7 Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Stack Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Flared Adapters Shields & Clamp Kits . . . . . . . 11 Mufflers . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Air Inlet Clamps / Charge Air Cooler Hose . . . . 13 Chrome Kits Peterbilt Slip Kits . . . . . . . . . . . . . . . . . . 14-16 Peterbilt Complete Kits . . . . . . . . . . . . . 17 Kenworth Slip Fit Kits . . . . . . . . . . . . . . 18-19 Stacks . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Understanding the Numbers ID and OD • ID – Refers to the Internal Diameter of any expanded part • OD – References the Outside Diameter (not expanded) Suffix • EX – Refers to an Expanded part • SB – Refers to an unexpanded end or Straight Bottom • A – at the end of a part number means Aluminized material • C – at the end of a part number means Chromed • CL or CC – Ceramic Lined and Ceramic Coated • S3 – 304 Stainless Steel • S4 – 409 Stainless Steel • BS – Black Powder Coated Prefix • SB – School Bus (Prefix) • M – Muffler • L – Elbow • S – Straight Stick EXAMPLE OF ID VS. OD S5-12EXA EX OR ID DIA SB OR OD DIA Straight sticks are the back-bone of the company. Used both in individual sale and the production of all our systems. S5-120SBA Refers to Straight length Diameter of Part Overall Length of Part Expanded or Straight Bottom Material Finish Beginning: (Product Type) • S5-120SBA - S5, S4, S3.5, etc. Shows the different diameters Middles: (End Forming Type) • S5-120SBA – (SB = Straight Bottom) • S5-120EXA – (EX = One end Expanded and Slotted) • S5-120EXEXA – (EXEX = Both ends Expanded and Slotted) Grand Rock Numbering System Common Prefix, Suffix and Acronyms Straight Sticks
3 CP-58A Refers to Coupler ID DIA ID DIA Overall Length is 8” Expanded Diameter Overall Length Lengths of tube with double expansion. Connects two sections together. RS-348A Refers to Repair Section Overall Length of Part Degree of Bend L590-1818A – (90 = Degrees) Ex: L545-, L3560-, L530Leg Lengths L590-1818A – (18 = Length of leg. Measured backside of bend Ex: L590-1818, L445-0909, l560-1010 End Forming L590-1818SA – (S=Straight Bottom ; Nil (1818A) = Expanded & Slotted) L590-1818SA Refers to Elbow Diameter of Part Degree of Bend Leg Lengths Expanded or Straight Material Finish Curved Stack Bull Horn Stacks Angle/Mitre Stack Straight Stack Aussie Stack K A S P BH West Coast Curve Stack Brute Stack West Coast Curve Stack Brute Stack New Stacks Options Curved Stack Bull Horn Stacks Angle/Mitre Stack Straight Stack Aussie Stack SK SA SS P&SP SBH Standard Reduced Bottom Part Number Identification K5-60SBA End Forming Style Type of Finish Overall Length of Pipe in Inches Pipe Diameter in inches Style of Stack; K, A, S, P, BH, BR, or WC Stacks Standard vs Reduced Bottom K6-60SBA SK6-60SBA-5 Stack Type Stack Length Refers to Reduced Bottom End Forming Style Type Of Finish Reduced Diameter Repair Sections Couplers Elbows Stacks
4 Y-500A or NPA Diameter Y- Pipe Type YB/C-400A No Plate M-465 Economy Muffler Why is it worth a few dollars more than the Competition? Grand Rock has not compromised in the thickness of the steel that we use for the inlet and outlet. Some competitors have used thinner materials not only in the body, but also on the inlet and outlet which compromises the over all integrity of the muffler. Grand Rock’s M-465 uses a semi-domed top on our muffler. This prevents water from settling on the top and creating corrosion. Other economy mufflers have a flat or indented top which collects moisture and promotes rust. Grand Rock’s M-465 features fully automated welded construction. Some economy mufflers use crimp and spot welded construction. WFC Series Clamps • OUR PREMERE & EXCLUSIVE CLAMP! • LAP-JOINTS (Step Clamp) • Heaviest in the Industry • 304 Bright Stainless or Aluminized Steel • Unique Grade-8 Reversible Hardware. one-hand tightening • Welded Flap prevents leakage at closing point • ONLY AVAILABLE FROM GRAND ROCK! And Made in the USA! • The Preferred Pre-Formed Clamp! WFC Series Clamps WFC-5SS Single Boxed Units or Bulk Pack GRE-PF Series Clamps GRE-PF5SS GRE-PF Series Clamps • Unique Grade-8 Reversible Hardware. one-hand tightening same as WFC Series clamps. • 304 Bright Stainless, Polished Stainless, or Aluminized • MADE IN THE USA • Available Pre-Assembled bulked or boxed in 12pc cartons. (Not individually boxed) GRE-AS Series Clamps • 1.25” Wide Strap Clamp • 430 Bright Stainless, Polished Stainless, or Aluminized • Available individual bagged or in 10pc bulk cartons. • Made In The USA GRE-AS5SS Y-Pipes Mufflers & Catalytic Mufflers Clamps Reducers R5I-4OA Refers to Reducer ID DIA OD DIA Overall Length is 8” I = Diameter of expanded side O = Diameter of unexpanded side
5 Lengths of tube with double expansion. Connects two sections together. Westfalia Triple-S Flex Hose PRODUCT WARRANTY TERMS AND CONDITIONS: Warranty coverage begins on the date and mileage that the part is purchased by the user and expires when the specified numbers of years have passed. Ultra Premium Flexible Tubing Warranty PRODUCT WARRANTY TERMS AND CONDITIONS: Warranty coverage begins on the date and mileage that the part is purchased by the user and expires when the specified numbers of years have passed.
6 PART NO. PB-15329 • Compares to: 14-15329 PART NO. PB-13822 4-13822 PART NO. PB-13395 • Compares to: 14-13395 PART NO. PB-13430 • Compares to: 14-13430 • Available in Stainless Steel (see page D1-D20) PART NO. PB-15353Y • Compares to: 14-15353-0150 & 14-13944-0150 • Available in Stainless Steel (see page D1-D20) PART NO. PB-15073 : 14-15073 inless Steel (see page D1-D20 PART NO. PB-09456 • Compares to: 14-09456 • Available in Stainless Steel (see page D1-D20) PART NO. PB-13055Y • Compares to: 14-13055 • Available in Stainless Steel (see page D1-D20) PART NO. PB-13002 • Compares to: 14-13002 • Available in Stainless Steel (see page D1-D20) PART NO. PB-13394 : 14-13394 inless Steel (see page D1-D20) PART NO. PB-13433 • Compares to: 14-13433 • Available in Stainless Steel (see page D1-D20) T NO. PB-13056 • Compares to: 14-13056 • Available in Stainless Steel (see page D1-D20) 5" OD 5" OD 5" OD 5" OD 5" OD 5" ID 90° 1-800-321-3674 www.grandrock.com 171 HEAVY DUTY TRUCKS PETERBILT PART NO. PB-13394 • Compares to: 14-13394 PART NO. PB-09456 • Compares to: 14-09456 5" OD 5" ID 5" ID 90° 90° PART NO. PB-13395 • Compares to: 14-13395 5" OD 5" ID 75° PART NO. PB-13433 • Compares to: 14-13433 5" OD 5" ID PART NO. PB-15353Y • Compares to: 14-15353-0150 & 14-13944-0150 PART NO. PB-13055Y • Compares to: 14-13055 5" OD 5" ID 5" OD 5" OD 5" OD 5" OD HEAVY DUTY PETERBILT 2018CatalogSinglePagesMay2018.indd 171 6/19/18 11:49 PM 5" OD 5" OD C CHROME STAINLESS STEEL S S S S S S S O ATERMARET PETERBILT B4 -D20) PART NO. KW-14764R • Compares to: K180-14764 PART NO. KW6-14764LC • Compares to: K180-14764CP PART NO. KW7-14764RC • Compares to: K180-14764RCP PART NO. KW-14729LC • Compares to: K180-14729CP PART NO. KW-14764LC pares to: K180-14764C PART NO. KW6-14764RC • Compares to: K180-14764RCP PART NO. KW-1317LC • Compares to: M66-1317CP PART NO. KW- • Compares to: K1 C C C 5" OD 5" ID 90° 45° 5" ID 6" OD 5" ID 6" OD 5" ID C C C C C OD 5" ID 7" OD 5" ID 5" OD 30° 5" ID 5" OD 5" ID 1-800-321-3674 www.grandrock.com 135 HEAVY DUTY TRUCKS KENWORTH PART NO. KW6-14764RC • Compares to: K180-14764RCP 6" OD 6" OD 5" ID ROME CHROME 5" OD 90° PART NO. KW-14764R • Compares to: K180-147 5" ID 5" OD 90° 45° 5" ID ° PART NO. KW-14764RC • Compares to: K180-14764RCP 5" ID 5" OD 90° 45° ROME CHROME HEAVY DUTY KENWORTH 6/19/18 11:49 PM 1-800-321-3674 www.grandrock.com HEAVY DUTY TRUCKS KENWORTH PART NO. KW6-14764LC • Compares to: K180-14764CP PART NO. KW6-14764RC • Compares to: K180-14764RCP 6" OD 6" OD 5" ID 5" ID CHROME CHROME PART NO. KW-14764L 5" ID 5" OD 90° 45° PART NO. KW-14764R -14764R 5" ID 5" OD 90° 45° PART NO. KW-14764LC • Compares to: K180-14764CP 5" ID 5" OD 90° 45° PART NO. KW-14764RC • Compares to: K180-14764RCP 5" OD 90° CHROME CHROME HEAVY DUTY KENWORTH 2018CatalogSinglePagesMay2018.indd 135 6/19/18 11:49 PM 1-800-321-3674 www.grandrock.com 135 HEAVY DUTY TRUCKS KENWORTH -14764LC 80-14764CP PART NO. KW6-14764RC • Compares to: K180-14764RCP 6" OD 6" OD 5" ID CHROME CHROME 4764L 80-14764 5" OD 90° 45° PA • Co 5" ID 5" OD 90° 45° 4764LC 80-14764CP 5" ID 90° 45° PART NO. KW-14764RC • Compares to: K180-14764RCP 5" ID 5" OD 90° 45° CHROME CHROME HEAVY DUTY KENWORTH 4 www.grandrock.com 135 HEAVY DUTY TRUCKS KENWORTH PART NO. KW6-14764LC • Compares to: K180-14764CP PART NO. KW6-14764RC • Compares to: K180-14764RCP 6" OD 6" OD 5" ID 5" ID CHROME CHROME PART NO. KW-14764L • Compares to: K180-14764 5" ID 5" OD 90° 45° PART NO. KW-14764R Compares to: K180-14764R 5" ID 5" OD 90° 45° PART NO. KW-14764LC • Compares to: K180-14764CP 5" ID 5" OD 90° 45° PART NO. KW-14764RC • Compares to: K180-14764RCP 5" ID 5" OD 45° CHROME CHROME HEAVY DUTY KENWORTH 2018CatalogSinglePagesMay2018.indd 135 6/19/18 11:49 PM 5" ID KENWORTH PART NO. FL-17123-024 • Compares to: 04-17123-024 PART NO. FL-17131-009 • Compares to: 04-17131-009 (long) PART NO. FL-17476-000 PART N • Compar PART NO. FL-17123-002 • Compares to: 04-17123-002 PART NO. FL-17131-001 • Compares to: 04-17131-001 (short) PART NO. FL-17476-001C • Compares t PART NO. FL-17129-009 • Compares to: 04-17129-009 PART NO. FL-21016-002 • Compares to: 04-21012-002 PART NO. FL-17131-006 • Compares to: 04-17131-006 (medium) PART NO. FL-16759-012 • Compares to: 04-16759-0 5" OD 5" OD 5" OD 5" OD LONG 5" OD MEDIUM 5" OD 5" OD SHORT 5" OD 5" OD 5" O 5" OD EXHAUST PIPE C CHROME STAINLESS STEEL S 1-800-321-3674 www.grandrock.com 111 HEAVY DUTY TRUCKS FREIGHTLINER PART NO. UHS • Compares to: 04-16566-003 PART NO. FL-16759-012 • Compares to: 04-16759-012 PART NO. FL-17129-009 • Compares to: 04-17129-009 EXHAUST PIPE 7" • Compares to: A04-17476-000 5" OD 5" OD 5" OD 5" OD CHROME HEAVY DUTY FREIGHTLINER 2018CatalogSinglePagesMay2018.indd 111 6/19/18 11:49 PM 1-800-321-3674 www.grandrock.com 111 VY DUTY TRUCKS FREIGHTLINER PART NO. UHS • Compares to: 04-16566-003 EXHAUST PIPE 7" PART NO. FL-17476-001C • Compares to: A04-17476-001 5" OD 5" OD CHR HEAVY DUTY FREIGHTLINER 6/19/18 11:49 PM OE AFTERMARKET B33 PART NO. FL-16460-009 • Compares to: 04-16460-009 PART NO. FL-16639-001 • Compares to: 04-16639-001 • Available in Stainless Steel (see page D1-D20) PART NO. FL-22700-000 • Compares to: 04-22700-000 PART NO. FL-19105-014 • Compares to: 04-19105-014 PART NO. UHS • Compares to: 04-16566-003 PART NO. FL-16885-024 (SHORT) • Compares to: 04-16885-024 PART NO. FL6-09657-013C • Compares to: 04-09657-013 PART NO. FL-19297-001 • Compares to: A04-19297-001 PART NO. FL-16621-001 • Available in Stainless Steel (see page D1-D20) PART NO. FL-19610-000 • Compares to: 04-19610-000 PART NO. FL-09657-013C • Compares to: 04-09657-013 • Available in Stainless Steel (see page D1-D20) PART NO. FL-16885-041 (LONG) • Compares to: 04-16885-041 • Available in Stainless Steel (see page D1-D20) C C 5" OD 5" ID 5" ID EXHAUST PIPE 7" 1-800-321-3674 www.grandrock.com 10 PART NO. FL-16460-009 • Compares to: 04-16460-009 5" OD 5.75" OD PART NO. FL-19105-014 • Compares to: 04-19105-014 PART NO. FL-19297-001 • Compares to: A04-19297-001 PART NO. FL-16639-001 • Compares to: 04-16639-001 5" OD 5" ID PART NO. UHS • Compares to: 04-16566-003 EXHAUST PIPE 7" PART NO. FL-16621-001 • Compares to: 04-16621-001 5" OD 5" ID FREIGHTLINER HEAVY DUTY TRUCKS HEAVY DUTY FREIGHTLINER 2018CatalogSinglePagesMay2018.indd 108 6/19/18 11:49 PM 5" ID 5" ID 5" ID 5" OD 6" OD 90° 5" OD 90° 5" OD 5" ID C CHROME STAINLESS STEEL S OE AFTERMARKET FREIGHTLINER B32 -024 • Compares to: 04-17123-024 PART NO. FL-17131-009 • Compares to: 04-17131-009 (long) PART NO. FL-17476-000 • Compares to: A04-17476-000 PART NO. UHS • Compares to: 04-1656 • Compares to: 04-17123-002 PART NO. FL-17131-001 • Compares to: 04-17131-001 (short) PART NO. FL-17476-001C • Compares to: A04-17476-001 PART NO. FL-17129-009 • Compares to: 04-17129-009 PART N • Compares to: 04-21012-002 PART NO. FL-17131-006 • Compares to: 04-17131-006 (medium) PART NO. FL-16759-012 • Compa 5" O 1-800-321-3674 www.grandrock.com 110 PART NO. FL-17123-024 • Compares to: 04-17123-024 PART NO. FL-21016-002 • Compares to: 04-21012-002 PART NO • Compares to: 04-17123-002 5" OD 5" OD 5" OD PART NO. FL-17131-009 • Compares to: 04-17131-009 (long) PART NO. FL-17131-001 • Compares to: 04-17131-001 (short) PART NO. FL-17131-006 • Compares to: 04-17131-006 (medium) 5" OD NG SHORT MEDIUM 5" OD 5" OD 5" OD 5" OD FREIGHTLINER HEAVY DUTY TRUCKS HEAVY DUTY FREIGHTLINER 2018CatalogSinglePagesMay2018.indd 110 1:49 PM 5" OD 5" OD LONG 5" OD MED 5" OD SHORT 5" OD 5" OD 5" OD EXHAUST PIPE 7" C C CHROME STAINLESS STEEL S 5" OD OE AFTERMA KET FREIGHTLINER B33 NO. KW-10742RC ares to: K180-10742RCP NO. MK-583M2C ares to: 4ME-583M2C NO. PB7-13056C ares to: 14-13056CP NO. PB-13906LC ares to: 14-13906CP PART NO. KW-17876C • Compares to: K180-17876CP PART NO. PB-13056C • Compares to: 14-13056CP PART NO. PB6-13056CID • Compares to: 14-13056CP PART NO. PB-13906RC • Compares to: 14-13906RCP 5" ID 5" OD 321-3674 randrock.com 158 -597M 4ME-597M 5" OD PART NO. MK-4946 • Compares to: 4ME-4946 5" OD -4845 4ME-4845 5" OD PART NO. MK-583M • Compares to: MK-583M 5" OD 5" OD -583M2C 4ME-583M2C CHROME 5" OD HEAVY DUTY TRUCKS 8.indd 158 6/19/18 11:49 PM 5" OD 5" OD 5" OD 172 5" OD PART NO. PB7-13056C • Compares to: 14-13056CP 5" OD 7" OD 5" OD PART NO. PB-13056C • Compares to: 14-13056CP 5" OD 5" OD 5" OD PART NO. PB7-13056CID • Compares to: 14-13056CP 5" OD 7" ID CHROME CHROME CHROME CHROME CHROME HEAVY DUTY TRUCKS 6/19/18 11:49 PM 7" OD 5" OD 6" ID E REPLACEMENTS PART NO. KW-13088 • Compares to: K180-13088 PART NO. KW-12975 • Compares to: K180-12975 • Available in Stainless Steel (see page D1-D20) PART NO. KW-17876 • Compares to: K180-17876 PART NO. KW-6326 • Compares to: K180-6326 • Available in Stainless Steel (see page D1-D20) PART NO. KW-1 • Compares to: K180 PART NO. KW-1876 M66-1876 PART NO. KW-17876C • Compares to: K180-17876CP PART NO. KW-8047 • Compares to: K180-8047 PART NO. KW-10742RC • Compares to: K180-10742RCP PART NO. KW-14765 • Compares to: K180-14765 PART NO. KW-5AEY • Early single muer • Compares to: KW-5AEY2M for early single muffler C CHROME STAINLESS STEEL S C 1-800-321www.grand 150 PART NO. KW-6326 • Compares to: K180-6326 5" OD 5" OD 32° 32° PART NO. KW-13088 • Compares to: K180-13088 5" OD 5" OD 5" OD PART NO. KW-8047 • Compares to: K180-8047 PART NO. KW-10742LC • Compares to: K180-10742CP PART NO. KW-10742RC • Compares to: K180-10742RCP 5" OD 5" OD 5" OD 5" ID 5" ID 90° PART NO. KW-12975 • Compares to: K180-12975 5" OD 5" OD 5" ID 90° 90° CHROME CHROME ORTH HEAVY DUTY TRUCKS HEAVY DUTY KENWORTH 2018CatalogSinglePagesMay2018.indd 150 6/19/18 11:49 PM 5" OD 5" ID 90° 5" OD 5" OD 5" ID 90° 90° 5" OD 5" ID C PART NO. KW-19286C • Compares to: K180-19286CP 5" OD 5" ID 5" OD 5" 5" OD 5" OD 5 5" OD 5" ID 5" OD C 5" OD 5" OD OE AFTERM RKET KENWORTH B28 PART NO. FL-16639-001 • Compares to: 04-16639-001 • Available in Stainless Steel (see page D1-D20) PAR • Compares to: 04-22700-000 PART NO. UHS • Compares to: 04-16566-003 PART NO. FL-16885-024 (S • Compares to: 04-16885-024 PART NO. FL6-09657-013C • Compares to: 04-09657-013 PART NO. FL-16885-041 (LONG) • Compares to: 04-16885-041 • Available in Stainless Steel (see page D1-D20) 5" OD 5" ID EXHAUST P 7" 5" OD 5" ID 5" OD 6" OD 90° 1-800-321www.grandrock 109 HEAVY DUTY TRUCKS FREIGHTL PART NO. FL-09657-013C • Compares to: 04-09657-013 PART NO. FL6-09657-013C • Compares to: 04-09657-013 5" OD 5" OD 5" OD 6" OD 90° 90° PART NO. FL-16885-041 • Compares to: 04-16885-041 PART NO. FL-22700-000 • Compares to: 04-22700-000 PART NO. FL-16885-024 • Compares to: 04-16885-024 5" OD 5" OD 5" ID 5" ID 5" ID CHROME CHROME PART NO. • Compares to: 04-19610-000 5" OD 5" ID 2018CatalogSinglePagesMay2018.indd 109 5" ALUMINIZED & CHROME ELBOWS Freightliner #04-17094-014 Freightliner #04-17094-012 FREIGHTLINER Elbow - LH 5" Kenworth #K180-14764L KENWORTH 5" INTERMEDIATE PIPE, T800 Kenworth #K180-14122 PETERBILT 5", 56° Elbow, 379 Conventional Peterbilt #14-13056 5" Aluminized 359 Conventional Y-Pipe Peterbilt #14-04055 5" Aluminized Pipe 379 Conventional Peterbilt #14-13055 5" Aluminized Unibilt Y-Pipe (Shown) Peterbilt #14-13944-0150 Freightliner #A04-17476-000 Chrome Freightliner #A04-17476-001 5" Aluminized Elbows 5" Chrome Elbows Freightliner #04-16621-001 5" Y-Adapter Freightliner #04-16885-041 Elbow - RH 5" Kenworth #K180-14764R Freightliner #04-17123-024 5" Exhaust Elbow C CHROME STAINLESS STEEL S PART NO. FL-17094-012 • Compares to: 04-17094-012 • Available in Stainless Steel (see page D1-D20) PART NO. FL-17094-013 • Compares to: 04-17094-012 with Pyro Fitting PART NO. FL-17094-016 • Compares to: 04-17094-016 PART NO. FL-17094-030 • Compares to: 04-17094-016 with Pyro Fitting PART NO. FL-17094-014 • Compares to: 04-17094-014 • Available in Stainless Steel (see page D1-D20) PART NO. FL-17094-020 • Compares to: 04-17094-020 PART NO. FL-17094-015 • Compares to: 04-17094-014 with Pyro Fittng PART NO. FL-15653-000 & FL-15653-002 • Compares to: 04-15653-000 (aluminized) • Available in Stainless Steel (see page D1-D20) PART NO. FL-15653-001C & FL-15653-003C • Compares to: 04-15653-001 (chrome) • Available in Stainless Steel (see page D1-D20) C 5" OD 5" OD 5" OD 5" OD 5" OD FLD and OTHER MODELS PART NO. FL-13974 • Compares to: A04-1397 0 PART NO. FL-15654-0 • Compares to: 04-15654-000 • Available in Stainless Steel (see page D1-D20) PART NO. FL-15077-0 • Compares to: 04-15077-000 5" OD 5" OD 90° 1-800-321-3674 www.grandrock.com 115 VY DUTY TRUCKS FREIGHTLINER HEAVY DUTY FREIGHTLINER 5" OD 5" OD PART NO. FL-17094-012 • Compares to: 04-17094-012 PART NO. FL-17094-013 • Compares to: 04-17094-012 with Pyro Fitting PART NO. FL-17094-016 • Compares to: 04-17094-016 PART NO. FL-17094-030 • Compares to: 04-17094-016 with Pyro Fitting PART NO. FL-15653-000 & FL-15653-002 • Compares to: 04-15653-000 (aluminized) PART NO. FL-15653-001C & FL-15653-003C • Compares to: 04-15653-001 (chrome) 5" OD PART NO. FL-17094-014 • Compares to: 04-17094-014 PART NO. FL-17094-020 • Compares to: 04-17094-020 PART NO. FL-17094-015 • Compares to: 04-17094-014 with Pyro Fittng 5" OD 5" OD PART NO. FL-15654-0 • Compares to: 04-15654-000 5" OD 5" OD PART NO. FL-13974 • Compares to: A04-139 0 5" OD 5" OD 5" OD FLD and Other Models 2018CatalogSinglePagesMay2018.indd 115 6/19/18 11:49 PM " OD OE AFTERMARKET FREI HTLINER B36 5"INTERMEDIATE PIPE, W900B T600, T800 Kenworth #K180-6326 PART NO. T588-6PYRO • Compares to: K130-166 PART NO. KW-18531 • Compares to: K180-18531 PART NO. KW-14766 • Compares to: K180-14766 • Available in Stainless Steel (see page D1-D20) PART NO. KW-1215 • Compares to: M66-1215 PART NO. KW-15565 • Compares to: K180-1556 • Available in Stainless Steel (se PART NO. KW-8049 • Compares to: K180-8049 • Available in Stainless Steel (se PART NO. KW-18028 • Compares to: K180-1802 STACK MOUNT BRAC • Available in Stainless Steel (se Bolts directly onto factory 5" OD 5" OD 5" OD 5" OD 47° PART NO. D MB-5KWS MB-6KWS MB-7KWS 1-800-321-3674 www.grandrock.com PART NO. KW-14766 • Compares to: K180-14766 5" OD 5" OD 5" OD PART NO. KW-18028 • Compares to: K180-1802 5" OD PART NO. KW-1215 • Compares to: M66-1215 PART NO. KW-1214 • Compares to: M66-1214 STACK MOUNT BRACKETS • Polished Stainless Steel PART NO. DIA. MB-5KWS 5" MB-6KWS 6" MB-7KWS 7" Bolts directly onto factory cab brackets PART NO. KW-18959 • Compares to: K180-1895 5" OD DIA KENWORTH HEAVY DUTY TRUCKS HEAVY DUTY KENWORTH 2018CatalogSinglePagesMay2018.indd 134 5" OD DIA KENWO Y-Pipe Kenworth #K180-14766 PART NO. PB-15329 • Compares to: 14-15329 PART NO. PB-13822 • Compares to: 14-13822 PART NO. PB-13395 • Compares to: 14-13395 PART NO. PB-13430 • Compares to: 14-13430 • Available in Stainless Steel (see page D1-D20) NO. PB-15353Y • Compares to: 14-15353-0150 & 14-13944-0150 • Available in Stainless Steel (see page D1-D20) PART NO. PB-15073 • Compares to: 14-15073 • Available in Stainless Steel (see page D1-D20) PART NO. PB-09456 • Compares to: 14-09456 • Available in Stainless Steel (see page D1-D20) PART NO. PB-13055Y • Compares to: 14-13055 • Available in Stainless Steel (see page D1-D20) 5" OD 5" OD 5" OD 5" OD 5" OD 5" ID 90° 1-800-321-3674 www.grandrock.com 171 HEAVY DUTY TRUCKS PETERBILT • Compares to: 14-13394 PART NO. PB-09456 • Compares to: 14-09456 5" OD 5" ID 5" ID 90° 90° PART NO. PB-13395 • Compares to: 14-13395 5" OD 5" ID 75° PART NO. PB-13433 • Compares to: 14-13433 5" OD 5" ID PART NO. PB-15353Y • Compares to: 14-15353-0150 & 14-13944-0150 PART NO. PB-13055Y • Compares to: 14-13055 5" OD 5" ID 5" OD 5" OD 5" OD 5" OD HEAVY DUTY PETERBILT 2018CatalogSinglePagesMay2018.indd 171 6/19/18 11:49 PM 5" OD S S S 45° ELBOWS Style ID-OD Dia. Lengths Centerline Aluminized Chrome 3" 8-8 3.5 - 3.5" 9-9 5 - 4" 6-6 4.5 - 9-9 4.5 - 5" 8-8 6 - 12-12 6 - 15-15 6 - MISCELLANEOUS ELBOWS Style ID-OD Dia. Bend Angle Lengths Centerline Aluminized 5" 30° 4-4 4 30° 4-4 6 60° 10-10 6 Style OD-OD Dia. Bend Angle Lengths Centerline Aluminized 5" 15° 4-4 6 30° 4-4 6 Exhaust Accessories Elbows GRRFL-17094-012 GRRFL-17476-000 GRRFL-16621-001 GRRFL-16885-041 GRRFL-17123-024 GRRL3545-0909A GRRL515-0404SA GRRL530-0404SA GRRKW-14764LC GRRL345-0808A GRRL445-0606A GRRL445-0909A GRRL545-0808A GRRL545-1212A GRRL545-1515A GRRL530-0404A GRRL530-0404A GRRL560-1010A GRRKW-14764L GRRPB-13056C GRRPB-04055Y GRRPB-13055Y GRRPB-15353Y GRRKW-14764R GRRKW-14122 GRRKW-14766 GRRKW-6326
7 ELBOWS 90° ELBOWS Style ID-OD 90° ELBOWS Style OD-OD 45° ELBOWS Style OD-OD Dia. Lengths Centerline Aluminized Chrome 3" 10-10 3.5 - 3.5" 12-12 5 - 16-16 5 - 4" 8-8 4.5 - 12-12 4.5 - 15-15 4.5 - 18-18 4.5 - 5" 10-10 6 - 12-12 6 - 15-15 6 18-18 7.5 HV 42938 - 6" 13-13 7 - Dia. Lengths Centerline Aluminized Chrome 3" 7-7 3.5 - 10-10 3.5 - 3.5" 3.5-3.5 3.5 - - 12-12 5 - 4" 6.5-6.5 4.5 - 8-8 4.5 - 10-10 4.5 - 12-12 4.5 - 12-12 4.5 HV 41473 - 18-18 4.5 5" 8-8 6 - 7.5-13.5 5.5 SX 42253 - 12-12 6 - 15-15 6 - 18-18 6 - 15-15 6 - 17.5-17.5 8 - 15-15 6 - 18-18 10 HV 42940 - Dia. Lengths Centerline Aluminized Chrome 3" 8-8 4 - 3.5" 9-9 5 - 4" 6-6 4.5 - 9-9 4.5 - 12-12 4.5 - 5” 8-8 5.5 - 8-8 8 HV 41431 - 12-12 8 - CONNECTORS - REDUCERS O.D. - O.D. CONNECTOR O.D. - O.D. REDUCER I.D. - I.D. CONNECTOR I.D. - I.D. REDUCER I.D. - O.D. CONNECTOR I.D. - O.D. REDUCER O.D. - I.D. REDUCER P/N I.D. - I.D. Length 3-3 8 3.5-3.5 8 4-4 8 5-5 8 P/N I.D. - I.D. Length 4-3 8 4-3.5 8 5-4 8 6-5 8 P/N I.D. - O.D. Length 3.5 I.D. 18 GRRCN-46A 4-4 6 4 I.D. 18 GRRS4-24EXA 4-4 24 GRRCN-56A 5-5 6 5-5 18 GRRS5-24EXA 5-5 24 P/N I.D. - O.D. Length 5-4 8 6-5 8 P/N O.D. - I.D. Length 3.5-3 8 4-3 8 4-3.5 8 5-4 8 P/N O.D. - O.D. Length 4-4 8 P/N O.D. - O.D. Length 4-3 8 5-4 8 6-5 8 PART NO. REDUCER TYPE "A" DIMENSION DI R6I-5IC ID/ID 6" R5I-4IC ID/ID 5" R7I-5IC ID/ID 7" R6I-4IC ID/ID 6" R5O-4IC OD/ID 5" R6O-5IC OD/ID 6" R7O-5IC OD/ID 7" R4O-35IC OD/ID 4" R7O-5OC OD/OD 7" R6O-5OC OD/OD 6" R5O-4OC OD/OD 5" R6I-5OC ID/OD 6" R5I-4OC ID/OD 5" R7I-5OC ID/OD 7" COUPLER PART NO. REDUCER TYPE "A" DIMENSION DI CP-58C ID/ID 5" CP-68C ID/ID 6" CP-78C ID/ID 7" CP-48C ID/ID 4" CP-88C ID/ID 8" CN-56C ID/OD 5" CN-66C ID/OD 6" CN-46C ID/OD 4" Style 1 Coupler I.D. - I LENGTH A B REDUCERS REDUCERS I.D. - I.D. ID DIA. ID DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 3" 2.5" 8" R3I-25IA 3.5" 3" 8" R35I-3IA - 4" 3" 8" R4I-3IA - 4" 3.5" 8" R4I-35IA - 5" 4" 8" R5I-4IA R5I-4IC 5" 4.5" 8" R5I-45IA - 6" 4" 8" R6I-4IA - 6" 5" 8" R6I-5IA R6I-5IC 7" 5" 8" - R7I-5IC 8" 5" 8" R8I-5IA - Reducers ALUMINIZED CHROME REDUCERS O.D. - O.D. CONNECTORS, REDUCERS AND REPAIR SECTIONS LENGTH B A LENGTH B A Style 2 O.D. Style 1 I.D. - I.D. GRAND ROCK CHROME CHROME UNIVERSAL REDUCE A27 REDUCERS PART NO. REDUCER TYPE "A" DIMENSION "B" DIMENSION OVERALL LENGTH STYLE ADDITIONAL INFO R6I-5IC ID/ID 6" 5" 8" 1 R5I-4IC ID/ID 5" 4" 8" 1 R7I-5IC ID/ID 7" 5" 8" 1 R6I-4IC ID/ID 8" 1 CALL FOR PRICE AND AVAILABILITY R5O-4IC OD/ID 8" 2 R6O-5IC OD/ID 8" 2 R7O-5IC OD/ID 7" 5" 8" 2 R4O-35IC OD/ID 8" 2 R7O-5OC OD/OD 8" 3 R6O-5OC OD/OD 8" 3 CALL FOR PRICE AND AVAILABILITY R5O-4OC OD/OD 8" 3 CALL FOR PRICE AND AVAILABILITY R6I-5OC ID/OD 8" 4 R5I-4OC ID/OD 8" 4 R7I-5OC ID/OD 8" 4 CO C PART NO. REDUCER TYPE "A" DIMENSION "B" DIMENSION OVERAL LENGTH DITIONAL INFO CP-58C ID/ID 5" 5" 8" 1 CP-68C ID/ID 6" 6" 8" 1 CP-78C ID/ID 7" 7" 8" 1 CP-48C ID/ID 4" 4" 8" 1 CP-88C ID/ID 8" 8" 8" 1 CALL FOR PRICE AND AVAILABILITY CN-56C ID/OD 5" 5" 6" 2 CN-66C ID/OD 6" 6" 6" 2 CALL FOR PRICE AND AVAILABILITY CN-46C ID/OD 4" 4" 6" 2 CALL FOR PRICE AND AVAILABILITY Style 1 Coupl LENGTH A B LENGTH A B I.D. - O.D. 1-800-321-3674 www.grandrock.com 42 Reducers ED S O.D. - REDUCERS I.D. - 0.D. OD ID DIA. L MINIZED RT NO. CHROME PART NO. 3" 2.5" 3O-25IA - 3.5 3" 35O-3IA - 4" 3" O-3IA - 4" 3.5" 8" R4O-35IA - 4.5" 4" 8" - - 5" 4" 8" R5O-4IA R5O-4IC 5" 4.5" 8" R5O-45IA - 6" 5" 8" R6O-5IA R6O-5IC 7" 5" 8" - R7O-5IC 8" 5" 8" R80-5IA – ID DIA. OD DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 3.5" 3" 8" R35I-3OA - 4" 3" 8" R4I-3OA - 4" 3.5" 8" R4I-35OA - 4.5" 4" 8" R45I-4OA - 5" 4" 8" R5I-4OA R5I-4OC 6" 4" 8" R6I-4OA - 6" 5" 8" R6I-5OA R6I-5OC 7" 5" 8" - R7I-5OC 5" 8" R8I-5 - NEC REDUCERS AND REPAIR SECTIONS 2018CatalogSinglePagesMay2018.indd 42 6/19/18 1 LENGTH B A GTH B A LENGTH B A LENGTH B A Style 2 O.D. Style 1 I.D. - I.D. Style 4 I.D. - O.D. O.D. - O.D. GRAND ROCK CHROME CHROME UNIVERSAL REDUCE ONNECTOR A27 REDUCERS PART NO. REDUCER TYPE "A" DIMENSION "B" DIMENSION OVERALL LENGTH STYLE R6I-5IC ID/ID 6" 5" 8" 1 R5I-4IC ID/ID 5" 4" 8" 1 R7I-5IC ID/ID 7" 5" 8" 1 R6I-4IC ID/ID 6" 4" 8" 1 R5O-4IC OD/ID 5" 4" 8" 2 R6O-5IC OD/ID 6" 5" 8" 2 R7O-5IC OD/ID 7" 5" 8" 2 R4O-35IC OD/ID 4" 3.5" 8" 2 R7O-5OC OD/OD 7" 5" 8" 3 R6O-5OC OD/OD 6" 5" 8" 3 R5O-4OC OD/OD 5" 4" 8" 3 R6I-5OC ID/OD 6" 5" 8" 4 R5I-4OC ID/OD 5" 4" 8" 4 R7I-5OC ID/OD 7" 5" 8" 4 COUPLERS AND CONNEC PART NO. REDUCER TYPE "A" DIMENSION "B" DIMENSION OVERALL LENGTH STYLE CP-58C ID/ID 5" 5" 8" 1 CP-68C ID/ID 6" 6" 8" 1 CP-78C ID/ID 7" 7" 8" 1 CP-48C ID/ID 4" 4" 8" 1 CP-88C ID/ID 8" 8" 8" 1 CN-56C ID/OD 5" 5" 6" 2 CN-66C ID/OD 6" 6" 6" 2 CN-46C ID/OD 4" 4" 6" 2 Style 1 Coupler I.D. - I.D. LENGTH A B LENGTH Style 2 C Reducers REDUCERS O.D. - I.D. REDUCERS I.D. - 0.D. OD DIA. ID DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 3" 2.5" 8" R3O-25IA - 3.5" 3" 8" R35O-3IA - 4" 3" 8" R4O-3IA - 4" 3.5" 8" R4O-35IA - 4.5" 4" 8" - - 5" 4" 8" R5O-4IA R5O-4IC 5" 4.5" 8" R5O-45IA - 6" 5" 8" R6O-5IA R6O-5IC 7" 5" 8" - R7O-5IC 8" 5" 8" R80-5IA – ALUMINIZED CHROME CONNECTORS, REDUCERS AND REPAIR SECTIONS REDUCERS LENGTH B A LENGTH B A LENGTH B A Style 2 O.D. - I.D. Style 1 I.D. - I.D. Style 3 O.D GRAND ROCK CHROME CHROME UNIVERSAL REDUCERS & CO A27 REDUCERS PART NO. REDUCER TYPE "A" DIMENSION "B" DIMENSION OVERALL LENGTH STYLE ADDITIONAL INFO R6I-5IC ID/ID 6" 5" 8" 1 R5I-4IC ID/ID 5" 4" 8" 1 R7I-5IC ID/ID 7" 5" 8" 1 R6I-4IC ID/ID 6" 4" 8" 1 CALL FOR PRICE AND AVAILABILITY R5O-4IC OD/ID 5" 4" 8" 2 R6O-5IC 5" 8" 2 R7O-5I 5" 8" 2 R4O-35I 3.5" 8" 2 R7O-5OC 5" 8" 3 R6O-5OC 5" 8" 3 CALL FOR PRICE AND AVAILABILITY R5O-4OC 4" 8" 3 CALL FOR PRICE AND AVAILABILITY R6I-5OC 5" 8" 4 R5I-4OC 4" 8" 4 R7I-5OC 5" 8" 4 COUPLERS AND CONNECTORS ER "A" DIMENSION "B" DIMENSION OVERALL LENGTH STYLE ADDITIONAL INFO CP-58C ID/ID 5" 5" 8" 1 6" 6" 8" 1 7" 7" 8" 1 4" 4" 8" 1 8" 8" 8" 1 CAL ILITY CN-56C ID/OD 5" 5" 6" 2 6" 6" 6" 2 CAL ABILITY 4" 4" 6" 2 CAL ABILITY I.D. - I.D. LENGTH A B LENGTH A B Style 2 Connector 321-3674 ww rock.com 43 CE D. . . IA. GTH ALUMINIZED PART NO. CHROME PART NO. " " R3I-25IA " R35I-3IA - " R4I-3IA - " " R4I-35IA - " R5I-4IA R5I-4IC " " R5I-45IA - " R6I-4IA - 6" 8" R6I-5IA R6I-5IC 7" 5" 8" - R7I-5IC 8" 5" 8" R8I-5IA - Reducers OD DIA. OD DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 3" 2.5" 8" R3O-25OA - 3.5" 3" 8" R35O-3OA - 4" 3" 8" R4O-3OA - 4" 3.5" 8" R4O-35OA - 4.5" 4" 8" R45O-4OA - 5" 4" 8" R5O-4OA - 5" 4.5" 8" R5O-45OA - 6" 4" 8" R6O-4OA - 6" 5" 8" R6O-5OA - 7" 5" 8" R70-50A R7O-5OC 0A - REDUCERS O.D. - O.D. CONNECTORS, REDUCERS AND REPAIR SECTIONS 2018CatalogSinglePage indd 6/19/18 11:48 PM N B LENGTH B A LENGTH B A LENGTH Style 2 O.D. - I.D. St Style 4 I.D. - O.D. Style 3 O.D. - O.D. GRAND ROCK CHROME CHROME UNIVERSAL CERS & CON RS A27 Elbows Connectors / Reducers GRRL590-1818SA-8 GRRL3590-1212SA GRRL3545-0909SA GRRL3590-1212A GRRL3590-1616A GRRL390-0707SA GRRL390-1010SA GRRL490-6565SA GRRL490-0808SA GRRL490-1010SA GRRL490-1212SA GRRL490-1818SA GRRL490-1818SC GRRL590-0808SA GRRL590-1212SA GRRL590-1515SA GRRL590-1818SA GRRL590-1515SC GRRL590-1515SC GRRL345-0808SA GRRL445-0606SA GRRL445-0909SA GRRL445-1212SA GRRL545-0808SA GRRL545-1212SA GRRL390-1010A GRRL490-0808A GRRL490-1212A GRRL490-1515A GRRL490-1818A GRRL590-1010A GRRL590-1212A GRRL590-1515A GRRL590-1515C GRRL690-1313A GRRS35-18EXA GRRR4I-35IA GRRS4-18EXA GRRS5-18EXA GRRR35O-3IA GRRR4O-35IA GRRCP-358A GRRR4I-3IA GRRR5I-4IA GRRR6I-5IA GRRR5I-4OA GRRR6I-5OA GRRR4O-3IA GRRR5O-4IA GRRS4-8SBA GRRR4O-3OA GRRR5O-4OA GRRR6O-5OA GRRCP-38A GRRCP-48A GRRCP-58A
8 STRAIGHT TUBING Bendable Aluminum Killed Draw Quality (AKDQ) Steel Tubing OD Length Gauge Thickness P/N 3" 10 ft. 14 0.069" 3.5" 10 ft. 14 0.069" 4" 10 ft. 14 0.069" 5" 10 ft. 16 0.060" OD Length P/N 5" 10 ft. ALUMINIZED STEEL TUBING ONE END SWAGED & SLOTTED OTHER END - O.D. FLEX TUBING 6 FOOT LENGTHS (fully extended) I.D. Stainless Aluminized 4" SX 46915 5" SX 46916 10 FOOT LENGTHS (fully extended) I.D. Stainless Aluminized 3" 3.5" SX 49106 4" - 5" - 6" - 25 FOOT LENGTHS (fully extended) I.D. Stainless Galvanized 4" 5" - PRE-CUT FLEX TUBING 3" Dia. 3.5" Dia. 4" Dia. 5" Dia. Length Galvanized Stainless Galvanized Stainless Galvanized Stainless Galvanized Stainless 12" - - - - - 18" - - 24" - - - - 36" - - - - - 48" - - - - - I.D. I.D. Style ID - ID 5 ID X 6 96" ID - Curve 96" ID- Angle GRRSP6-96EXC 6" DIAMETER REDUCED TO 5" I.D. AND O.D. O.D. END (NON FLARED - ANGLE) Dia. Length Aluminized Chrome 5" 48" - 108" - STACK PIPES - ANGLE CUT CLAMPS FOR SILICONE HOSE Lined Hose Clamps • Stainless Steel Band, Saddle, & Housing • 5/16" Hex Screw • Recommended application up to 40 lbs-in torque • Seal silicone & other soft hoses without damage • Inner Liner Extends under the perforations to protect the hose & prevents extrusions through the worm gear perforations P/N Min. to Max. Size (Inches) IDL5344 051 2-5/16 - 3-1/4 IDL5348 051 2-9/16 - 3-1/2 IDL5352 051 2-13/16 - 3-3/4 IDL5360 051 3-5/16 - 4-1/4 Tubing GRRS35-120SBA GRRS3-120SBA GRRS4-120SBA GRRS5-120SBA GRRS5-120EXA GRRSK6-96EXC GRRP5-108EXC GRRG15-3120 GRRSF-35120 GRRG18-4300 GRRG15-3518 GRRP5-48SBC GRRSF-3120 GRRSF-4120 GRRSF-5120 GRRSF-6120 GRRSF-4300 GRRSF-5300 GRRG15-412 GRRG15-512 GRRG15-318 GRRG15-418 GRRG15-518 GRRG15-424 GRRG15-524 GRRG15-524 GRRG15-436 GRRG15-536 GRRG15-536 GRRG15-448 GRRG15-548 GRRG15-548 GRRSF-472 GRRSF-572 GRRSF-512 GRRSF-418 GRRSF-518 GRRSF-424
9 Nominal Diameter A PS V-Band Clamps URER P/N TUBE DIA. A B APPLICATION BREEZE P/N UNIVERSAL VB-300C 2.50 3.74 0.20 Emissions CLAMP VT10318C02 VB-525D 5.00 5.81 0.21 Fits - FLARED CONNECTORS. VT10525 AIRESEARCH VB-461M 4.00 4.61 0.21 TEO-699 VT10461 VB-525D 5.00 5.81 0.21 4 VT10525 BLUEBIRD VB-321C 2.75 3.20 0.26 TA5.9L REPLACES BLUEBIRD #1334226 VB-321C 2.75 3.20 0.26 BIRD TC2000 SCHOOL BUS W/5.9L VB-413C 4.00 4.69 0.26 92-98 8.3L TURBO CUMMINS ALL AMERICAN VT10413 VB-461D 4.00 4.69 0.40 REPLACES BLUEBIRD #1250646 & #3116 VT10469 VB-461D 4.00 4.69 0.40 BLUEBIRD ALL AMERICAN W/CAT3116 /TURBO & #3116 VT10469 CATERPILLAR VB-419C 4.19 0.40 3208T# IW5455 VT10419 VB-461D 0.40 3208T # IW2431 & #3116 VT10469 VB-475C 0.40 3176T VT10475 VB-588C 5.00 5.88 0.40 3406, 3406B, 3176,T50 TURBO # 186917 VT10588-1 CUMMINS VB-321C 2.75 3.20 0.26 6BT5.9L, 6BTA5.9L # 3903652 VB-351I 3.50 4.25 0.40 VT555, VT-555 MANIFOLD VB-413C 4.00 4.69 0.26 8.3C CUMMINS # 3905216, for HX40 Turbo VT10413 VB-475C 4.00 4.75 0.40 L10 # 115774 VT10475 VB-532 5.00 5.53 0.24 04-07 5.9L CUMMINS# 52121285AA VB-588C 5.00 5.88 0.40 750, N, 88NT, NTC, VT, T50 TURBO # 186916 VTW10588-1 DETROIT DIESEL VB-475D 4.00 4.75 0.16 8.2LT # 154977 B Nominal Diameter A V-BAND CLAMPS V-BAND CLAMPS OE MANUFACTURER PART NO. TUBE DIAMETER A B APPLICATION UNIVERSAL VB-300C 2.5" 3.74 0.20 EMMISSIONS CLAMP VB-525D 5" 5.81 0.21 FITS FLARED CONNECTORS AIRESEARCH VB-461M 4" 4.61 0.21 TEO-699 VB-525D 5" 5.81 0.21 T1899, TH8A64 BLUEBIRD VB-321C 2.75" 3.20 0.26 6BT5.9L, 6BTA5.9L REPLACES BLUEBIRD #1334226 VB-321C 2.75" 3. 94-98 BLUEBIRD TC2000 SCHOOL BUS W/5.9L VB-413C 4" 4. 92-98 8.3L TURBO CUMMINS ALL AMERICAN VB-461D 4" 4. REPLACES BLUEBIRD #1250646 & #3116 VB-461D 4" 4. BLUEBIRD ALL AMERICAN W/CAT3116 /TURBO & #3116 CATERPILLAR VB-419C 3.5" 4.19 0.40 3208T# IW5455 VB-461D 4" 4.69 0.40 3208T # IW2431 & #3116 VB-475C 4" 4.75 0.40 3176T VB-588C 5" 5.88 0.40 3406, 3406B, 3176,T50 TURBO # 186917 CUMMI VB-321C 2.75" 3.20 0.26 6BT5.9L, 6BTA5.9L # 3903652 VB-351I 3.5" 4.25 0.40 VT555, VT-555 MANIFOLD 4" 4.69 0.26 8.3C CUMMINS # 3905216, FOR HX40 TURBO 4" 4.75 0.40 L10 # 115774 5" 5.53 0.24 04-07 5.9L CUMMINS# 52121285AA VB-588C 5" 5.88 0.40 750, N, 88NT, NTC, VT, T50 TURBO # 186916 DETROIT DIESEL VB-475D 4" 4.75 0.16 8.2LT # 154977 VB-525D 5" 5.81 0.21 8V-71T, 16V-71, 6V-92T, 8V-92, 8V-92T, 16V-92T # 513262 VB-588C 5" 5.88 0.40 SERIES 60, 6-71T # 23506159 DODGE VB-450 4" 4.73 0.26 DODGE 03-04 5.9L CUMMINS # A49-3535399 VB-532 5" 5.53 0.24 04-07 5.9L CUMMINS# 52121285AA FORD VB-321C 2.75" 3.20 0.26 93-95 B600/700 W/5.9LT VB-321C 2.75" 3.20 0.26 REPLACES FORD #F3HZ5A281A VB-351I 3.5" 4.25 0.40 REPLACES FORD #E7HZ5A231C VB-384F 3" 4.01 0.23 FORD # F6TA-5A281-BA / 94-97 7.3 POWERSTROKE VB-419C 3.5" 4.19 0.40 REPLACES FORD #E2HZ5A231A VB-419C 3.5" 4.19 0.40 87-90 B600/700 SCHOOL BUS CF600/800 W/6.6LT UNIVERSAL REPLACEMENT PAR V-BAND CLAMPS PART NO. DIAMETER STACK STYLE LENGTH INLET ID/OD RE DIA P4-36SBS3 4” MITER 36” OD P5-36EX-S3 5” MITER 36” ID S4-12SBS4 4” STRAIGHT 12” OD S4-24EXS4S 4” STRAIGHT 24” ID S4-24SBS4 4” STRAIGHT 24” OD S4-36EX-S3 4” STRAIGHT 36” ID S4-36EX-S4 4” STRAIGHT 36” ID S4-36SB4 4” STRAIGHT 36” OD S4-48EXS4S 4” STRAIGHT 48” ID S4-48SBS4 4” STRAIGHT 48” OD S4-60EXS4 4” STRAIGHT 60” ID S5-12SBS4 5” STRAIGHT 12” OD S5-24EXS4 5” STRAIGHT 24” ID S5-36EXS4 5” STRAIGHT 36” ID S5-48EXS4 5” STRAIGHT 48” ID S5-48SBS3 5” STRAIGHT 48” OD S5-48SBS4 5” STRAIGHT 48” OD S5-60EX-S3 5” STRAIGHT 60” ID S5-72EX-S4 5” STRAIGHT 72” ID S6-48SBS3 6” STRAIGHT 48” OD SP6-60EX-S3 6” MITER 60” ID SP6-60EX-S4 6” MITER 60” ID ALL 304 STACKS CAN BE POLISHED TO A MIRROR FINISH. CALL FOR PR STACK STYLES CONTINUED... 1-800-321-3674 www.grandrock.com 35 STACK Aussie Stacks Straight Stacks OD BOTTOM ID BOTTOM ID REDUCED OD BOTTO OD OD STYLE OD STYLE ID STYLE I OD DIA. LENGTH CHROME PART NO. 5" 24" A5-24SBC 36" A5-36SBC 48" A5-48SBC 60" A5-60SBC 72" A5-72SBC 24" SA6-24SBC-5 36" SA6-36SBC-5 48" SA6-48SBC-5 60" SA6-60SBC-5 ID DIA. LENGTH CHROME PART NO. 6" — 5" 108" SA6-108EXC-5 7" 108" A7-108EXC 7" 114" A OD DIA. LENGTH CHROME PART NO. 7" — 5" 24" SA7-24SBC-5 7" — 5" 36" SA7-36SBC-5 7" — 5" 48" SA7-48SBC-5 7" — 5" 60" SA7-60SBC-5 8" — 5" 36" SA8-36SBC-5 8" — 5" 48" SA8-48SBC-5 8" — 5" 60" SA8-60SBC-5 ID DIA. LENGTH 3" 24" S3-24EXA - 3" 36" S3-36EXA - 3.5" 24" S35-24EXA - 3.5" 36" S35-36EXA - 3.5" 48" S35-48EXA - 3.5" 60" S35-60EXA - 4" 12" S4-12EXA - 18" S4-18EXA - 24" S4-24EXA S4-24EXC 36" S4-36EXA S4-36EXC 48" S4-48EXA S4-48EXC 60" S4-60EXA S4-60EXC 72" S4-72EXA S4-72EXC 12" S5-12EXA S5-12EXC 18" S5-18EXA S5-18EXC 24" S5-24EXA S5-24EXC 36" S5-36EXA S5-36EXC 48" S5-48EXA S5-48EXC 60" S5-60EXA S5-60EXC 72" S5-72EXA S5-72EXC 96" - S6-96EXC 6" 108" - S6-108EXC 7" 96" - S7-96EXC OD DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 4" 24" - S4-24SBC 4" 36" - S4-36SBC 4" 48" S4-48SBA S4-48SBC 4" 60" S4-60SBA - 5" 24" - S5-24SBC 5" 36" S5-36SBA S5-36SBC 5" 48" S5-48SBA S5-48SBC 5" 60" S5-60SBA S5-60SBC 6" - 5" 36" - SS6-36SBC-5 7" - 5" 36" - SS7-36SBC-5 7" - 5" 48" - SS7-48SBC-5 7" - 5" 60" - SS7-60SBC-5 8" - 5" 36" - SS8-36SBC-5 8" - 5" 48" - SS8-48SBC-5 8" - 5" 60" - SS8-60SBC-5 2018CatalogSinglePagesMay2018.indd 35 6 STRAIGHT AUSSIE BRUTE STAINLESS STA PART NO. DIAMETER STACK STYLE LENGTH INLET ID/OD P4-36SBS3 4” MITER 36” OD P5-36EX-S3 5” MITER 36” ID S4-12SBS4 4” STRAIGHT 12” OD S4-24EXS4S 4” STRAIGHT 24” ID S4-24SBS4 4” STRAIGHT 24” OD S4-36EX-S3 4” STRAIGHT 36” ID S4-36EX-S4 4” STRAIGHT 36” ID S4-36SB4 4” STRAIGHT 36” OD S4-48EXS4S 4” STRAIGHT 48” ID S4-48SBS4 4” STRAIGHT 48” OD S4-60EXS4 4” STRAIGHT 60” ID S5-12SBS4 5” STRAIGHT 12” OD S5-24EXS4 5” STRAIGHT 24” ID S5-36EXS4 5” STRAIGHT 36” ID S5-48EXS4 5” STRAIGHT 48” ID S5-48SBS3 5” STRAIGHT 48” OD S5-48SBS4 5” STRAIGHT 48” OD S5-60EX-S3 5” STRAIGHT 60” ID S5-72EX-S4 5” STRAIGHT 72” ID S6-48SBS3 6” STRAIGHT 48” OD SP6-60EX-S3 6” MITER 60” ID SP6-60EX-S4 6” MITER 60” ID ALL 304 STACKS CAN BE POLISHED TO A MIRROR FINISH. CALL F STACK STYLES CONTINUED... 1-800-321-3674 www.grandrock.com Straight Stacks OD BOTTOM ID BOTTOM ID REDUCED OD BOTTOM OD OD STYLE ID STYLE ID DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 3" 24" S3-24EXA - 3" 36" S3-36EXA - 3.5" 24" S35-24EXA - 3.5" 36" S35-36EXA - 3.5" 48" S35-48EXA - 3.5" 60" S35-60EXA - 4" 12" S4-12EXA - 4" 18" S4-18EXA - 4" 24" S4-24EXA S4-24EXC 4" 36" S4-36EXA S4-36EXC 4" 48" S4-48EXA S4-48EXC 4" 60" S4-60EXA S4-60EXC 4" 72" S4-72EXA S4-72EXC 5" 12" S5-12EXA S5-12EXC 5" 18" S5-18EXA S5-18EXC 5" 24" S5-24EXA S5-24EXC 5" 36" S5-36EXA S5-36EXC 5" 48" S5-48EXA S5-48EXC 5" 60" S5-60EXA S5-60EXC 5" 72" S5-72EXA S5-72EXC 6" 96" - S6-96EXC 108" - S6-108EXC 96" - S7-96EXC OD DIA. LENGTH ALUMINIZED PART NO. CHROME PART NO. 4" 24" - S4-24SBC 4" 36" - S4-36SBC 4" 48" S4-48SBA S4-48SBC 4" 60" S4-60SBA - 5" 24" - S5-24SBC 5" 36" S5-36SBA S5-36SBC 5" 48" S5-48SBA S5-48SBC 5" -60SBC 6" - 5 -36SBC-5 7" - 6SBC-5 7" - 8SBC-5 7" - 0SBC-5 8" - 6SBC-5 8" - 5 -48SBC-5 8" - 5 -60SBC-5 20 8.indd 35 6/19/18 11:48 PM STRAIGHT AUSSIE BRUT STAINLESS ST I.D. END (FLARED - SQUARE CUT) O.D. END (NON FLARED - STRAIGHT CUT) O.D. END (NON FLARED - CURVED) I.D. END (FLARED - CURVED) Dia. Length Aluminized Chrome 4" 18" 24" - 36" - 48" - 60" - 5" 18" 24" - 36" - 48" - 60" - 72" - 72" - 84" - 96" - Dia. Length Aluminized Chrome 3" 24" - 36" - 3.5" 18" - 36" - 48" - 4" 18" - 24" - 36" - 48" - 5" 18" - 24" - 36" - 48" - 60" - Dia. Length Aluminized Chrome 4" 18" - 5" 18" 24" - 36" 48" 60" 72" - Dia. Length Aluminized Chrome 4" 48" - 5" 36" - 60" - STACK PIPES - SQUARE CUT STACK PIPES - CURVED PART NO. DIAMETER STACK STYLE LENGTH INLET ID/OD REDUCED DIAMETER STAINLESS TYPE P4-36SBS3 4” MITER 36” OD NO 304 P5-36EX-S3 5” MITER 36” ID NO 304 S4-12SBS4 4” STRAIGHT 12” OD NO 409 ALZ. S4-24EXS4S 4” STRAIGHT 24” ID NO 409 ALZ. S4-24SBS4 4” STRAIGHT 24” OD NO 409 ALZ. S4-36EX-S3 4” STRAIGHT 36” ID NO 304 S4-36EX-S4 4” STRAIGHT 36” ID NO 409 ALZ. S4-36SB4 4” STRAIGHT 36” OD NO 409 ALZ. S4-48EXS4S 4” STRAIGHT 48” ID NO 409 ALZ. S4-48SBS4 4” STRAIGHT 48” OD NO 409 ALZ. S4-60EXS4 4” STRAIGHT 60” ID NO 409 ALZ. S5-12SBS4 5” STRAIGHT 12” OD NO 409 ALZ. S5-24EXS4 5” STRAIGHT 24” ID NO 409 ALZ. S5-36EXS4 5” STRAIGHT 36” ID NO 409 ALZ. S5-48EXS4 5” STRAIGHT 48” ID NO 409 ALZ. S5-48SBS3 5” STRAIGHT 48” OD NO 304 S5-48SBS4 5” STRAIGHT 48” OD NO 409 ALZ. S5-60EX-S3 5” STRAIGHT 60” ID NO 304 S5-72EX-S4 5” STRAIGHT 72” ID NO 409 ALZ. S6-48SBS3 6” STRAIGHT 48” OD NO 304 SP6-60EX-S3 6” MITER 60” ID 5” 304 SP6-60EX-S4 6” MITER 60” ID 5” 409 ALZ. ALL 304 STACKS CAN BE POLISHED TO A MIRROR FINISH. CALL FOR PRICE AND AVAILABILITY. STACK STYLES CONTINUED... STRAIGHT AUSSIE BRUTE WEST COAST CRUVE STAINLESS INLESS STACKS D4 PART NO. DIAMETER STACK STYLE LENGTH INLET ID/OD REDUCED DIAMETER STAINLESS TYPE P4-36SBS3 4” MITER 36” OD NO 304 P5-36EX-S3 5” MITER 36” ID NO 304 S4-12SBS4 4” STRAIGHT 12” OD NO 409 ALZ. S4-24EXS4S 4” STRAIGHT 24” ID NO 409 ALZ. S4-24SBS4 4” STRAIGHT 24” OD NO 409 ALZ. S4-36EX-S3 4” STRAIGHT 36” ID NO 304 S4-36EX-S4 4” STRAIGHT 36” ID NO 409 ALZ. S4-36SB4 4” STRAIGHT 36” OD NO 409 ALZ. S4-48EXS4S 4” STRAIGHT 48” ID NO 409 ALZ. S4-48SBS4 4” STRAIGHT 48” OD NO 409 ALZ. S4-60EXS4 4” STRAIGHT 60” ID NO 409 ALZ. S5-12SBS4 5” STRAIGHT 12” OD NO 409 ALZ. S5-24EXS4 5” STRAIGHT 24” ID NO 409 ALZ. S5-36EXS4 5” STRAIGHT 36” ID NO 409 ALZ. S5-48EXS4 5” STRAIGHT 48” ID NO 409 ALZ. S5-48SBS3 5” STRAIGHT 48” OD NO 304 S5-48SBS4 5” STRAIGHT 48” OD NO 409 ALZ. S5-60EX-S3 5” STRAIGHT 60” ID NO 304 S5-72EX-S4 5” STRAIGHT 72” ID NO 409 ALZ. S6-48SBS3 6” STRAIGHT 48” OD NO 304 SP6-60EX-S3 6” MITER 60” ID 5” 304 SP6-60EX-S4 6” MITER 60” ID 5” 409 ALZ. ALL 304 STACKS CAN BE POLISHED TO A MIRROR FINISH. CALL FOR PRICE AND AVAILABILITY. STACK STYLES CONTINUED... STRAIGHT AUSSIE BRUTE WEST COAST CRUVE STAINLESS AINLESS STACKS D4 Part # Dia. A B 4.00 4.81 0.21 2.75 3.20 0.26 3.50 4.50 0.21 4.00 4.75 0.40 5.00 5.88 0.40 3.00 3.84 0.40 3.00 3.82 0.21 3.50 4.31 0.21 3.50 4.19 0.40 V BAND CLAMPS CLAMPS V-Band Clamps MANUFACTURER P/N TUBE DIA. A B APPLICATION UNIVERSAL VB-300C 2.50 3.74 0.20 Emissions CLAMP VB-525D 5.00 5.81 0.21 Fits - FLARED CONNECTORS. AIRESEARCH VB-461M 4.00 4.61 0.21 TEO-699 VB-525D 5.00 5.81 0.21 T-1899, TH08A64 BLUEBIRD VB-321C 2.75 3.20 0.26 6BT5.9L, 6BTA5.9L REPLACES BLUEBIR VB-321C 2.75 3.20 0.26 94-98 BLUEBIRD TC2000 SCHOOL BUS VB-413C 4.00 4.69 0.26 92-98 8.3L TURBO CUMMINS ALL AMER VB-461D 4.00 4.69 0.40 REPLACES BLUEBIRD #1250646 & #311 V .00 4.69 0.40 BLUEBIRD ALL AMERICAN W/CAT3116 / CATERPILLAR V 3.50 4.19 0.40 3208T# IW5455 V 4.00 4.69 0.40 3208T # IW2431 & #3116 VB-475C 4.00 4.75 0.40 3176T VB-588C 5.00 5.88 0.40 3406, 3406B, 3176,T50 TURBO # 18691 CUMMINS VB-321C 2.75 3.20 0.26 6BT5.9L, 6BTA5.9L # 3903652 VB-351I 3.50 4.25 0.40 VT555, VT-555 MANIFOLD VB-413C 4.00 4.69 0.26 8.3C CUMMINS # 3905216, for HX40 Tu VB-475C 4.00 4.75 0.40 L10 # 115774 VB-532 5.00 5.53 0.24 04-07 5.9L CUMMINS# 52121285AA VB-588C 5.00 5.88 0.40 750, N, 88NT, NTC, VT, T50 TURBO # 18 DETROIT DIESEL VB-475D 4.00 4.75 0.16 8.2LT # 154977 VB-525D 5.00 5.81 0.21 8V-71T, 16V-71, 6V-92T, 8V-92, 8V-92T, VB-588C 5.00 5.88 0.40 SERIES 60, 6-71T # 23506159 DODGE VB-450 4.00 4.73 0.26 DODGE 03-04 5.9L CUMMINS # A49-35 B Nominal Diameter A V-BAND CLAMPS B V-BAND CLAMPS OE MANUFACTURER PART NO. TUBE DIAMETER A B APPLICA UNIVERSAL VB-300C 2.5" 3.74 0.20 EMMISSION VB-525D 5" 5.81 0.21 FITS FLARED C AIRESEARCH VB-461M 4" 4.61 0.21 TEO-6 VB-525D 5" 5.81 0.21 T1899, TH BLUEBIRD VB-321C 2.75" 3.20 0.26 6BT5.9L, 6BTA5.9L REPLAC VB-321C 2.75" 3.20 0.26 94-98 BLUEBIRD TC2000 VB-413C 4" 4.69 0.26 92-98 8.3L TURBO CUM VB-461D 4" 4.69 0.40 REPLACES BLUEBIRD VB-461D 4" 4.69 0.40 BLUEBIRD ALL AMERICAN W CATERPILLAR VB-419C 3.5" 4.19 0.40 3208T# I VB-461D 4" 4.69 0.40 3208T # IW2 VB-475C 4" 4.75 0.40 3176 VB-588C 5" 5.88 0.40 3406, 3406B, 3176,T5 CUMMINS VB-321C 2.75" 3.20 0.26 6BT5.9L, 6BTA5. VB-351I 3.5" 4.25 0.40 VT555, VT-555 VB-413C 4" 4.69 0.26 8.3C CUMMINS # 39052 VB-475C 4" 4.75 0.40 L10 # 1 VB-532 5" 5.53 0.24 04-07 5.9L CUMMI VB-588C 5" 5.88 0.40 750, N, 88NT, NTC, VT, DETROIT DIESEL VB-475D 4" 4.75 0.16 8.2LT # 1 VB-525D 5" 5.81 0.21 8V-71T, 16V-71, 6V-92T, 8V-92 VB-588C 5" 5.88 0.40 SERIES 60, 6-71 DODGE VB-450 4" 4.73 0.26 DODGE 03-04 5.9L CUM VB-532 5" 5.53 0.24 04-07 5.9L CUMMI FORD VB-321C 2.75" 3.20 0.26 93-95 B600/7 VB-321C 2.75" 3.20 0.26 REPLACES FORD VB-351I 3.5" 4.25 0.40 REPLACES FORD VB-384F 3" 4.01 0.23 FORD # F6TA-5A281-BA / 9 VB-419C 3.5" 4.19 0.40 REPLACES FORD VB-419C 3.5" 4.19 0.40 87-90 B600/700 SCHOOL B VB-419C 3.5" 4.19 0.40 REPLACES FORD VB-419F 3.5" 4.19 0.40 FORD 6.6& 7.8 # VB-429F6 4" 4.56 0.28 FORD 03-07 6.0L POWERS VB-429F7 4" 4.55 0.23 FORD 99-03 7.3L POWERST VB-475D 4" 4.75 0.16 REPLACES FORD U ERSAL REPLACEMENT PARTS V-BAND CLAMPS 90° Y-PIPES PART NO. TYPE DIAMETER WIDTH HEIGHT ADDITIONAL INFO. Y-300A A 3" 12" 10" CALL FOR PRICE AND AVAILABILITY Type A NO DIVIDER PLATE ELBOWS AND Y-PIPES Universal Y Pipes NO DIVIDER PLATE WITH DIVIDER PLATE NO DIVIDER PLATE WITH DIVIDER PLATE DIA. WIDTH HEIGHT ALUMINIZED PART NO. ALUMINIZED PART NO. CHROME PART NO. 3" 12" 10" Y-300NPA 14" 10" Y-350NPA 8" Y-401NPA 12" Y-400A 5" 16" 11" Y-501NPA 5" 25" 14" Y-500NPA Y-500A Y-500C OD H H H H W W W W OD OD OD OD OD OD OD OD ID ID UNIVERSAL Y PIPES Type A WITH DIVIDER PLATE Type B Type C OD H W OD OD ID H ID OD OD H W ID OD H W OD 45° Y-500A Pictured UNIVERSAL REPLACEME Y-PIPES SPLITTER “T” ADAPTER PIPE Converts a single system into a dual system on popular diesel engines CONVENTIONAL “Y” PIPE Dia. Height Width 5” 16” 10.5” O.E. replacement on various models of trucks. Can be used to convert dual to single exhaust I.D. O.D. Height Width 5.00 OD 5.00 OD 11 16 5.00 5.00 14 24 4.00 4.00 12 26 EXHAUST BUSHING KIT PETERBILT - Rubber - Poly Kit Includes Shaft, Washers and E-Clips, Use w/ M13109 Exhaust Mount, 348, 379, 388, 389 EXHAUST MOUNT KENWORTH Exhaust Mount, w/ Poly Bushing Use w/ M136001K Bushing Kit KW T600/680/800, W900, Peterbilt 388 1-800-321-3674 www.grandrock.com 51 BO PIPES Universal Y Pipes NO DIVIDER PLATE ATE NO DIVIDER PLATE WIT DIA. WIDTH HEIGHT ALUMINIZED PART NO. ALUMIN PART 3" 12" 10" Y-300NPA 3.5" 14" 10" Y-350NPA 4" 12" 8" Y-401NPA 4" 26" 12" Y-400A 5" 16" 11" Y-501NPA 5" 25" 14" Y-500NPA Y-500A Y-500C DIA. WIDTH HEIGHT ALUMINIZED PART NO. 4" YB-400A 5" YB-500A Type A Type B DIA. WIDTH HEIGHT ALUMINIZED PART NO. 4" 9.4687" 12" YC-400A 5" 10.843" 13" YC-500A Type C OD H H H H W W W OD OD OD OD OD 90° 45° OD OD OD ID ID ID NIV L Y P gSinglePagesMay2018.indd 51 6/19/18 11:48 PM Y-PIPES PART NO. TYPE DIAMETER WIDTH HEIGHT ADDITIONAL INFO. 3" 12" 10" CALL FOR PRICE AND AVAILABILITY 3" 12" 10" NO DIVIDER PLATE Y-350NPA A 3.5" 14" 10" NO DIVIDER PLATE Y-400A A 4" 26" 12" Y-400NPA A 4" 26" 12" CALL FOR PRICE AND AVAILABILITY NO DIVIDER PLATE Y-401NPA A 4" 12" 8" NO DIVIDER PLATE Y-500A A 5" 24" 14" Y-500NPA A 5" 24" 14" NO DIVIDER PLATE Y-501NPA A 5" 16" 11" NO DIVIDER PLATE Y-600NPA A 6" 25" 14.5" CALL FOR PRICE AND AVAILABILITY NO DIVIDER PLATE YB-300A B 3" 10.5" 16" CALL FOR PRICE AND AVAILABILITY YB-350A B 3.5" 10.275 16" CALL FOR PRICE AND AVAILABILITY YB-400A B 4" 10.5" 16" YB-500A B 5" 10.5" 16" Type A NO DIVIDER PLATE PLATE Type B Type C W OD OD ID H OD OD ID H ID OD OD H W ID OD H W OD 45° Y-500A Pictured UNIVERSAL REPLAC NT PARTS Y-PIPES Stack Pipes AUTM136001KUB GRRS35-18EXA GRRS35-36EXA GRRS35-48EXA GRRK4-18EXA GRRK4-18EXC GRRK4-24EXC GRRK4-36EXC GRRK4-48EXC GRRK4-60EXC GRRK5-18EXA GRRK5-18EXC GRRK5-24EXC GRRK5-36EXC GRRK5-48EXC GRRK5-60EXC GRRK5-72EXC GRRK5-72EXC GRRK5-84EXC GRRK5-96EXC GRRS3-24EXA GRRS3-36EXA GRRS4-18EXA GRRS4-24EXA GRRS4-36EXA GRRS4-48EXA GRRS5-18EXA GRRS5-24EXA GRRS5-36EXA GRRS5-48EXA GRRS5-60EXA GRRK4-18SBA GRRK5-18SBA GRRK5-18SBC GRRK5-24SBC GRRK5-36SBA GRRK5-36SBC GRRK5-48SBA GRRK5-48SBC GRRK5-60SBA GRRK5-60SBC GRRK5-72SBC GRRS4-48SBA GRRS5-36SBA GRRS5-60SBA GRRY-501NPA AUTM136001K GRRVB-475D GRRVB-321C GRRVB-419C GRRVB-475C GRRVB-588C GRRVB-301I GRRVB-302I GRRVB-350I GRRVB-419F GRRYB-500A GRRY-500A GRRY-400A AUTM13109
10 PREMIUM FLAT BAND CLAMP Stainless 2" 2.25" 2.5" 2.75" 3" 3.5" 4" 5" 6" ECONOMY FLAT BAND CLAMP 4" 5" BAND CLAMPS LAP JOINT Connects OD to ID Pipe Aluminized Stainless 2.5" - 3" 3.5" 3.5" - 4" 4" - 5" 5" - 6" SX 33289 CLAMP - LAP JOINT Stainless 3.5" 4" 5" ACCUSEAL™ CLAMP For use on all slotted muffler and pipe connections. 5" FLAT U-BOLT CLAMP 3/8" U-Bolt Non-Chrome Chrome 4" 5" 6" HD CLAMP W/ WELDED SADDLE 3/8" U-Bolt 3.5" 4" 5" 6" STANDARD DUTY CLAMP 5/16" U-Bolt 1.625" 2.25" BUTT JOINT STAINLESS Connects OD to OD or ID to ID Pipe 2" SX 33228 4" SX 33280 5" SX 33282 GUILLOTINE CLAMP 3/8" U-Bolt 2" 2.5" 3" 3.5" 4" 4.5" 5" NARROW BAND CLAMP Aluminized 430 Bright Stainless Steel 4" 5" ECONOMY PRE-FORMED BAND CLAMP Connects ID to OD Pipe Aluminized Stainless 4" - 5" S PART NO. DIA EZ-2SS FL-2SS PF-2SS RB-2SS EZ-225SS 2 FL-225SS 2 PF-225SS 2 RB-225SS 2 AS-25SS EZ-25SS FL-25SS PF-25SS EZ-275SS 2 FL-275SS 2 PF-275SS 2 AS-3SS EZ-3SS FL-3SS PF-3SS STC-3SS WFC-3SS EZ-325SS 3 AS-35SS EZ-35SS FL-35SS PF-35SS STC-35SS WFC-35SS PF-35SSVP PF-35SSBK AS-4SS 1-800-321-3674 www.grandrock.com CLAMPS TYPE WIDTH 2" 2-1/4 FL Series Alz. 3.375" - - FL Series SS* 3.375" - - EZ Series SS 3" EZ-2SS EZ-225 AS Series Alz. 1.25" - - AS Series Std. SS 1.25" - - AS Series Polished SS 1.25" - - DuraSeal 409SS 1.25" - - PF Series Alz. 3" PF-2A PF-22 PF Series Alz. Bulk 3" - - PF Series SS 3" PF-2SS - PF Series SS Polished 3" - - PF Series SS Bulk 3" - - WFC Series Alz. 3" - - WFC Series Stainless 3" - - STC Series SS 3" - - PF Series Alz. Butt-Joint *Not polished. 3" - - FL Series PF Series M 2018CatalogSinglePagesMay2018.indd 56 1-800-321-3674 www.grandrock.com CLAMPS TYPE WIDTH 2 FL Series Alz. 3.375" FL Series SS* 3.375" EZ Series SS 3" EZAS Series Alz. 1.25" AS Series Std. SS 1.25" AS Series Polished SS 1.25" DuraSeal 409SS 1.25" PF Series Alz. 3" PF PF Series Alz. Bulk 3" PF Series SS 3" PFPF Series SS Polished 3" PF Series SS Bulk 3" WFC Series Alz. 3" WFC Series Stainless 3" STC Series SS 3" PF Series Alz. Butt-Joint *Not polished. 3" FL Series PF CLAMPS 2018CatalogSinglePagesMay2018.indd 56 STAINLESS UN D11 LESS STEEL CLAMPS . CLAMP WIDTH QUALITY ADDITIONAL INFO. EZ-2SS 3" BETTER 3.375" BETTER PF-2SS 3" BETTER RB-2SS 3" GOOD EZ-225SS 2.25" 3" BETTER FL-225SS 2.25" 3.375" BETTER CALL FOR PRICE AND AVAILABILITY PF-225SS 2.25" 3" BETTER RB-225SS 2.25" 3" GOOD CALL FOR PRICE AND AVAILABILITY AS-25SS 2.5" 1.25" GOOD CALL FOR PRICE AND AVAILABILITY 2.5" 3" BETTER 3.375" BETTER PF-25SS 2.5" 3" BETTER EZ-275SS 2.75" 3" BETTER FL-275SS 2.75" 3.375" BETTER CALL FOR PRICE AND AVAILABILITY PF-275SS 2.75" 3" BETTER AS-3SS 3" 1.25" GOOD EZ-3SS 3" 3" BETTER FL-3SS 3" 3.375" BETTER PF-3SS 3" 3" BETTER STC-3SS 3" 3" BETTER WFC-3SS 3" 3" BEST EZ-32 3.25" 3" BETTER AS- 3.5" 1.25" GOOD EZ-3 3.5" 3" BETTER FL-3 3.5" 3.375" BETTER PF-3 3.5" 3" BETTER STC-3 3.5" 3" BETTER WFC- 3.5" 3" BEST PF-35 3.5" 3" BETTER 10pc - SEE IMA PF-35SSBK 3.5" 3" BETTER 50pc - BULK PACK AS-4SS 4" 1.25" GOOD FL Series 1-800-321-3674 www.grandrock.com 56 CLAMPS Clamps TYPE /4" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 6" 7" - - - - FL-4A - FL-5A - - - FL-25SS FL-3SS FL-35SS FL-4SS - FL-5SS FL-6SS - EZ Series SS Z-225SS EZ-25SS EZ-3SS EZ-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS - AS-25A AS-3A AS-35A AS-4A - AS-5A - - AS Series Std. SS - - AS-3SS AS-35SS AS-4SS - AS-5SS - - AS Series Polished SS - - - - AS-4SSP - AS-5SSP DuraSeal 409SS - - - - DS-4SS - DS-5SS PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF-35A PF-4A - PF-5A - - PF Series Alz. Bulk 3" - - - - PF-35ABK PF-4ABK - PF-5ABK PF-6ABK - PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF-4SS - PF-5SS - - PF Series SS Polished 3" - - - - - - - PF-5SSP PF-6SSP - PF Series SS Bulk 3" - - - - PF-35SSBK PF-4SSBK - PF-5SSBK PF-6SSBK - 3" - - - - - WFC-4A - WFC-5A - - s - - WFC-3SS WFC-35SS WFC-4SS - - - - STC-3SS STC-35SS STC-4SS - - PF Series Alz. Butt-Joint *Not polished. 3" - - - PF-3ABT - PF-4ABT - - WFC Series EZ Series CLAMPS 2018CatalogSinglePagesMay2018.indd 56 6/19/18 11:49 PM s 1-800-321-3674 www.grandrock.com 56 CLAMPS Clamps TY WIDTH 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" FL 3.375 - - - FL-4A - FL-5A - - FL Series SS* 3.3 FL-25SS FL-3SS FL-35SS FL-4SS - FL-5SS FL-6SS - EZ 3 EZ-25SS EZ-3SS EZ-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS AS 1.2 AS-25A AS-3A AS-35A AS-4A - AS-5A - - AS Series Std. SS 1.25" - AS-3SS AS-35SS AS-4SS - AS-5SS - - AS 1.25" - - - AS-4SSP - AS-5SSP AS-6SSP AS-7SSP Du 1.25" - - - DS-4SS - DS-5SS - - PF Series Alz. 3" PF-25A PF-3A PF-35A PF-4A - PF-5A PF Series Alz. Bulk 3" - - PF-35ABK PF-4ABK - PF-5ABK PFPF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF-4SS - PF-5SS - - PF Series SS Polished 3" - - - - - - - PF-5SSP PF-6SSP - PF Series SS Bulk 3" - - - - PF-35SSBK PF-4SSBK - PF-5SSBK PF-6SSBK - WFC Series Alz. 3" - - - - - WFC-4A - WFC-5A - - WFC Series Stainless 3" - - - WFC-3SS WFC-35SS WFC-4SS - WFC-5SS - - S 3" - - STC-3SS STC-35SS STC-4SS - STC-5SS - - P *Not polished. - PF-3ABT - PF-4ABT - - WFC Series EZ Series AS Series CLAMPS 2018CatalogSinglePagesMay2018.indd 56 6/19/18 11:49 PM 1-800-321-3674 www.grandrock.com 56 CLAMPS Clamps 2-1/4" 2-1/2" 3" 3-1/2" 4" 4-1/2" " - - - - FL-4A - FL-5A - - FL Series SS* - FL-25SS FL-3SS FL-35SS FL-4SS - FL-5SS FL-6SS - -225SS EZ-25SS EZ-3SS EZ-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS - AS-25A AS-3A AS-35A AS-4A - AS-5A - - AS Series Std. SS - - AS-3SS AS-35SS AS-4SS - AS-5SS - - S - - - - AS-4SSP - AS-5SSP AS-6SSP AS-7SSP - - - - DS-4SS - DS-5SS - - PF Series Alz. PF-225A PF-25A PF-3A PF-35A PF-4A - PF-5A PF Series Alz. Bulk - - - PF-35ABK PF-4ABK - PF-5AB PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF-4SS - PF-5SS - - PF Series SS Polished 3" - - - - - - - PF-5SSP PF-6SSP - PF Series SS Bulk 3" - - - - PF-35SSBK PF-4SSBK - PF-5SSBK PF-6SSBK - WFC Series Alz. 3" - - - - - WFC-4A - WFC-5A - - WFC Series Stainless 3" - - - WFC-3SS WFC-35SS WFC-4SS - WFC-5SS - - 3" - - - STC-3SS STC-35SS STC-4SS - STC-5SS - - oint *Not polished. - - PF-3ABT - PF-4ABT - s WFC Series EZ Series AS Series CLAMPS 2018CatalogSinglePagesMay2018.indd 56 6/19/18 11:49 PM STAINLESS UNIVERSAL PARTS D11 STAINLESS STEEL CLAMPS PART NO. DIAMETER CLAMP WIDTH QUALITY ADDITIONAL INFO. EZ-2SS 2" 3" FL-2SS 2" 3.375" PF-2SS 2" 3" BETTER RB-2SS 2" 3" GOOD EZ-225SS 2.25" 3" BETTER FL-225SS 2.25" 3.375" BETTER CALL FOR PRICE AND AVAILABILITY PF-225SS 2.25" 3" RB-225SS 2.25" 3" CALL FOR PRICE AND AVAILABILITY AS-25SS 2.5" 1.25" CALL FOR PRICE AND AVAILABILITY EZ-25SS 2.5" 3" FL-25SS 2.5" 3.375" PF-25SS 2.5" 3" BETTER EZ-275SS 2.75" 3" BETTER FL-275SS 2.75" 3.375" BETTER CALL FOR PRICE AND AVAILABILITY PF-275SS 2.75" 3" BETTER AS-3SS 3" 1.25" GOOD EZ-3SS 3" 3" BETTER FL-3SS 3" 3.375" BETTER PF-3SS 3" 3" BETTER FL Series EZ Series 1-800-321-3674 www.grandrock.com 56 CLAMPS TYPE WIDTH 2" 2-1/4" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 6" 7" FL Series Alz. 3.375" - - - - - FL-4A - FL-5A - - FL Series SS* 3.375" - - FL-25 SS FL-4SS - FL-5SS FL-6SS - EZ Series SS 3" EZ-2SS EZ-225SS EZ-25 SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS AS Series Alz. 1.25" - - AS-2 A AS-4A - AS-5A - - AS Series Std. SS 1.25" - - - AS-3SS AS-35SS AS-4SS - AS-5SS - - AS Series Polished SS 1.25" - - - - - AS-4SSP - AS-5SSP AS-6SSP AS-7SSP DuraSeal 409SS 1.25" - - - - - DS-4SS - DS-5SS - - PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF-35A PF-4A - PF-5A - - PF Series Alz. Bulk 3" - - - - PF-35ABK PF-4ABK - PF-5ABK PF-6ABK - PF Series SS 3" PF-2SS - PF-25 SS PF-4SS - PF-5SS - - PF Series SS Polished 3" - - - - - PF-5SSP PF-6SSP - PF Series SS Bulk 3" - - - SSBK PF-4SSBK - PF-5SSBK PF-6SSBK - WFC Series Alz. 3" - - - WFC-4A - WFC-5A - - WFC Series Stainless 3" - - - 35SS WFC-4SS - WFC-5SS - - STC Series SS 3" - - - 5SS STC-4SS - STC-5SS - - PF Series Alz. Butt-Joint *Not polished. 3" - - - PF-3ABT - PF-4ABT - PF-5ABT - - FL Series PF Series WFC Series EZ Series AS Series CLAMPS PF Series 1-800-321-3674 www.grandrock.com 56 CLAMPS Cl TYPE WIDTH 2" 2-1/4" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 6" 7" FL Series Alz. 3.375" - - - - - FL-4A - FL-5A - - FL Series SS* 3.375" - - FL-25SS FL-3SS FL-35SS FL-4SS - FL-5SS FL-6SS - EZ Series SS 3" EZ-2SS EZ-225SS EZ-25SS EZ-3SS EZ-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS AS Series Alz. 1.25" - - AS-25A AS- 4A - AS-5A - - AS Series Std. SS 1.25" - - - AS-3 SS - AS-5SS - - AS Series Polished SS 1.25" - - - - SSP - AS-5SSP AS-6SSP AS-7SSP DuraSeal 409SS 1.25" - - - - - DS-4SS - DS-5SS - - PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF-35A PF-4A - PF-5A - - PF Series Alz. Bulk 3" - - - - PF-35ABK PF-4ABK - PF-5ABK PF-6ABK - PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF-4SS - PF-5SS - - PF Series SS Polished 3" - - - - - - - PF-5SSP PF-6SSP - PF Series SS Bulk 3" - - - - SBK - PF-5SSBK PF-6SSBK - WFC Series Alz. 3" - - - - -4A - WFC-5A - - WFC Series Stainless 3" - - - WFC-3 -4SS - WFC-5SS - - STC Series SS 3" - - - STC-3 4SS - STC-5SS - - PF Series Alz. Butt-Joint *Not polished. 3" - - - PF-3A ABT - PF-5ABT - - FL Series PF Series es EZ S AS Series CLAMPS 2018CatalogSinglePagesMay2018.indd 56 6/19/18 11:49 PM ESS UNIVER PARTS STAINLESS STE PART NO. DIAMETER CLAMP WIDTH EZ-2SS 2" 3" FL-2SS 2" 3.375" PF-2SS 2" 3" RB-2SS 2" 3" EZ-225SS 2.25" 3" FL-225SS 2.25" 3.375" PF-225SS 2.25" 3" RB-225SS 2.25" 3" -25SS 2.5" 1.25" -25SS 2.5" 3" -25SS 2.5" 3.375" -25SS 2.5" 3" EZ-275SS 2.75" 3" FL-275SS 2.75" 3.375" PF-275SS 2.75" 3" AS-3SS 3" 1.25" EZ-3SS 3" 3" FL-3SS 3" 3.375" PF-3SS 3" 3" STC-3SS 3" 3" WFC-3SS 3" 3" EZ-325SS 3.25" 3" AS-35SS 3.5" 1.25" EZ-35SS 3.5" 3" FL-35SS 3.5" 3.375" PF-35SS 3.5" 3" STC-35SS 3.5" 3" WFC-35SS 3.5" 3" PF-35SSVP 3.5" 3" PF-35SSBK 3.5" 3" AS-4SS 4" 1.25" 1-800-321-3674 ndrock.com 56 Clamps TYPE WIDTH 2" 2-1/4" 2-1/2" 3" 3-1/2" 4" FL Series Alz. 3.375" - - - - - FL-4A FL Series SS* 3.375" - - FL-25SS FL-3SS FL-35SS FL-4SS EZ Series SS 3" EZ-2SS EZ-225SS EZ-25SS EZ-3SS EZ-35SS EZ-4SS 1.25" - - AS-25A AS-3A AS-35A AS-4A AS Series Std. SS 1.25" - - - AS-3SS AS-35SS AS-4SS AS Series Polished SS 1.25" - - - - - AS-4SSP DuraSeal 409SS 1.25" - - - - - DS-4SS PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF-35A PF-4A PF Series Alz. Bulk 3" - - - - PF-35ABK PF-4ABK PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF-4SS PF Series SS Polished 3" - - - - - - PF Series SS 3" - - - - PF-35SSBK PF-4SSBK WFC Series 3" - - - - - WFC-4A WFC Series 3" - - - WFC-3SS WFC-35SS WFC-4SS STC Series S 3" - - - STC-3SS STC-35SS STC-4SS PF Series Alz. *Not polished. 3" - - - PF-3ABT - PF-4ABT FL Series PF Series WF EZ Series CLAMPS 2018C dd 56 1-800-321-3674 www.grandrock.com 56 LAMPS Clamps TYPE WIDTH 2" 2-1/4" 2-1/2" 3" FL Series Alz. 3.375" - - - - FL Series SS* 3.375" - - FL-25SS FL-3SS EZ Series SS 3" EZ-2SS EZ-225SS EZ-25SS EZ-3SS S Series Alz. 1.25" - - AS-25A AS-3A AS Series Std. SS 1.25" - - - AS-3SS A AS Series Polished SS 1.25" - - - - DuraSeal 409SS 1.25" - - - - PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF Series Alz. Bulk 3" - - - - P PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF Series SS Polished 3" - - - - Bulk 3" - - - - P Alz. 3" - - - - Stainless 3" - - - WFC-3SS W S 3" - - - STC-3SS S . Butt-Joint *Not polished. 3" - - - PF-3ABT FL Series PF Series EZ Series CLAMPS 2018CatalogSinglePagesMay2018.indd 56 1-800-321-3674 www.grandrock.com 56 MPS Clamps TYPE WIDTH 2" 2-1/4" 2-1/2" 3" 3-1/2" FL Series Alz. 3.375" - - - - - FL Series SS* 3.375" - - FL-25SS FL-3SS FL-35SS EZ Series SS 3" EZ-2SS EZ-225SS EZ-25SS EZ-3SS EZ-35SS AS Series Alz. 1.25" - - AS-25A AS-3A AS-35A AS Series Std. SS 1.25" - - - AS-3SS AS-35S s Polished SS 1.25" - - - - - DuraSeal 409SS 1.25" - - - - - PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF-35A PF Series Alz. Bulk 3" - - - - PF-35AB PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF Series SS Polished 3" - - - - - PF Series SS Bulk 3" - - - - PF-35SSB WFC Series Alz. 3" - - - - - ss 3" - - - WFC-3SS WFC-35S 3" - - - STC-3SS STC-35S int 3" - - - PF-3ABT - FL Series PF Series EZ Series CLAMPS agesMay2018.indd 56 STAINL S UNIVERSA D11 LE EL CLAMPS PART NO. DIAMETER CL WI UALITY ADDITIONAL INFO. EZ-2SS 2" 3" BETTER FL-2SS 2" 3.375" BETTER PF-2SS 2" 3" BETTER RB-2SS 2" 3" GOOD EZ-225SS 3" BETTER FL-225SS BETTER CALL FOR PRICE AND AVAI PF-225SS 2.25" 3" BETTER RB-225SS 2.25" 3" GOOD CALL FOR PRICE AND AVAI AS-25SS 2.5" 1.25" GOOD CALL FOR PRICE AND AVAILABILITY EZ-25SS 2.5" 3" BETTER FL-25SS 2.5" 3.375" BETTER PF-25SS 2.5" 3" BETTER EZ-275SS 2.75" 3" BETTER FL-275SS 2.75" 3.375" BETTER CALL FOR PRICE AND AVAILABILITY PF-275SS 2.75" 3" BETTER AS-3SS 3" 1.25" GOOD EZ-3SS 3" BETTER FL-3SS 3" BETTER PF-3SS 3" BETTER STC-3SS 3" BETTER WFC-3SS 3" BEST EZ-325SS 3.25" BETTER AS-35SS 3.5" GOOD EZ-35SS 3.5" BETTER FL-35SS 3.5" BETTER PF-35SS 3.5" 3" BETTER STC-35SS 3.5" 3" BETTER WFC-35SS 3.5" 3" BEST PF-35SSVP 3.5" 3" BETTER 10pc - VALUE PACK SEE IMAGE ON PAGE E23 PF-35SSBK 3.5" 3" BETTER 50pc - BULK PACK AS-4SS 4" 1.25" GOOD FL Series 1-800-321-3674 www.grandrock.com 56 CLAMPS mps TYPE WIDTH 2" 2-1/4" -1/2" 4" 4-1/2" 5" 6" 7" L Series Alz. 3.375" - - - FL-4A - FL-5A - - L Series SS* 3.375" - - 35SS FL-4SS - FL-5SS FL-6SS - EZ Series SS 3" EZ-2SS EZ-225SS EZ-25SS EZ-3SS EZ-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS AS Series Alz. 1.25" - - AS-25A AS-3A AS-35A AS-4A - AS-5A - - AS Series Std. SS 1.25" - - - AS-3SS AS-35SS AS-4SS - AS-5SS - - AS Series Polished SS 1.25" - - - - - AS-4SSP - AS-5SSP AS-6SSP AS-7SSP DuraSeal 409SS - - - - DS-4SS - DS-5SS - - PF Series Alz. 225A PF-25A PF-3A PF-35A PF-4A - PF-5A - - PF Series Alz. Bulk - PF-35ABK PF-4ABK - PF-5ABK PF-6ABK - PF Series SS 3" PF-2SS - PF-25SS PF-3SS PF-35SS PF-4SS - PF-5SS - - PF Series SS Polished 3" - - - - - - - PF-5SSP PF-6SSP - PF Series SS Bulk 3" - - - - PF-35SSBK PF-4SSBK - PF-5SSBK PF-6SSBK - WFC Series Alz. 3" - - - - - WFC-4A - WFC-5A - - WFC Series Stainless 3" - - - WFC-3SS WFC-35SS WFC-4SS - WFC-5SS - - STC Series SS 3" - - - STC-3SS STC-35SS STC-4SS - STC-5SS - - PF Series Alz. Butt-Joint Not polished. 3" - - - PF-3ABT - PF-4ABT - PF-5ABT - - FL Series WFC Series EZ Series AS Series SinglePagesMay2018.indd 56 6/19/18 11:49 PM 1-800-321-3674 www.grandrock.com 56 CLAMPS Clamps TYPE WIDTH 2" 3" 3-1/2" 4" 4-1/2" 5" 6" 7" FL Series Alz. 3.375" - - - FL-4A - FL-5A - - FL Series SS* 3.375" - L-3SS FL-35SS FL-4SS - FL-5SS FL-6SS - EZ Series SS 3" EZ-2SS EZ-225SS EZ-25SS EZ-3SS EZ-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS AS Series Alz. 1.25" - - AS-25A AS-3A AS-35A AS-4A - AS-5A - - AS Series Std. SS 1.25" - - - AS-3SS AS-35SS AS-4SS - AS-5SS - - AS Series Polished SS 1.25" - - - - - AS-4SSP - AS-5SSP AS-6SSP AS-7SSP DuraSeal 409SS 1.25" - - - - - DS-4SS - DS-5SS - - PF Series Alz. F-2A PF-225A PF-25A PF-3A PF-35A PF-4A - PF-5A - - PF Series Alz. Bul - - PF-35ABK PF-4ABK - PF-5ABK PF-6 PF Series SS -2SS PF-3SS PF-35SS PF-4SS - PF-5SS - PF Series SS Polished 3" - - - - - - - PF-5SSP PF-6 PF Series SS Bulk 3" - - - - PF-35SSBK PF-4SSBK - PF-5SSBK PF-6S WFC Series Alz. 3" - - - - - WFC-4A - WFC-5A - - WFC Series Stainless 3" - - - WFC-3SS WFC-35SS WFC-4SS - WFC-5SS - - STC Series SS 3" - - - STC-3SS STC-35SS STC-4SS - STC-5SS - - PF Series Alz. Butt-Joint *Not polished. 3" - - - PF-3ABT - PF-4ABT - PF-5ABT - - FL Series PF Series WFC Series EZ Series AS Series CLAMPS 2018CatalogSinglePagesMay2018.indd 56 6/19/18 11:49 PM 1-800-321-3674 www.grandrock.com 56 CLAMPS amps TYPE WIDTH 2" 2-1/4" 3-1/2" 4" 4-1/2" 5" 6" 7" FL Series Alz. - - FL-4A - FL-5A - - FL Series SS* 3.375" - - FL-35SS FL-4SS - FL-5SS FL-6SS - EZ Series SS 3" EZ-2SS EZ-225SS Z-35SS EZ-4SS EZ-45SS EZ-5SS EZ-6SS EZ-7SS AS Series Alz. 1.25" - - S-35A AS-4A - AS-5A - - AS Series Std. SS 1.25" - - - AS-3SS AS-35SS AS-4SS - AS-5SS - - AS Series Polished SS 1.25" - - - - - AS-4SSP - AS-5SSP AS-6SSP AS-7SSP DuraSeal 409SS 1.25" - - - - - DS-4SS - DS-5SS - - PF Series Alz. 3" PF-2A PF-225A PF-25A PF-3A PF-35A PF-4A - PF-5A - - PF Series Alz. Bulk 3" - - - - PF-35ABK PF-4ABK - PF-5ABK PF-6ABK - PF Series SS - PF-25SS PF-3SS PF-35SS PF-4SS - PF-5SS - PF Series SS Polished - - - - PF-5SSP PF-6SSP PF Series SS Bulk 3" - - - - PF-35SSBK PF-4SSBK - PF-5SSBK PF-6SSBK WFC Series Alz. 3" - - - - - WFC-4A - WFC-5A - WFC Series Stainless 3" - - - WFC-3SS WFC-35SS WFC-4SS - WFC-5SS - STC Series SS 3" - - - STC-3SS STC-35SS STC-4SS - STC-5SS - - PF Series Alz. Butt-Joint *Not polished. 3" - - - PF-3ABT - PF-4ABT - PF-5ABT - - FL Series WFC Series EZ Series AS Series ogSinglePagesMay2018.indd 56 6/19/18 11:49 PM UNI SAL PARTS SADDLE CLAMPS PART NO. STYLE DIAMETER ADDITIONAL INFO FLAT BOLT CLOSED DOUBLE SADDLE (Best) ROUND BOLT CLOSED DOUBLE SADDLE (Better) ROUND BOLT CLOSED SINGLE SADDLE (Good) ROU OPE (E ROUND BOLT CLOSED SINGLE (Good) ROUND BOLT OPEN SADDLE (Economy) R CLOS S DIA. ROUND BOLT OPEN SADDLE (PLAIN STEEL) HD GUILLOTINE SINGLE EDGE SADDLE (ZINC PLATED) HD GUILLOTINE SINGLE EDGE SADDLE (CHROME) RO W 1.875" RO-178P — — Saddle Clamp Style 1 Style 2 Style 3 S A SORIES SAD PART NO. STYLE D FB-5C 1 FB-6C 1 FB-4C 1 FB-7C 1 FB-8C 1 RB-5C 3 RB-4C 3 RB-6C 3 RB-35C 3 RB-3C 3 RAIN CAPS PART NO. DIAMETER RC-300C 3" RC-350C 3.5" RC-400C 4" RC-500C 5" RC-600C 6" FLAT BOLT CLOSED DOUBLE SADDLE (Best) ROUND CLOSED D SADD (Bette Style 1 Style ACCE SADDLE CLAMP PART NO. STYLE DIAMETER ADDIT FB-5C 1 5” FB-6C 1 6” FB-4C 1 4” FB-7C 1 7” FB-8C 1 8” CALL FOR PRIC RB-5C 3 5” RB-4C 3 4” FLAT BOLT CLOSED DOUBLE ROUND BOLT CLOSED DOUBLE SADDLE (Better) RO CLOCLO ROUND BOLT OPEN SADDLE (Economy) DIA. ROUND BOLT OPEN SADDLE (PLAIN STEEL) HD GUILLO SINGLE EDGE (ZINC PLAT 1.875" RO-178P — 2" RO-2P RB-2ZN 2.25" RO-225P RB-225Z 2.5" RO-25P RB-25ZN 2.75" RO-275P RB-275Z 3" RO-3P RB-3ZN 3.5" RO-35P RB-35ZN CL ROUND BOLT CLOSED SINGLE ROUND BOLT OPEN SADDLE (Economy) ROUND BOLT CLOSED DOUBLE SADDLE (Better) DIA. ROUND BOLT OPEN SADDLE (PLAIN STEEL) HD GUI SINGLE ED (ZINC HD GUILLOTINE NGLE EDGE SADDLE (CHROME) ROUND BOLT HD WELD SADDLE (ZINC PLATED) FLAT BOLT HD WELD SADDLE (ZINC PLATED) 1.875" RO-178P — — — — 2" RO-2P RB-2ZN — — — 2.25" RO-225P RB-225ZN — — — 2.5" RO-25P RB-25ZN — — — 2.75" RO-275P RB-275ZN — — — 3" RO-3P RB-3ZN RB-3C HD-3ZN — 3.5" RO-35P RB-35ZN RB-35C HD-35ZN — e Clamps Style 1 Style 2 CCESSOR Clamps GRRGRE-PF35SS GRRGRE-PF35SS AUT562.U3104A AUT562.U3105A GRRGRI-EZ5SS GRRGRE-FL4SS GRRGRE-FL5SS GRRGRE-PF35A GRRGRE-PF4SS GRRGRE-PF5SS GRREZ-225SS GRREZ-275SS GRRGRE-PF3A GRRSTC-35SS GRRGREPF-4A GRRGRE-PF5A GRRGRE-PF3A GRRGRE-PF4A GRRGRE-AS5A GRRGRE-AS4A GRRGRE-AS5A GRREZ-25SS GRREZ-35SS GRRPF-25SS GRRSTC-3SS GRRWFC-4SS GRRWFC-5SS GRRWFC-4SS GRRWFC-5SS GRRHD-35ZN GRRRO-158P GRRRO-225P GRRRB-25ZN GRRRB-35ZN GRRRB-45ZN GRRAS-4SSP GRRAS-5SSP GRREZ-2SS GRREZ-3SS GRREZ-4SS GRREZ-6SS GRRFB-4ZN GRRFB-5ZN GRRFB-6ZN GRRHD-4ZN GRRHD-5ZN GRRHD-6ZN GRRRB-2ZN GRRRB-3ZN GRRRB-4ZN GRRRB-5ZN GRRFB-4C GRRFB-5C GRRFB-6C
