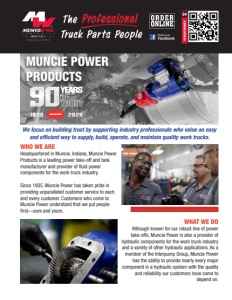

CATALOG NUMBER 24 We focus on building trust by supporting industry professionals who value an easy and efficient way to supply, build, operate, and maintain quality work trucks. WHO WE ARE Headquartered in Muncie, Indiana, Muncie Power Products is a leading power take-off and tank manufacturer and provider of fluid power components for the work truck industry. Since 1935, Muncie Power has taken pride in providing unparalleled customer service to each and every customer. Customers who come to Muncie Power understand that we put people first—ours and yours. WHAT WE DO Although known for our robust line of power take-offs, Muncie Power is also a provider of hydraulic components for the work truck industry and a variety of other hydraulic applications. As a member of the Interpump Group, Muncie Power has the ability to provide nearly every major component in a hydraulic system with the quality and reliability our customers have come to depend on. MUNCIE POWER PRODUCTS
POWER TAKE-OFFS TG SERIES • Compatible with Aisin, Allison, Detroit, Eaton, and Mack, and PACCAR transmissions • Versatile 6- and 8-bolt mechanical shift PTO rated for up to 285 lbs.ft. intermittent torque • Lightweight, reduced noise, and superior heat dissipation intermittent torque 82 SERIES CS6 AND CS8 SERIES • Compatible with Aisin, Allison, Eaton, and Mack transmissions • 6- or 8-bolt clutch shift PTO rated for up to 300 lbs.ft. intermittent torque with patented drag brake • Direct mount flanges with ability to rotate allow the pump to be positioned for maximum clearance A20 SERIES • Medium-duty, clutch shift PTO rated for Allison 3000 & 4000 RDS transmissions • Rated for up to 415 lbs.ft intermittent/ continuous torque • Rotatable pump flange allows for 30 unique positions • Compatible with the Muncie Start® • Compatible with Eaton, Mack, and PACCAR transmissions • 6-bolt integral air shift or 8-bolt mechanical shift PTO rated for up to 400 lbs.ft. intermittent torque • High torque capacity to meet demanding applications SH SERIES • Designed for Detroit DT12 transmissions • Integral hydraulic mount allows for larger pumps without support up to 60 lbs. • Solenoid-activated, mechanical shift PTO • Rated for up to 317 lbs.ft. intermittent/continuous torque P89 SERIES • Designed for Ford Super Duty trucks F-250–F-600 with Ford 10R140 10-speed transmissions • Rated for up to 261 lbs.ft. intermittent torque • Features patented noise abatement technology • Compatible with the Muncie Start® F20 SERIES • Designed for Ford Super Duty diesel trucks F-650–F-750 with Ford 10R140 10-speed transmissions • Rated for up to 261 lbs.ft. intermittent torque • Features patented noise abatement technology, plug & play wire harness, and RPM Control Module • Compatible with the Muncie Start® F22 SERIES • Compatible with ZF and PACCAR transmissions • Pneumatically shifted clutch pack PTO rated for up to 420 lbs.ft. intermittent torque • Internally pressure lubricated bearings P58 SERIES POWER TAKE-OFFS AND HYDRAULIC COMPONENTS • Medium-duty, clutch shift PTO for TorqueFlite HD/ZF PowerLine transmissions • Passenger-side (right-side) only on Ram applications • Rated for up to 265 lbs.ft. intermittent/continuous torque Z21 SERIES • Light-duty, clutch shift PTO for TorqueFlite HD/ZF PowerLine transmissions • Driver-side (left-side) only on Ram applications • Allows for direct mount pumps on 4×4 applications • Rated for up to 125 lbs.ft. intermittent/continuous torque Z25 SERIES EX DRIVE • Designed for the Allison 3000 & 4000 Series transmissions with a cooler or retarder allowing for larger gear or piston pumps to be direct mounted • The EX Drive can be paired with the A20, A30, A40, and A50 Series PTOs A40 SERIES • Heavy-duty, clutch shift PTO rated for Allison 3000 & 4000 RDS transmissions • Rated for up to 646 lbs.ft intermittent/ continuous torque • Rotatable pump flange • Compatible with the Muncie Start® • Compatible with Allison, Detroit, Eaton, Mack, and PACCAR transmissions • Heavy-duty, mechanical shift PTO rated for up to 500 lbs.ft. intermittent torque • Designed for use with high torque mechanical equipment
MI17-08-MWW (Rev. 07-26) DC POWER PACKS • LED PTO indicator light for easy dash mounting • Larger console options for more mounting space for extra switches, lights, etc. • Push-to-connect air fittings allow easy installation for the air controller (standard in valve and air installation kit) CONTROL CONSOLES • 5 size options for polyethylene tanks • 6 size options for steel tanks • Provides hydraulic power for light-duty applications COMPACT HYDRAULIC SYSTEMS, FILTERS, AND CONSOLES HYDRAULIC OIL FILTERS • Effective and economical means of maintaining system cleanliness • Optional filter indicator gauge is available to show when to replace the filter • Available in 6 sizes with high-pressure options • Single and dual pressure, pneumatic or manually controlled valve • Incorporated mechanical stroke limiter • Fits heavy-duty vehicles and prime movers D242 SERIES TIPPER VALVE V130 SERIES DIRECTIONAL CONTROL VALVE V080 SERIES DIRECTIONAL CONTROL VALVE • Constructed with high-grade iron castings and nickel-plated spools for use in high- pressure applications • Load checks and inlet relief valve are standard • Internal, oil-core design allows for higher flow rates and low pressure drops in a compact package • Tight tolerances and precision machining keep internal, spool leakages low VALVES PH SERIES PK SERIES PL SERIES • All cast iron construction with 4 ports and roller bearing design • Max. pressure: 3,000 PSI • Flow ranges: 13.8–30.3 GPM @ 1,000 RPM • All cast iron construction with 4 ports and roller bearing design • Max. pressure: 3,000 PSI • Flow ranges: 4.2–17.1 GPM @ 1,000 RPM • All cast iron bushing pump designed for low- to medium-flow systems • Max. pressure: 3,500 PSI • Flow ranges: 2.7–10.7 GPM @ 1,000 RPM • Porting available on both the side and rear for tight-fitting chassis hookups • Max. pressure: 3,500 PSI • Flow ranges: 2.7–12.8 GPM @ 1,000 RPM HYDRAULIC PUMPS S SERIES (HOIST PUMP) E SERIES (DUMP PUMP) • Heavy-duty, cast iron pump • Max. pressure: 2,500 PSI • Flow ranges: 22.5–27.6 GPM @ 1,000 RPM • Specifically designed to use on small single- or tandem-axle dump trucks • Max. pressure: 3,000 PSI • Flow ranges: 6.4–17.16 GPM @ 1,000 RPM PH SERIES (CLUTCH PUMP) WET LINE KITS WET LINE KITS AND TELESCOPIC CYLINDERS • Wide selection of applicable PTOs, pumps, and control consoles • Hose and fittings assemblies available in numerous configurations • Variety of tank materials, sizes, and configurations are available • Mounting style allows for increased capacity in the dump body • Available in 3- and 4-stage versions • One of the strongest and most stable cylinders on the market TRUNNION MOUNT CYLINDERS PIN-PIN CYLINDERS • One of the lightest cylinders on the market for greater payloads, less oil consumption, and faster dumping • Self-bleeding design for easier installation • Single head nut with no further adjustments needed METAL • Aluminum and steel tanks are built for continuous-duty applications with easy installation POLYETHYLENE TANKS • Polyethylene tanks are lightweight, corrosion-resistant, easy to install, and suitable for short-duty applications where heat buildup isn’t a concern
MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI July 15, 2026 (24Muncie Marketing 2026) Use the QR codes below to quickly navigate to key sections of the Muncie website and help you find the parts and information you need. Each QR code provides direct access to a specific area of the site for faster, more convenient browsing. If you have any questions or need assistance with Muncie products, please contact your local Midwest Wheel sales representative. We're here to help with all of your Muncie needs! MUNCIE HOMEPAGE WEBSITE Use the attached QR code to visit the Muncie homepage, where you can explore their full lineup of products, technical resources, catalogs, and the latest company news. Whether you're looking for a specific item or simply browsing our solutions, you'll find the information you need in one convenient location. PTO CROSSOVER & BUILDER Use this easy online tool to crossover PTO model numbers from Bezares, Metaris, and Chelsea to Muncie PTO models. Enter your current PTO to find the corresponding Muncie Power Take-Off. Muncie vs Chelsea, Bezares, and Metaris. PUMP & CYLINDER BUILDER Use this easy-to-use online tool to configure and build the pump and cylinder that best fits your application. CROSSOVER BUILDER PUMP BUILDER CYLINDER BUILDER
