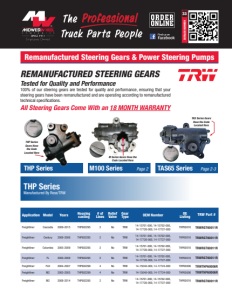

33TRW Reman Steering Gears and Power Steering Pumps

CATALOG NUMBER 33 Application Model Years Housing casting # of Lines Relief Valve Gear Type OEM Number OE Listing TRW Part # Freightliner Cascadia 2009-2015 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R Freightliner Century 2006-2006 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R Freightliner Columbia 2005-2009 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R Freightliner FL 2000-2009 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R Freightliner FLD 2004-2007 THP602299 4 No TRW 14-15040-000, 14-17724-000 THP60006 TRWTHP60006R Freightliner M2 2005-2005 THP602299 4 No TRW 14-15040-000, 14-17724-000 THP60006 TRWTHP60006R Freightliner M2 2008-2014 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R THP Series M100 Series TAS65 Series Remanufactured Steering Gears & Power Steering Pumps THP Series Gears Have the Code Located Here TAS Series Gears Have the Code Located Here M Series Gears Have the Code Located Here Page 2 Page 2-3 REMANUFACTURED STEERING GEARS Tested for Quality and Performance 100% of our steering gears are tested for quality and performance, ensuring that your steering gears have been remanufactured and are operating according to remanufactured technical specifications. All Steering Gears Come With an 18 MONTH WARRANTY THP Series Manufactured By Ross/TRW

Application Model Years # of Lines Relief Valve OEM Number OE Listing TRW Part # International 2000 1991-1999 4 Yes 1659881C91, 2020263C91, 3589106C91 M100PCL TRWM100PCLR International 4000 1990-2002 4 Yes 1659881C91, 2020263C91, 3589106C91 M100PCL TRWM100PCLR International 4000 2003-2009 2 No 3554373C91 M100PMT TRWM100PMTR International 5000 2003-2003 3 No 3558088C91 M100PMX TRWM100PMWR International 5000 2009-2009 4 No 3558087C91, 3885826C91 M100PMW TRWM100PMWR International 7000 2002-2006 3 No 3558088C91 M100PMX TRWM100PMWR International 7000 2003-2008 4 No 3558087C91, 3885826C91 M100PMW TRWM100PMWR International 7000 2004-2006 3 No 3501032C91, 3519043C91 M100PHE TRWM100PHER International 8000 1990-2002 4 Yes 1659881C91, 2020263C91, 3589106C91 M100PCL TRWM100PCLR International 8000 1996-1996 4/3 No 1657435C91 M100PAH TRWM100PAHR International 8000 2004-2010 3 No 3558088C91 M100PMX TRWM100PMWR International 8000 2005-2005 2 No 3554373C91 M100PMT TRWM100PMWR International 9000 1988-2003 4/3 No 1657435C91 M100PAH TRWM100PAHR International 9000 1996-2008 3 No 3558088C91 M100PMX TRWM100PMWR International 9000 1997-2006 3 No 3501032C91, 3519043C91 M100PHE TRWM100PHER M100 Series Manufactured By Sheppard THP Series, continued Seal Kit Description GP 8869 60010R Seal Kit Application Model Years Housing casting # of Lines Relief Valve Gear Type OEM Number OE Listing TRW Part # Freightliner D2 2005-2010 THP602295 4 No TRW 14-14741-000, 14-15331-000, 14-17725-000 THP60008 TRWTHP60008R Sterling 8000 2006-2006 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R Sterling 8000 2005-2010 THP602295 4 No TRW 14-14741-000, 14-15331-000, 14-17725-000 THP60008 TRWTHP60008R Sterling 9000 2006-2010 THP602295 2 No TRW 14-15701-000, 14-15702-000, 14-17726-000, 14-17727-000 THP60010 TRWRGT60011R Sterling 9000 2005-2010 THP602295 4 No TRW 14-14741-000, 14-15331-000, 14-17725-000 THP60008 TRWTHP60008R Volvo VN 2005-2014 THP602296 2 No TRW 20822514, 20511466 THP60009 TRWTHP60009R Volvo VN 2006-2014 THP602296 2 No TRW 20447236, 5026865 THP60004 TRWTHP60004R 12 Month Warranty 2

Seal Kit Description GP 8899 M100 Seal Kit (Bolt on Side Cover) GP 8898 M100 Seal Kit (Snap Ring on Side Cover) GP 8844 M100 Seal Kit (Snap Ring w/ L Seal) Seal Kit Description GP 8867 M100 Sector Shaft Only GP 8834 M100 Input Shaft Only M100 Series, continued Application Model Years # of Lines Relief Valve OEM Number OE Listing TRW Part # International 9000 2002-2005 4/3 No 1664770C91 M100PAE TRWM100PAER Kenworth C500 1997-2003 4 No — M100PEN TRWM100PENR Kenworth T400 1994-2005 4 No — M100PEN TRWM100PENR Kenworth T600 1994-2005 5/4 No — M100PLE TRWM100PLER Kenworth T800 1995-2004 5/4 No — M100PLE TRWM100PLER Kenworth T800 1995-2004 4 No — M100PEN TRWM100PENR Kenworth W900 1997-2003 4 No — M100PEN TRWM100PENR Freightliner Century 1999-2007 2 No 14-13063-000, 14-19270-000 M100PJD TRWM100PJDR Freightliner Columbia 1999-2007 2 No 14-13063-000, 14-19270-000 M100PJD TRWM100PJDR Freightliner FLD 1999-2007 2 No 14-13063-000, 14-19270-000 M100PJD TRWM100PJDR Freightliner ST120 1999-2007 2 No 14-13063-000, 14-19270-000 M100PJD TRWM100PJDR Peterbilt 357 1995-1995 4/3 No 10-02155, 10-02156, 10-02357, 10-02358 M100PAE TRWM100PAER Peterbilt 362 1995-1995 4/3 No 10-02155, 10-02156, 10-02357, 10-02358 M100PAE TRWM100PAER Peterbilt 375 1995-1995 4/3 No 10-02155, 10-02156, 10-02357, 10-02358 M100PAE TRWM100PAER Peterbilt 377 1995-1995 4/3 No 10-02155, 10-02156, 10-02357, 10-02358 M100PAE TRWM100PAER Peterbilt 378 1995-1995 4/3 No 10-02155, 10-02156, 10-02357, 10-02358 M100PAE TRWM100PAER Peterbilt 379 1996-2001 4/3 No 10-02155, 10-02156, 10-02357, 10-02358 M100PAE TRWM100PAER TAS65 Series Manufactured By Ross/TRW Gear Type Application Model Years Housing casting # of Lines Relief Valve OEM Number OE Listing TRW Part # Freightliner Century 1995-2007 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Freightliner Century 1997-2005 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65155 TRWRGT65157R Freightliner Century 1998-2005 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65157 TRWRGT65157R Freightliner Columbia 1999-1999 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Freightliner Columbia 2001-2005 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65157 TRWRGT65157R Freightliner Columbia 2001-2007 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65155 TRWRGT65157R 18 Month Warranty 3

TAS65 Series, continued Application Model Years Housing casting # of Lines Relief Valve OEM Number OE Listing TRW Part # Freightliner FC 1988-1997 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Freightliner FL 1995-2001 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65155 TRWRGT65157R Freightliner FL 2000-2003 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65157 TRWRGT65157R Freightliner FLC 1986-1995 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Freightliner FLD 1989-2003 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Freightliner FLD 2002-2002 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65157 TRWRGT65157R Freightliner M2 2007-2007 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Freightliner ST 2001-2005 TAS652262 2 No 14-13451-000/001, 14-13452-000/001 TAS65155 TRWRGT65157R Kenworth T2000 2006-2014 TAS652249 4 No TAS65218AEXCH, TAS65218RMAN TAS65218 TRWTAS65218R Kenworth T400 1987-2006 TAS652274 4 No TAS65090EXCH TAS65090 TRWRGT66001R Kenworth T400 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Kenworth T600 1987-2006 TAS652274 4 No TAS65090EXCH TAS65090 TRWRGT66001R Kenworth T600 2006-2014 TAS652249 4 No TAS65218AEXCH, TAS65218RMAN TAS65218 TRWTAS65218R Kenworth T600 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Kenworth T700 2006-2014 TAS652249 4 No TAS65218AEXCH, TAS65218RMAN TAS65218 TRWTAS65218R Kenworth T800 1987-2006 TAS652274 4 No TAS65090EXCH TAS65090 TRWRGT66001R Kenworth T800 2001-2001 TAS652296 4 No TAS65079EXCH TAS65079 TRWTAS65079R Kenworth T800 2005-2005 TAS652249 4 No TAS65218AEXCH, TAS65218RMAN TAS65218 TRWTAS65218R Kenworth T800 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Kenworth W900 1987-2006 TAS652274 4 No TAS65090EXCH TAS65090 TRWRGT66001R Kenworth W900 1997-2009 TAS652296 4 No TAS65079EXCH TAS65079 TRWTAS65079R Kenworth W900 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Lodal EVO 2000-2008 TAS652295 4 No 9962469 TAS65014 TRWRGT65166R Ottawa Spotter 1995-2011 TAS652295 4 No 90022655 TAS65102 TRWRGT66007R Peterbilt 362 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 365 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 367 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 375 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 377 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65009 TRWRGT66005R Peterbilt 377 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 378 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65009 TRWRGT66005R 4

TAS65 Series, continued Application Model Years Housing casting # of Lines Relief Valve OEM Number OE Listing TRW Part # Peterbilt 378 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 379 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65009 TRWRGT66005R Peterbilt 379 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 384 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 385 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 386 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 387 2000-2010 TAS652295 4 No 10-04006 TAS65014 TRWRGT65166R Peterbilt 387 2000-2011 TAS652295 4 No 10-04006 TAS65166 TRWRGT65166R Peterbilt 388 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 389 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Sterling 9000 2000-2002 TAS652295 4 No 14-17712-000, 14-10334-000, 14-10334-001, 14-15664-000 TAS65004 TRWRGT66007R Ford TAS652295 4 No F7HS 3N503 AA TAS65144 TRWRGT66007R Volvo VN 1998-2001 TAS652265 3 No 8082650 TAS65143 TRWRGT65199R Volvo VN 1998-2004 TAS652265 3 No 3098661, 20435348, 3180503 TAS65150 TRWRGT65199R Volvo VN 2003-2012 TAS652254 2 No 20447236, 20518924, 85137003 TAS65204 TRWRGT65210R Western Star 3000 1992-1992 TAS652295 4 No 38301-3409 TAS65014 TRWRGT65166R Western Star 4000 1989-2007 TAS652295 4 No 38301-3409 TAS65014 TRWRGT65166R Western Star 4000 1994-1999 TAS652295 4 No 38301-3409 TAS65166 TRWRGT65166R Peterbilt 362 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 365 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 367 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 375 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 377 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65009 TRWRGT66005R Peterbilt 377 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 378 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65009 TRWRGT66005R Peterbilt 378 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 379 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65009 TRWRGT66005R Peterbilt 379 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 379 2006-2006 TAS652262 4 No 14-12965-000 TAS65129 TRWRGT65129R Peterbilt 384 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R 5

Application Model Years Housing casting # of Lines Relief Valve OEM Number OE Listing TRW Part # Peterbilt 385 1988-2010 TAS652292 4 No 10-02379, 10-02428, 10-02458, RGT66005 TAS65024 TRWRGT66005R Peterbilt 386 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 387 2000-2010 TAS652295 4 No 10-04006 TAS65014 TRWRGT65166R Peterbilt 387 2000-2011 TAS652295 4 No 10-04006 TAS65166 TRWRGT65166R Peterbilt 388 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Peterbilt 389 2006-2014 TAS652248 4 No TAS65219EXCH, TAS65219RMAN TAS65219 TRWTAS65219R Sterling 9000 2000-2002 TAS652295 4 No 14-17712-000, 14-10334-000 TAS65004 TRWRGT66007R Sterling TAS652295 4 No F7HS 3N503 AA TAS65102 TRWRGT66007R Volvo VN 1998-2001 TAS652265 3 No 8082650 TAS65143 TRWRGT65199R Volvo VN 1998-2004 TAS652265 3 No 3098661, 20435348, 3180503 TAS65150 TRWRGT65199R Western Star 3000 1992-1992 TAS652295 4 No 38301-3409 TAS65014 TRWRGT65166R Western Star 4000 1989-2007 TAS652295 4 No 38301-3409 TAS65014 TRWRGT65166R Western Star 4000 1994-1999 TAS652295 4 No 38301-3409 TAS65166 TRWRGT65166R TAS65 Series, continued Seal Kit Description GP 8101 Complete Seal Kit Fits All TAS65 Gears GP 8800 Input Shaft Seal Kit for TAS40, 55, 65, 85 6 POWERING STEERING FLUID POWER STEERING STOP LEAK ▪ Guaranteed to stop seal leaks ▪ Stops rack and pinion problems ▪ Your results will be immediate and long lasting PN Size Notes LUC10442 16 oz W/ Conditioners LUC10824-6 1 Qt ▪ Extends life of pumps, rack and pinion gears, seals, cylinders and valves ▪ Improves steering response and feel ▪ Compatible with all power steering systems and fluids, petroleum or synthetic ▪ Stops fading and foaming in high performance situations PN Size LUC10008 12 oz. LUC10011 Quart

STEERING GEAR INSTALLATION PROCEDURE Installation Procedures for TAS & THP Series Poppet (Axle Stop) Adjustment Use the following instruction to set the axle stops on your steering gear and ensure proper operation. 1. Install steering gear on vehicle. 2. Install pressure and return lines. 3. Install lines to slave gear (if applicable). 4. Install Pitman arm on sector shaft lining up timing marks on arm & shaft. 5. Install steering wheel yoke and secure. 6. Top off power steering reservoir to “full”. 7. Lift front axle off the ground. 8. Start engine, turn wheel to stops to bleed air from system - check power steering fluid level. 9. Turn steering wheel to the right and left to the axle stops. Some effort will be required to turn wheels to axle stops, this will set poppets. TAS Series Manufactured By Ross/TRW THP Series Manufactured By Ross/TRW M Series - Series 1 Manufactured By Sheppard Poppet (Axle Stop) Adjustment Use the following instruction to set the axle stops on your steering gear and ensure proper operation. 1. Install steering gear on vehicle. 2. Install all pressure and return lines. 3. Fill power steering reservoir to “full” mark. 4. Attach Pitman arm on sector shaft lining up timing marks on sector shaft and Pitman arm. 5. Install steering wheel yoke and secure. 6. Start engine, recheck fluid level. 7. Turn steering wheel in the direction that you are trying to adjust. 8. Locate which plunger you need to adjust and turn the plunger out while someone holds the wheel in the direction that you are trying to adjust to. 9. The plunger is located in a ¼-inch hole in the head between two of the four bolts that hold the bearing cover on the head. 10. Using a screwdriver, adjust the plunger out (counter clockwise) so the wheel will go to the stop. 11. This will adjust one of the stops, the other is done with the plunger at the opposite end of the gear with the same procedure as above. 12. Be careful not to turn the plunger out past the surface of the head as it could blow out with severe force. Do not use these procedures to adjust 3 Series gears. M Series - Series 3 Manufactured By Sheppard Poppet (Axle Stop) Adjustment Use the following instruction to set the axle stops on your steering gear and ensure proper operation. 1. Install steering gear on vehicle. 2. Install pressure and return lines. 3. Install lines to slave gear (if applicable). 4. Fill power steering reservoir to full mark. 5. Attach Pitman arm on sector shaft lining up timing marks on sector shaft and Pitman arm. 6. Install steering wheel yoke and secure. 7. Lift front axle off the ground. 8. Start engine, recheck fluid level. 9. Turn steering wheel to the right and left to the axle stops. Some effort will be required to turn wheels to stops. 7

8 Steering Gears Common P/N QX HD P/N Common Application M80SAW QX QXG-80SAW INTERNATIONAL HD94PAH QX QXG-94PAH INTERNATIONAL M100PAH QX QXG-100PAH INTERNATIONAL M100PCL QX QXG-100PCL INTERNATIONAL M100PHE QX QXG-100PHE INTERNATIONAL M100PMT QX QXG-100PMT INTERNATIONAL M100PRZ QX QXG-100PRZ PETERBILT | KENWORTH THP60004 QX QXG-60004 VOLVO THP60006 QX QXG-60006 FREIGHTLINER THP60008 QX QXG-60008 FREIGHTLINER | VOLVO THP60010 QX QXG-60010 FREIGHTLINER | STERLING TAS40042 QX QXG-40042 INTERNATIONAL TAS65004 QX QXG-65004 FREIGHTLINER TAS65024 QX QXG-65024 PETERBILT TAS65079 QX QXG-65079 KENWORTH TAS65090 QX QXG-65090 KENWORTH TAS65155 QX QXG-65155 FREIGHTLINER TAS65218 QX QXG-65218 KENWORTH TAS65219 QX QXG-65219 PETERBILT | KENWORTH TAS85142 QX QXG-85142 FREIGHTLINER TAS85145 QX QXG-85145 KENWORTH XD120PAH1 QX QXG-120PAH EXTREME DUTY • Steering Pumps • Steering Gears Steering Gears • Fuel Pumps Fuel Pumps and Tandem Pumps • • All new! • No core! Fuel Pumps Common P/N QX HD P/N Common Application 1939435PE QX QXF-1040 PACCAR MX 23532981 QX QXF-956 DETROIT DIESEL 2445110500 QX QXF-929 MACK 3848611 QX QXF-1703 CATERPILLAR POWER STEERING PUMPS Common P/N QX HD P/N EV221615R101 QX QX-375-1 EV181618L101 QX QX-375-13 EV221615L101 QX QX-375 EV181615R101 QX QX-375-7 EV221618L101 QX QX-375-2 PS221615L116 QX QX-583 14-12657 QX QX-436 EV251615R101 QX QX-375-6 EV181615L101 QX QX-375-5 EV251615L101 QX QX-375-4 PS252415L103 QX QX-573-7 1663204C91 QX QX-336 PS251615L102 QX QX-539-2 EV282415R101 QX QX-375-9 PS282816R102 QX QX-539-5 PS221615L103 QX QX-573-4 PS322418R103 QX QX-718-2 14-12657-001 QX QX-436D ZF7674955344 QX QX-257-2 2010412C91 QX QX-484 TANDEM PUMPS Common P/N QX HD P/N Common Application ZF8693974672 QX QX-2020-5 VOLVO | MACK ZF8695974635 QX QX-2020B VOLVO | MACK 1885524PE QX QX-783-1 PACCAR

DY 89484 Freightliner: 4004933 Peterbilt: 3102888 Kenworth: 4004933 DY 89419 Freightliner: 0127425000 DY 89489 Detroit Diesel: 1687801C91 DY 89479 Freightliner: 2178938 Peterbilt: 2178938 Kenworth: 2178938 DY 89482 Freightliner: 3934823 DY 89478 Freightliner: 3937553 DY 89488 Freightliner: 21333544 Peterbilt: 1333542 DY 89485 Freightliner: 1382514 Peterbilt: 1382514 Kenworth: 1900642 DY 89930 Cummins: 5270678 DY 89480 Freightliner: 1600649 DY 89481 Freightliner: 3936213 Peterbilt: 3945527 Kenworth: 3976831 DY 89473 Cummins: 3973819 DY 89490 Freightliner: 3957433 Kenworth: 3957433 DY 89436 Freightliner: 0127846000 DY 89418 Freightliner: 3400885 Peterbilt: 3680194 Kenworth: 3400885 DY 89440 Freightliner: N/A Peterbilt: 3682946 Kenworth: 3682946 Mack: 3682946 DY 89449 Mack: 87GB41A DY 89447 Freightliner: 2002279 Peterbilt: 2002279 Kenworth: 2002279 DY 89421 Cummins: 3681240, 4059202 DY 89417 Detroit Diesel: 23521020, 23526034, 23533015 DY 89439 Caterpillar: 2117895 DY 89457 Volvo: 21404578 DY 89455 910552 DY 89441 Freightliner: DCO19558 DY 89458 Volvo: 20935521, 21422765 DY 89448 Freightliner: 3104149, International/Navistar: 3104149, 3682683 Kenworth: 3104149, 3682683, Mack: 3682683 Peterbilt: 3104149, 3682683, Volvo:3104149, 3682683 DY 89477 Volvo: 21568413, 21454379 DY 89935 Volvo: 20860873, 21417563, 21461221, 21714847 HEAVY DUTY AUTOMATIC BELT TENSIONERS Will replace 89498 tensioner for pre 2017 DD15/DD13 engines and the 89498A tensioner for post 2017 applications. 89498 - Detroit Diesel: A4722000470, A4722000570, AE4722000270, EA4722000270, EA4722000570, EA4722001070 Freightliner: A4722000170, A4722000270, EA4722000470, EA4722000970 Two Piece DD13 / DD15 Tensioner - DY 89947 ▪ Unique two-piece design ▪ 500,000 VIO ▪ Fits all model years of DD13 / 15 ▪ OE tensioner “trouble prone” ▪ Easier to install than OE tensioner ▪ Takes half the time to install than competitor's product ▪ Longer lasting than OE design ▪ Less down time ▪ Fits all fan clutch designs REINVENTED TENSIONER NOW A TWO PIECE DESIGN, MADE FOR EASY INSTALLATION 9

DUT Multipurpose High Temperature Hose Universal Truck / Fleet Application Hose Size Inch Max. Working Pressure P/N GX DUT-10X250RL 1/2 1000 GX DUT-12X250RL 5/8 750 Most common fitting: JIC 37° Female Swivel. GX UT-JCFX**** - Confirm hose & thread size for application 1 Wire, 1 Fabric Your Complete HYDRAULIC HOSE SOURCE STEERING PUMP GASKET P/N PA1131451 Steering Pumps do NOT include mounting gaskets Heavy Duty Poly-V Serpentine Belts Poly-V Serpentine Belts ▪ Idler/Tensioner Pulleys ▪ Automatic Belt Tensioners ▪ Higher performance construction over conventional light duty belts that meet the higher torque and power pulse requirements of heavy-duty applications ▪ Engineered with high-grade EPDM compounds to resist the heat and harsh environments of heavy-duty applications ▪ Specially treated cords within the belt resist stretching and ensure length stability Heavy Duty Idler/Tensioner Pulleys ▪ Manufactured from steel, powdered metal, and/or engineered polymer materials to resist wear under harsh environments ▪ Dual permanently lubricated sealed bearings and retainers to provide long life despite the shock loads of heavy-duty applications Heavy Duty Automatic Belt Tensioners ▪ Engineered for higher torque and power pulses exerted by heavy-duty vehicles ▪ Reinforced heavy-duty cast aluminum body and arms for strength and durability ▪ Rugged pulleys with dual permanently lubricated bearings for long lasting service ▪ Patented “Flat Spring” design In the Heavy-Duty market, no other company is trusted more by original equipment manufacturers than Dayco. Major engine and truck manufacturers overwhelmingly choose Dayco belts and tensioners as original equipment. They know that reliability and durability are key factors when choosing suppliers for their vehicles and Cummins, John Deere, Caterpillar, Volvo, International and PACCAR all choose Dayco belts and tensioners as original equipment. 10

Power Steering Pump Installation Procedure FAILURE TO FOLLOW THESE INSTALLATION PROCEDURES CAN VOID THE WARRANTY 1 Disconnect hydraulic lines from power steering pump assembly Note: MARK if needed hydraulic lines 1 PRESSURE/ OUTLET 2 RETURN / INLET 3 BYPASS (IF REQUIRED) Inspect all hydraulic oil lines and fittings condition for re-use. Clean all hydraulic lines Replace fitting o-rings and or washers Gravity drain as much oil as can be removed into a clean container and inspect oil for contamination. 2 REMOVE ENTIRE PUMP ASSEMBLY FROM VEHICLE 2A PULLEY TYPE PUMPS ONLY Remove pulley with appropriate puller Do not drive pump shaft out of pulley 2B GEAR DRIVE PUMPS ONLY Remove gear assembly from pump Use care when removing hardware securing gear, so hardware can be reused. Inspect engine pump drive gear for wear or damage 2C DIRECT DRIVE PUMP ONLY Inspect coupler assembly for wear or damage Inspect engine accessories drive for wear or damage 3 POWER STEERING CANISTER 3A TOP MOUNTED CANISTERS Remove canister with care not to damage canister assembly Remove filter element in canister assembly Clean and inspect canister for re-installation onto replacement pump assembly Install new replacement filter assembly into canister Re-install canister onto replacement pump assembly with new o-rings or canister mounting gaskets 3B INTEGRAL POWER STEERING CANISTER ONLY Note canister position on pump assembly Remove canister with care not to damage canister assembly Remove filter element in canister assembly Clean and inspect canister for re-installation onto replacement pump assembly Install new replacement filter assembly into canister Re-install canister onto replacement pump assembly with new o-rings or canister mounting gaskets Continued on back... 11
