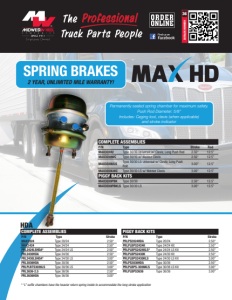

CATALOG NUMBER 36 COMPLETE ASSEMBLIES P/N Type Stroke Rod MAX3030U Type 30/30 Universal w/ Clevis; Long Push Rod 2.50" 12.5” MAX3030WC Type 30/30 w/ Welded Clevis 2.50" 12.5” MAX3030ULS Type 30/30 LS Universal w/ Clevis; Long Push Rod 3.00” 12.5” MAX3030LWC Type 30/30 LS w/ Welded Clevis 3.00" 12.5” PIGGY BACK KITS MAX3030PBK Type 30/30 2.50" 12.5” MAX3030PBKLS Type 30/30 LS 3.00" 12.5” PIGGY BACK KITS P/N Type Stroke PRLPS2024HDA Type 20/24 2.50" PRLPLBPS2424K Type 24/24 Kit 2.50" PRLPLBPS2424KLS* Type 24/24 LS Kit 2.50" PRLPLBPS2430K Type 24/30 Kit 2.50" PRLPLBPS2430KLS Type 24/30 LS Kit 3.00" PRLPS3036HDA Type 30/36 2.50" PRLPLBPS-3036KLS Type 30/36 LS Kit 3.00" PRLPLBPS3636 Type 36/36 3.00" COMPLETE ASSEMBLIES P/N Type Stroke MAX2024 Type 20/24 2.50" MAX2424 Type 24/24 2.50" PRL2424LSHDA* Type 24/24 LS 2.50" PRL2430HDA Type 24/30 2.50" PRL2430LSHDA* Type 24/30 LS 3.00" PRL3036HDA Type 30/36 2.50" PRLPLBTS3036LS Type 30/36 LS 3.00" PRL3636-2.5 Type 36/36 2.50" PRL3636HDA Type 36/36 3.00" HDA * “L” suffix chambers have the heavier return spring inside to accommodate the long stroke application Permanently sealed spring chamber for maximum safety. Push Rod Diameter: 5/8” Includes: Caging tool, clevis (when applicable) and stroke indicator SPRING BRAKES 2 YEAR, UNLIMITED MILE WARRANTY!
GOLD SEAL® CHAMBERS LIFE SEAL® ACTUATORS Isolated Chamber Prevents Spring Fracture Compression spring fracture is the major cause of all spring brake failures. Water, salt, oil and other contaminants attack and weaken the spring causing corrosion and ultimately, failure. Since the Life Seal chamber is completely sealed, contaminants cannot reach the power spring. The spring housing does not contain vent holes, external breather tubes, cage tool plugs or filters so the spring is isolated from the external environment. A special internal valve allows air to escape through the vehicles’ air system instead of through the housing. Life Seal Maximizes Output Force Most new spring rakes meet a minimum required output force. The ability for that spring to maintain output force is lost over time. Through technological innovation, Life Seal is the only actuator to maximize output force over an extended period. A unique patented power spring maintains high output force while increasing strength. The center tube guides the form-fit pressure plate, which stabilizes the spring coil through the full range of travel. This prevents contact with the spring housing and dramatically reduces coil clash. Delivering Reliability, Long Life and Value Durability and Reliability Mile After Mile • Reduce out-of-service time by adding extra push rod clearance to your brake chambers • Standard on some applications • More push rod force at or near the recommended readjust position compared to conventional brake chambers • 4 Year Over the Road/2 Year Severe Duty Warranty COMPLETE ASSEMBLIES P/N Type Stroke AK LCP3030 Type 30/30 2.50” AK LCP3030L Type 30/30 LS 3.00" 6 Year Unlimited Mile Warranty PIGGY BACK KITS P/N Type Stroke AK LPP3030K Type 30/30 Kit 2.50” COMPLETE ASSEMBLIES P/N Type Stroke AK GC3030 Type 30/30 2.50” AK GC3030L Type 30/30 LS 3.00” AK GC3030LCW Type 30/30, Precut 2.25” Welded Clevis 3.00” AK GC3030LR Type 30/30 LS, 14” Push Rod 3.00” AK GC3030R Type 30/30, 14” Push Rod 2.50” AK GC3030S2 Trailer Pre-Cut 6.89” w/ Clevis 2.50” AK GC3030S3 Trailer Pre-Cut 3.02” NO Clevis 2.50” PIGGY BACK KITS AK GP3030K Type 30/30 Kit 2.50” AK GP3030LK Type 30/30 LS Kit 3.00” SPRING BRAKE CHAMBERS • Up to 3x the power spring life of competitors • No Touch™ Power Spring increases height between coils by 33% vs. typical • T30/30 spring brake, helps prevent coil clash and corrosion • Epoxy coated power spring enhances corrosion protection • Lightest weight chamber in its class COMPLETE ASSEMBLIES P/N Type Stroke BW NT3030ELS-80TC Type 30/30 LS 3.00" BW NT3030ELS-WC Type 30/30 LS w/ Welded Clevis 3.00" BW NT3030STD-WC Type 30/30 w/ Welded Clevis 2.50" BW NT3030STD-78 Type 30/30 No Clevis 2.50” BW NT3030STD-120 Type 30/30 Intraax 2.50” PIGGY BACK KITS BW NT3030ELS-KIT Type 30/30 LS Kit 3.00" BW NT3030STD-KIT Type 30/30 Kit 2.50” EnduraSure™ Spring Brake 4 YEAR WARRANTY
SERVICE CHAMBERS P/N Type Stroke PRLSC09HDA Type 9 1.75” K7 KSC12 Type 12 1.75” K7 KSC16 Type 16 2.25” MAXSC20 Type 20 2.25” AK SC20 Type 20 2.25” MAXSC20LS Type 20 XL 3.00” MAXSC24 Type 24 2.25” PRLSC24LSHDA Type 24 XL 3.00” MAXSC30 Type 30 2.50” PRLSC30LSHDA Type 30 XL 3.00” PRLSC36HDA Type 36 3.00” AIR DISC BRAKE CHAMBERS CLEVIS P/N Type PRL30CL1/2HDA Clevis Forged 1/2” Pin 1/2-20 PRL30CLHDA Clevis Forged 1/2” Pin 5/8-18 PRL30CL5/8HDA Clevis Forged 5/8” Pin 5/8-18 PRLPL1/2PIN Clevis Pin 1/2” PRL5/8PINHDA Clevis Pin 5/8” RI R810019 Std Stroke Straight 5/8" RI R810021 Long Stroke Straight 5/8" RI R810025 Std Stroke 5/8" Offset AUT179.YK5012 For Type 9,12,16 Straight RI R810024 For Type 9,12,16 5/8 Offset DIAPHRAGMS P/N Type Stroke AUT179.DT9 Type 9 1.75” AUT179.DT12 Type 12 1.75” AUT179.DT16 Type 16 2.25” AUT179.DT20 Type 20 2.25” AUT179.DT24 Type 24/L 2.25” AUT179.DT20L Type 20L 2.50” AUT179.DT30 Type 30 2.50" AUT179.DT24XL Type 24XL 3.00” AUT179.DT30 Type 30 2.50” PRLD303HDA Type 30L 3.00” AUT179.DT36 Type 36 3.00” AIR DISC BRAKE CHAMBERS SERVICE CHAMBERS BW K028039 Bendix - Type 14 ADB Service Chamber - 2.25" Stroke BW K028226 Bendix - Type 16 ADB Service Chamber - 2.25" Stroke PRLPLSC16.D Aftermarket - Type 16 ADB Service Chamber - 2.5" Stroke BW K028022 Bendix - Type 18 ADB Service Chamber - 2.5" Stroke PRLPLSC18.D Aftermarket - Type 18 ADB Service Chamber - 2.5" Stroke BW K028225 Bendix - Type 20 ADB Service Chamber - 2.5" Stroke PRLPLSC20.D Aftermarket - Type 20 ADB Service Chamber - 2.5" Stroke BW K028252 Bendix - Type 24 ADB Service Chamber - 2.5" Stroke PRLPLSC24.D Aftermarket - Type 24 ADB Service Chamber - 2.5" Stroke SPRING BRAKES - UNHANDED - ROUND PORTS, STANDARD STROKE BW K042457 Bendix 16/24 Chamber - 2.25" Stroke MAX1624D MaxHD 16/24 Chamber - 2.5" Stroke BW K132352 Bendix 18/24 Chamber - 2.25" Stroke MAX1824D MaxHD18/24 Chamber - 2.5" Stroke BW K041960 Bendix 20/24 Chamber - 2.5" Stroke MAX2024D MaxHD 20/24 Chamber - 2.5" Stroke PRLP2424.D Aftermartket 24/24 Chamber - 2.5” Stroke SPRING BRAKES - CLOCKED - SQUARE PORTS, STANDARD STROKE WB 9253800210 Wabco 20/24 Chamber Left Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253800220 Wabco 20/24 Chamber Right Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253840270 Wabco 16/24 Chamber Left Handed - Clocked 45 Degrees - 2.25" Stroke WB 9253840280 Wabco 16/24 Chamber Right Handed - Clocked 45 Degrees - 2.25" Stroke WB 9253470390 Wabco 18/24 Chamber Unhanded - Clocked 45 Degrees - 2.5" Stroke WB 9253470400 Wabco 18/24 Chamber Left Handed - Clocked 45 Degrees - 2.5" Stroke WB 9253470410 Wabco 18/24 Chamber Right Handed - Clocked 45 Degrees - 2.5" Stroke DIAPHRAGM PRLPL-AD-16 Type 16 - Service Chamber Only PRLPL-AD-18 Type 18 - Spring Brake Only PRLPL-AD-20 Type 20 - Spring Brake Only P/N Type PRL006HDA Type 9, 12,16,20,24,24L, 24XL, 30 RETURN SPRINGS PUSH RODS P/N Type PRL034HDA Type 30 HOUSING P/N Type PRL020HDA Type 30
MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI April 9, 2026 (36Spring Brakes and Parts 2026) SINGLE SWIVEL END AIR BRAKE HOSE ASSEMBLIES ▪ Factory tested to ensure quality ▪ Meets or exceeds SAE J1402 - Type A ▪ Meets or exceeds DOT FMVSS No. 106 - Brake Hoses, 49 CFR 571.106 P/N Fittings Nominal Hose I.D Length TC 16120 1/4" Fixed - 1/4" Swivel 3/8" 20" TC 16124 1/4" Fixed - 1/4" Swivel 3/8" 24" TC 16128 1/4" Fixed - 1/4" Swivel 3/8" 28" TC 16130 1/4" Fixed - 1/4" Swivel 3/8" 30" TC 18124 3/8" Fixed - 3/8" Swivel 1/2" 24" TC 18126 3/8" Fixed - 3/8" Swivel 1/2" 26" TC 18128 3/8" Fixed - 3/8" Swivel 1/2" 28" TC 18130 3/8" Fixed - 3/8" Swivel 1/2" 30" TC 18132 3/8" Fixed - 3/8" Swivel 1/2" 32" TC 18140 3/8" Fixed - 3/8" Swivel 1/2" 40" TC 18142 3/8" Fixed - 3/8" Swivel 1/2" 42" TC 18148 3/8" Fixed - 3/8" Swivel 1/2" 48" TC 18160 3/8" Fixed - 3/8" Swivel 1/2" 60" TC 18172 3/8" Fixed - 3/8" Swivel 1/2" 72" TC 18182 3/8" Fixed - 3/8" Swivel 1/2" 82" 45° FEMALE DUAL SWIVEL AIR BRAKE HOSE ASSEMBLIES P/N Nominal Hose I.D Length TC 16145SW20 3/8" 20" TC 16145SW24 3/8" 24" TC 16145SW26 3/8" 26" TC 16145SW28 3/8" 28" TC 16145SW30 3/8" 30" TC 16145SW36 3/8" 36" TC 16145SW48 3/8" 48" TC 18145SW22 1/2" 22" TC 18145SW24 1/2" 24" TC 18145SW26 1/2" 26" TC 18145SW28 1/2" 28" TC 18145SW32 1/2" 32" TC 18145SW36 1/2" 36" TC 18145SW40 1/2" 40" TC 18145SW48 1/2" 48" ▪ Direct replacement hoses for all late model PACCAR, Peterbilt & Kenworth ▪ 45° female swivel fittings on both ends ▪ Available in 3/8" or 1/2" hose ID ▪ Rugged hose construction for maximum life: resistant to UV, ozone, fuels and commonly used road chemicals ▪ Operating temperature: -40°F to 200°F ▪ Operating Pressure to 225 psi ▪ Exceeds SAE J1402 - Type A, DOT FMVSS No. 106 - Brake Hoses, 49 CFR 571.106 MISCELLANEOUS P/N Type PRL30DBHDA Dust Boot 5/8” Push Rod AK HW5 Jam Nut 5/8-18 PRLRB-008LS Release Tool - All Except xx36 PRL30DCHDA Release Tool Plug - All Except xx36 BW K057632 EnduraSure Dust Plug PRL042HDA Type 30 Pressure Cap AK 9999143 Carriage Bolt & Nut P/N Type PRLPL9CK Type 9 PRL16CK-HDA Type 16 AK CB20S1 Type 20 PRL016HDA Type 24 AK CB30S1 Type 30 PRLPL053-SC Type 30 BW 800910 Type 30 Bendix EnduraSure CLAMPS TRUCK SPRING CAGE BOLT SOCKET P/N MEDLIS-49000 Quickly Unlocks Truck Air Brakes • Extra deep 3/4" socket loosens the cage bolt to unlock air brakes on trucks • Use with a 1/2" drive or 7/8" hex CAGING BRAKE CHAMBERS Garage Guru Ken Boyer walks you through the steps of caging brake chambers for heavy duty brake systems. https://youtu.be/XVmRCPSVQrM
