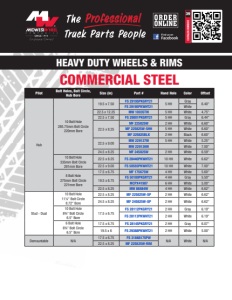

HEAVY DUTY WHEELS & RIMS CATALOG NUMBER 39 Pilot Bolt Holes, Bolt Circle, Hub Bore Size (in) Part # Hand Hole Color Offset Hub 10 Bolt Hole 285.75mm Bolt Circle 220mm Bore 19.5 x 7.50 FS 29195PKGRY21 5 HH Gray 6.40" FS 29195PKWHT21 White 22.5 x 12.25 MW 10035TW 5 HH White 4.75" 22.5 x 7.50 FS 29001PKGRY21 5 HH Gray 6.44" 22.5 x 8.25 MF 225825W 2 HH White 6.60" MF 225825W-5HH 5 HH White 6.60" MF 225825BLK 2 HH Black 6.60" 22.5 x 9.00 MW 229127W 5 HH White 5.25" MW 229126W White 7.00" 24.5 x 8.25 MF 245825W 2 HH White 6.59" 10 Bolt Hole 335mm Bolt Circle 281mm Bore 22.5 x 8.25 FS 28440PKWHT21 10 HH White 6.62" 22.5 x 9.00 FS 50593PKWHT21 10 HH White 7.00" 8 Bolt Hole 275mm Bolt Circle 221mm Bore 17.5 x 6.75 MF 175675W 4 HH White 5.60" 19.5 x 6.75 FS 50180PKGRY21 4 HH Gray 5.50" MCPX41987 6 HH White 5.00" 22.5 x 8.25 MW 88884W 4 HH White 6.62" Stud - Dual 10 Bolt Hole 11¼" Bolt Circle 8.72" Bore 22.5 x 8.25 MF 225825W-SP 2 HH White 6.62" 24.5 x 8.25 MF 245825W-SP 2 HH White 6.62" 10 Bolt Hole 8¾” Bolt Circle 6.5" Bore 17.5 x 6.75 FS 28112PKGRY21 2 HH Gray 6.19" FS 28112PKWHT21 2 HH White 6.19" 6 Bolt Hole 8¾” Bolt Circle 6.5" Bore 17.5 x 6.75 FS 28145PKGRY21 2 HH Gray 6.07" 19.5 x 6 FS 29388PKWHT21 2 HH White 5.00" Demountable N/A 17.5 x 6.75 FS 31868175PW N/A White N/A 22.5 x 8.25 MF 225825W-RIM COMMERCIAL STEEL
ALUMINUM Pilot Bolt Holes, Bolt Circle, Hub Bore Size (in) Part # Finish/Surface Treatment Outset Inset Max Load Hub 10 Bolt Hole 285.75mm Bolt Circle 220.1mm Bore 22.5 x 8.25 AL 881677 High Polish - Both Sides 6.6" 5.81" 7400 MF 225825A-BP Polished Both Sides AL 88167BLK Black MAX220864-1 Black AL 881671DB Dura-Bright® - Outside Polish AL 881672DB Dura-Bright® - Inside Polish MF 225825A-BPC Coated Aluminum - Polished Both Sides 22.5 x 9 AL 89U637 High Polish - Both Sides N/A 3.12" 10000 MF 2259.3A-BP Polished Both Sides AL 89U631DB Dura-Bright® - Outside Polish AL 89U647 High Polish - Both Sides 6.94" 5.99" 10000 MF 2259.7A-BP Polished Both Sides AL 89U641DB Dura-Bright® - Outside Polish 22.5 x 12.25 AL 822627 High Polish - Both Sides 0.56" N/A 12300 AL 823627 High Polish - Both Sides 3.88" N/A MF 2251225.3A-BP Polished Both Sides AL 823621DB Dura-Bright® - Outside Polish AL 824627 High Polish - Both Sides N/A 4.68" MF 2251225.5A-BP Polished Both Sides AL 824621DB Dura-Bright® - Outside Polish 22.5 x 14 FS 43142SP Standard Polish 2" N/A 12800 AL 84U647 High Polish - Both Sides MF 22514.2A-BP Polished Both Sides AL 84U642DB Dura-Bright® - Inside Polish AL 84U617 High Polish - Both Sides N/A 0" MF 22514.0A-BP Polished Both Sides 24.5 x 8.25 AL 98U637 High Polish - Both Sides 6.6" 5.77" 7400 MF 245825A-BP Polished Both Sides AL 98U631DB Dura-Bright® - Outside Polish AL 98U632DB Dura-Bright® - Inside Polish MF 245825A-BPC Coated Aluminum - Polished Both Sides 19.5 x 7.5RW AL 773627 High Polish - Both Sides 6.1" 5.23" 6700 10 Bolt Hole 225mm Bolt Circle 170.2mm Bore 19.5 x 6 AL 763291 Mirror Polish - Outside Only 5.35" 4.82" 4000 AL 763292 Mirror Polish - Inside Only 10 Bolt Hole 335mm Bolt Circle 281.2mm Bore 22.5 x 8.25 AL 886517 High Polish - Both Sides 6.6" 5.75" 8050 6 Bolt Hole 205mm Bolt Circle 160.3mm Bore 17.5 x 6 AL 664807 High Polish - Both Sides 5" 4.3” 4000 8 Bolt Hole 275mm Bolt Circle 221.1mm Bore 17.5 x 6.75 AL 663487 High Polish - Both Sides 5.55” 4.85” 5510 TMIXF175675PID Mirror Polish - Outside Only 19.5 x 6.75RW AL 765421 Mirror Polish - Inside Only 5.55” 4.84” 5000 AL 765422 Mirror Polish - Outside Only 8 Bolt Hole 6.5” Bolt Circle 4.77” Bore 17.5 x 6.75 AL 661401 Mirror Polish - Outside Only N/A 0” 6050
AUTOMOTIVE STEEL Bolt Pattern Size P/N Center Bore Offset Color mm in mm in mm in 4-100 4-4” 14 X 5.5 MCPX41448 54.1 2 1/8” 45 1 3/4” Black MCPX41442 59.1 2 5/16” Black 4-114.3 4-4 1/2” 15 X 6 MCPX41545 67.1 2 5/8” 45 1 3/4” Black 5-100 5-4” 17 X 6.5 MCPX41757 56.1 2 3/16” 40 1 9/16” Black 15 X 6 MCPX42553 65.4 2 9/16” 48 1 7/8” Black 16 X 6.5 MCPX43653 46 1 13/16” Black 17 X 7 MCPX43753 45 1 3/4” Black 5-114.3 5-4 1/2” 15 X 6 MCPX40709 71.5 2 13/16” 7 1/4” Black 15 X 6 MCPX42554 72 2 13/16” 39 1 9/16” Black 18 X 7 MCPX74855NT 67.1 2 5/8” 40 1 9/16” Black 5-115 5-4 1/2” 16 X 6.5 MCPX44655 70.5 2 13/16” 46 1 13/16” Black 5-127 5-5” 17 X 7 MCPX41753 71.5 2 13/16” 50 1 15/16” Black 6-127 6-5” 17 X 7 MCPX41762 78.1 3 1/16” 50 1 15/16” Black 6-139.7 6-5 1/2” 17 X 7.5 MCPX41768 78.7 3 1/8” 31 1 1/4” Silver 16 X 7 MCPX43668 78.1 3 1/16” 15 5/8” Black 6-180 6-7” 16 X 6 MCPX45660T 139 5 7/16” 109.5 4 5/16” Silver 8-165 8-6 1/2” 16 X 6.5 MCPX45477 117 4 5/8” 124 4 7/8” Gray 8-165.1 8-6 1/2” 16 X 6 MCPX45329 117 4 5/8” 125 4 15/16” Gray MCPX45304 125 4 15/16” 12 1/2” Gray KH X45460 125 4 15/16” 131 5 3/16” Gray 16 X 6.5 MCPX43689 117 4 5/8” 28 1 1/8” Black 16 X 7 MCPX45337 125 4 15/16” 6 1/4” Gray 17 X 6 MCPX42786 121 4 3/4” 136 5 3/8” Black 8-170 8-6 3/4” 16 X 6 MCPX45463 125 4 15/16” 136 5 3/8” Gray 16 X 7 MCPX45454 125 4 15/16” 7 1/4” Gray 8-180 8-7” 17 X 7 MCPX43786 124.1 4 7/8” 45 1 3/4” Silver 8-200 8-7 3/4” 17 X 6.5 MCPX41785 142 5 5/8” 141 5 9/16” Silver 8-210 8 1/4” 17 X 6.5 MCPX42784 154 6 1/16” 137 5 3/8” Gray 8-225 8 3/4” 19.5 X 6 MCPX41981 170 6 11/16” 136 5 3/8” Gray 10-225 10-6 3/4” 19.5 X 6 MCPX41912 170 6 11/16” 136 5 3/8” Gray MCPX41912W White
P/N Length Valve Hole SC TV-500 2" .625 SC TV-501A 1-1/2" .625 SC TV-570A 3-1/8" .625 SC TV-571A 3-3/8" .625 SC TV-572A 3-3/4" .625 SC TV-573A 4-3/8" .625 SC TV-574 5" .625 WITH 31° BEND HL TV-572F19 3-3/4" .625 SC TV-602HP HL TV-600-HPA SC TV-413 SC TV-413CH TRUCK VALVES FOR ALUMINUM TRUCK WHEELS Tubeless valves used in drop-center aluminum disc wheels with .625 valve hole. O-ring Seal Valves for Aluminum Truck Wheels (9.7 mm Valve Hole) SC TV-542 • Longer sealing life • Greater corrosion resistance • Larger sealing surface • Hex recess in base for easier installation • *Viton™ replacement grommet - G-550 • Grommet has better temperature range & tear resistance SC TV-553D #O-330L, O-Ring (TR-540 Series Valves) Clamp-in Truck and Bus Valves Used on both demountable and non-demountable rims. HL TV-572F19 For use on Accu-Lite™ Steel Wheels HL N-1147A 23° bend clamp-down valve for .625 valve hole. Bend allows clearance of brake drum for tire service Radial Commander Valve for 15" Disc Wheels P/N Length Valve Hole SC TV-412 7/8" .453 SC TV-413 1-1/4" .453 SC TV-414 1-1/2" .453 SC TV-415 1-1/4" .625 HL TV-415-OE 1-1/4" .625 SC TV-418 2" .453 SC TV-423 2-1/2" .453 SC TV-575A 1-1/8" .625 CHROME SC TV-413CH 1-1/4" .453 HIGH-PRESSURE TUBELESS TIRE VALVE HL TV-600-HPA 1-1/4" .453 SC TV-602-HP 2" .453 SC TV-801-HP 1-1/4" .625 UPGRADED STANDARD Aluminum Valve Stems Snap-In Tire Valve & Chrome Sleeve Tire Valves Grommet Seal Valves for Alcoa Truck Wheels (9.7 mm Valve Hole) Einky Valves P/N Bend Angle Effec. Length Valve Hole SC TV-6010 Str. 3/4" .453 Tank Valves P/N OAL Base Th. Hex Sz. SC TV-399 1-5/16" 1/8" NPT 7/16" SC TV-400 1-5-16" 1/4" NPT 9/16" SC TV-401 27/32" 1/8" NPT 7/16" Rim Hole Plug SC N-1012S Used to seal 5/8" rim hole when relocating valve P/N HEIGHT ANGLE LENGTH SC TV-542 1.25" - - SC TV-543 2.4" - - SC TV-543D 0.98" 60° 1.38" SC TV-543E 0.98" 75° 1.38" SC TV-545 3.5" - - SC TV-545D 0.98" 60° 2.6" HL TV-545E 0.98" 75° 2.6" SC TV-546D 0.98" 60° 3.35" P/N ANGLE LENGTH SC TV-509 90° 4.75" SC TV-510 90° 5.5" Length: 9/16" Valve Hole: .453" or .625" Tractor Front Wheel Valve SC TV-6008C Chrome Finish SC TV-6008 Brass Finish P/N HEIGHT ANGLE LENGTH SC TV-552 1.26" - - SC TV-553 2.4" - - HL TV-553C .93" 45° 1.43" SC TV-553D .98" 60° 1.38" SC TV-553E .98" 75° 1.38" SC TV-554D .98" 60° 1.94" SC TV-555D .98" 60° 2.6" Air Liquid Valves for Tractor & Road Grader Service SC TV-618A Length: 1-7/8" Valve Hole: .625" SC TV-618A-SS Length: 1-7/8" Valve Hole: .625" SC TV-618A SC TV-618A-SS Stainless Steel Clamp-In Valve HL N-1600 • Ford “F” Series Trucks with Dual Wheels • Alcoa Aluminum 16" • Front & Rear Wheels • Chrome Finish • .453 Low Profile Valve SC TV-575-HP Low profile with 1" E.L. Has grommets to fit either .453" or .625" diameter valve hole. Model Length Valve Hole SC TV-416 1-1/4" .453 or .625 Std Bore Clamp-In Valve Maximum inflation pressure 130 PSI. MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI September 28, 2026 3:09 PM (39HD Wheels and Rims2026)
